Idle Speed/Throttle Actuator - Electronic: Testing and Inspection

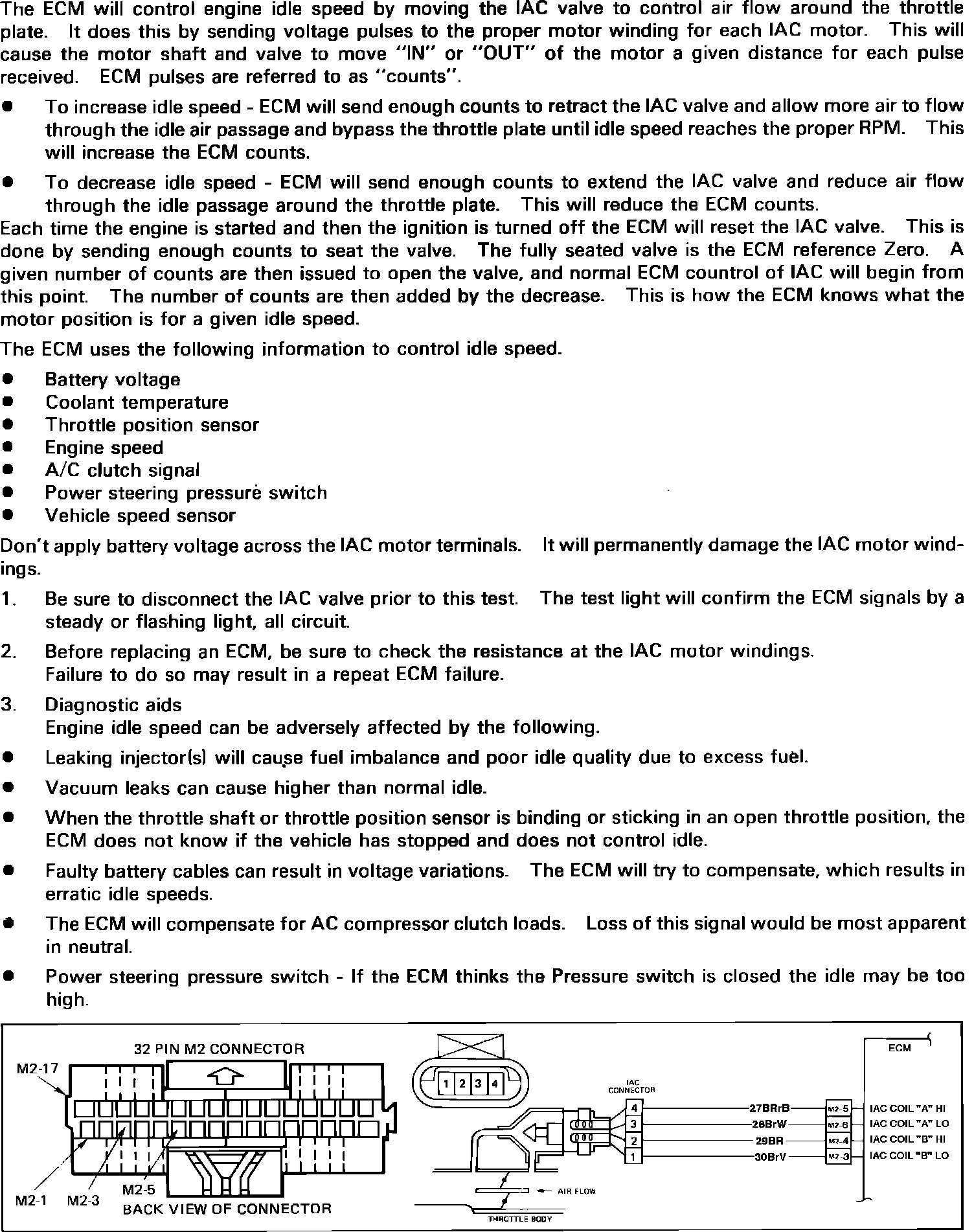

Fig. 151 Idle Air Control Chart:



Fig. 152 Idle Air Control Chart:
