Isuzu
>>
1988
>>
I-Mark L4-1471cc 1.5L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Diagrams
>>
Electrical Diagrams
>>
With Turbo
With Turbo

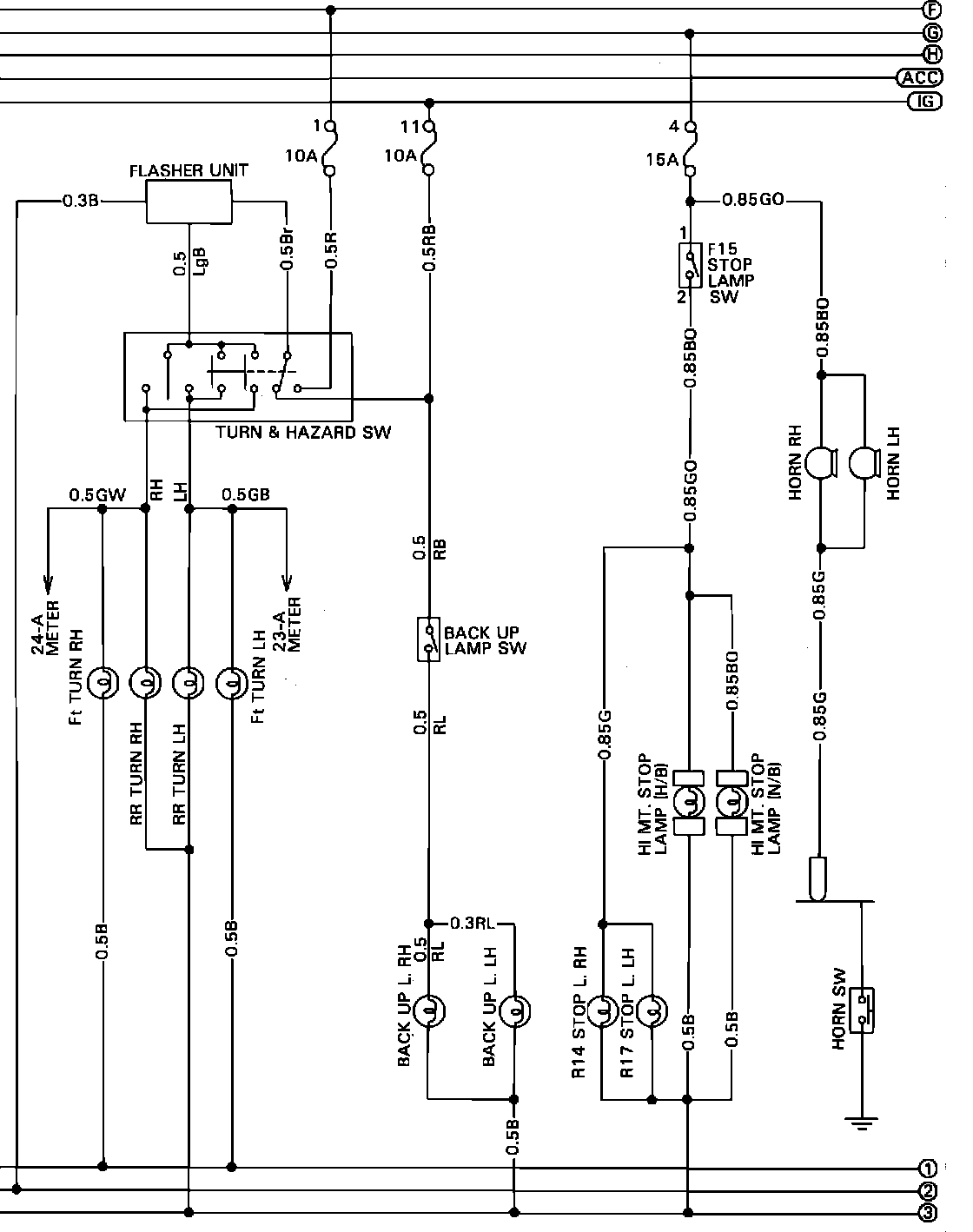

Hazard, Horn, Stop Light & Turn Signal Wiring Circuit. Turbo:
