Engine Compartment Reference Diagram--Turbo

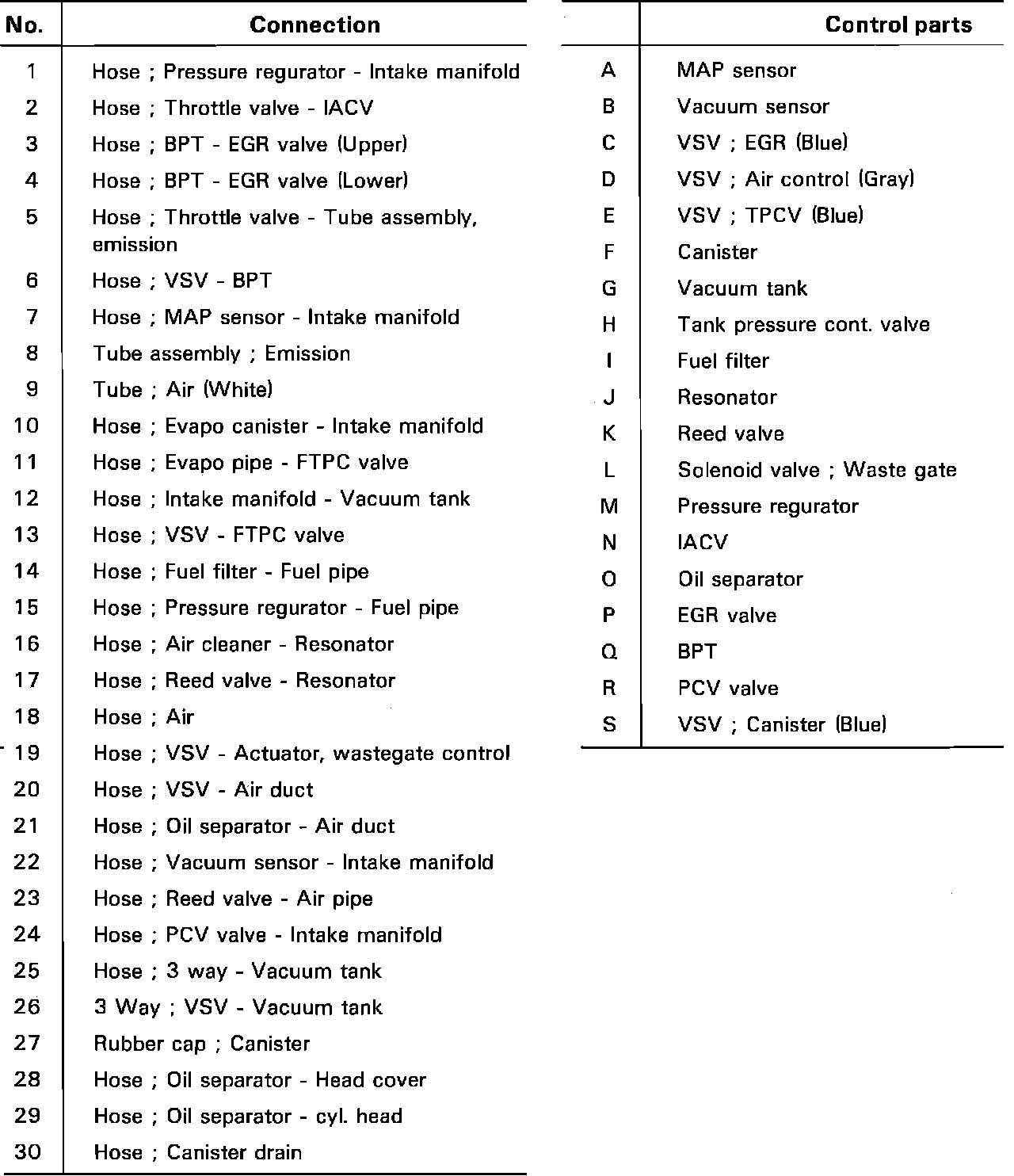

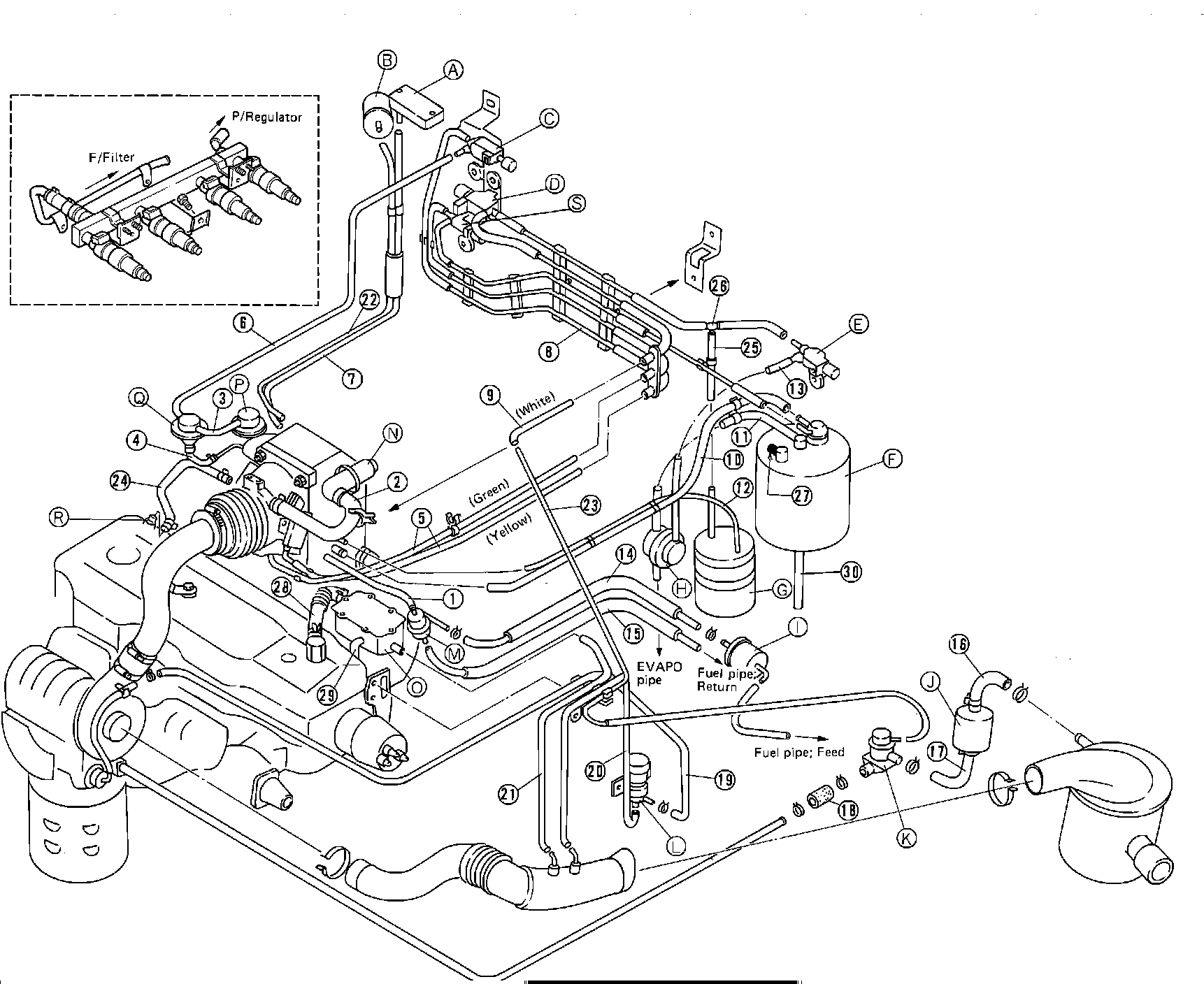

Fig. 105 Engine compartment reference diagram:



Fig. 105 Engine compartment reference diagram:
