Isuzu
>>
1988
>>
I-Mark L4-1471cc 1.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Temperature Gauge
>>
With Turbo
With Turbo

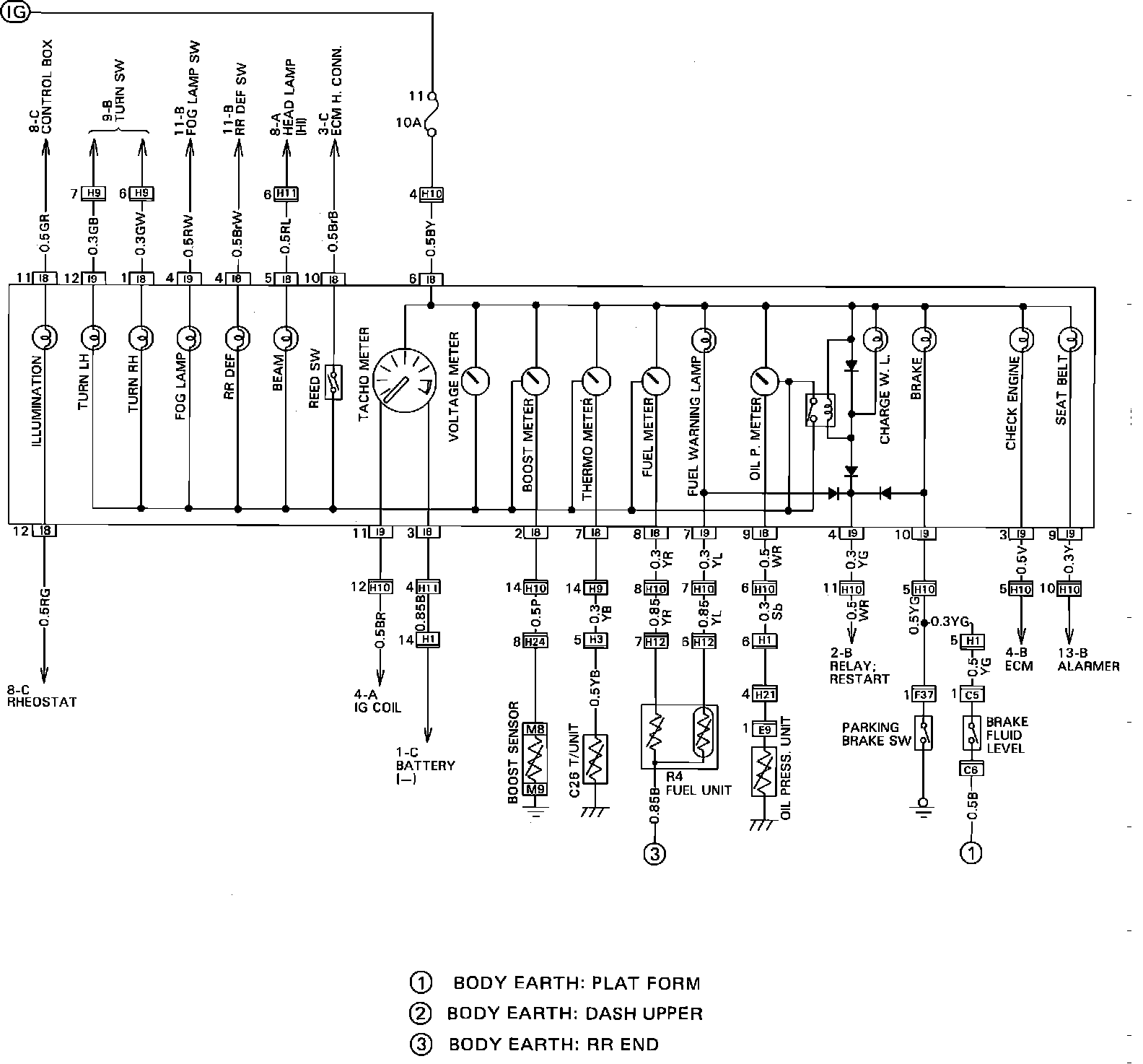

Combination Meter Wiring Circuit:
