Home >> Isuzu >> 1988 >> I-Mark L4-1471cc 1.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Door Lock Actuator >> Less Turbo

Less Turbo

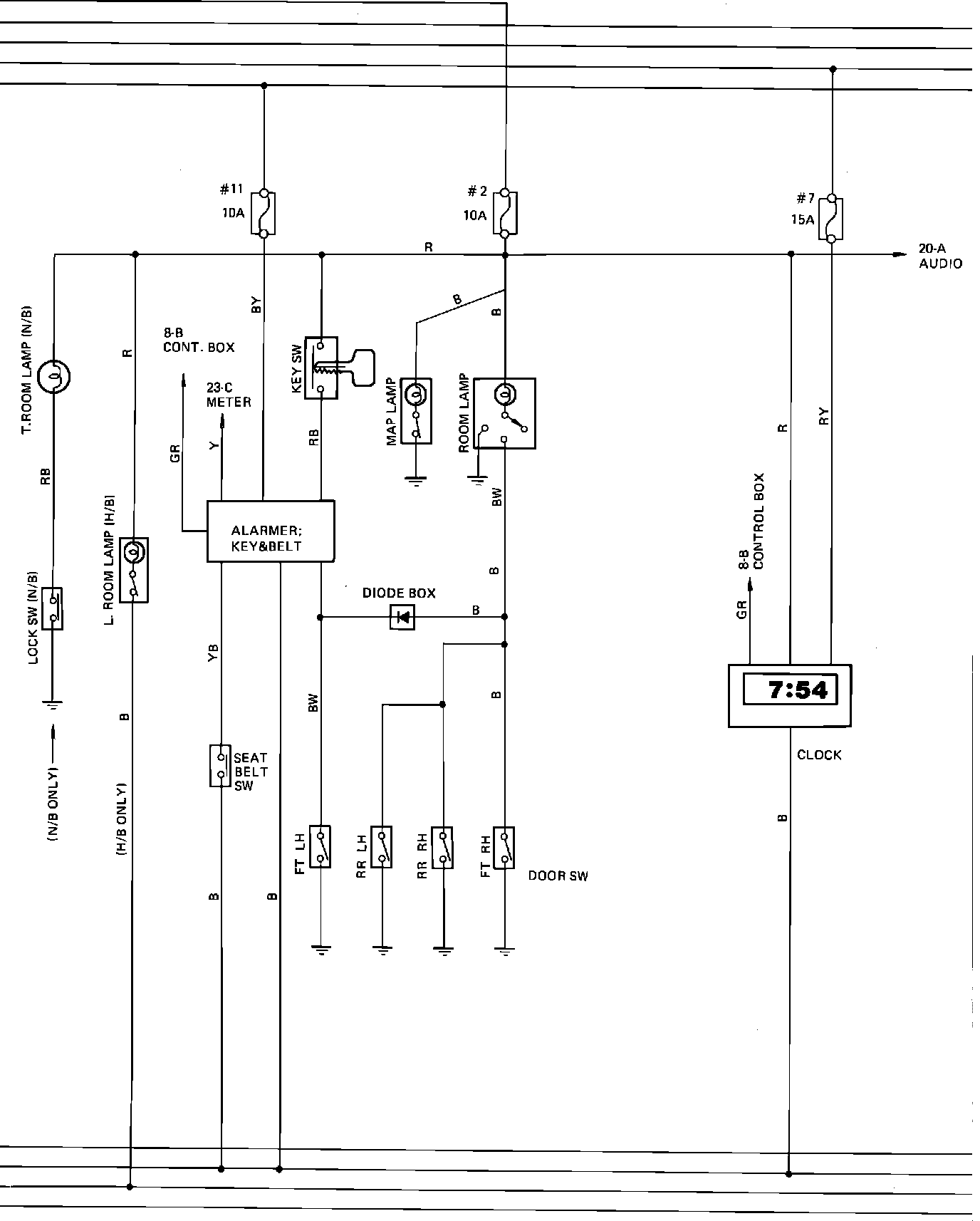

Interior Lights, Door Switch & Clock Wiring Circuit. Less Turbo:
