Heated Glass Element
>>
Less Turbo
Less Turbo

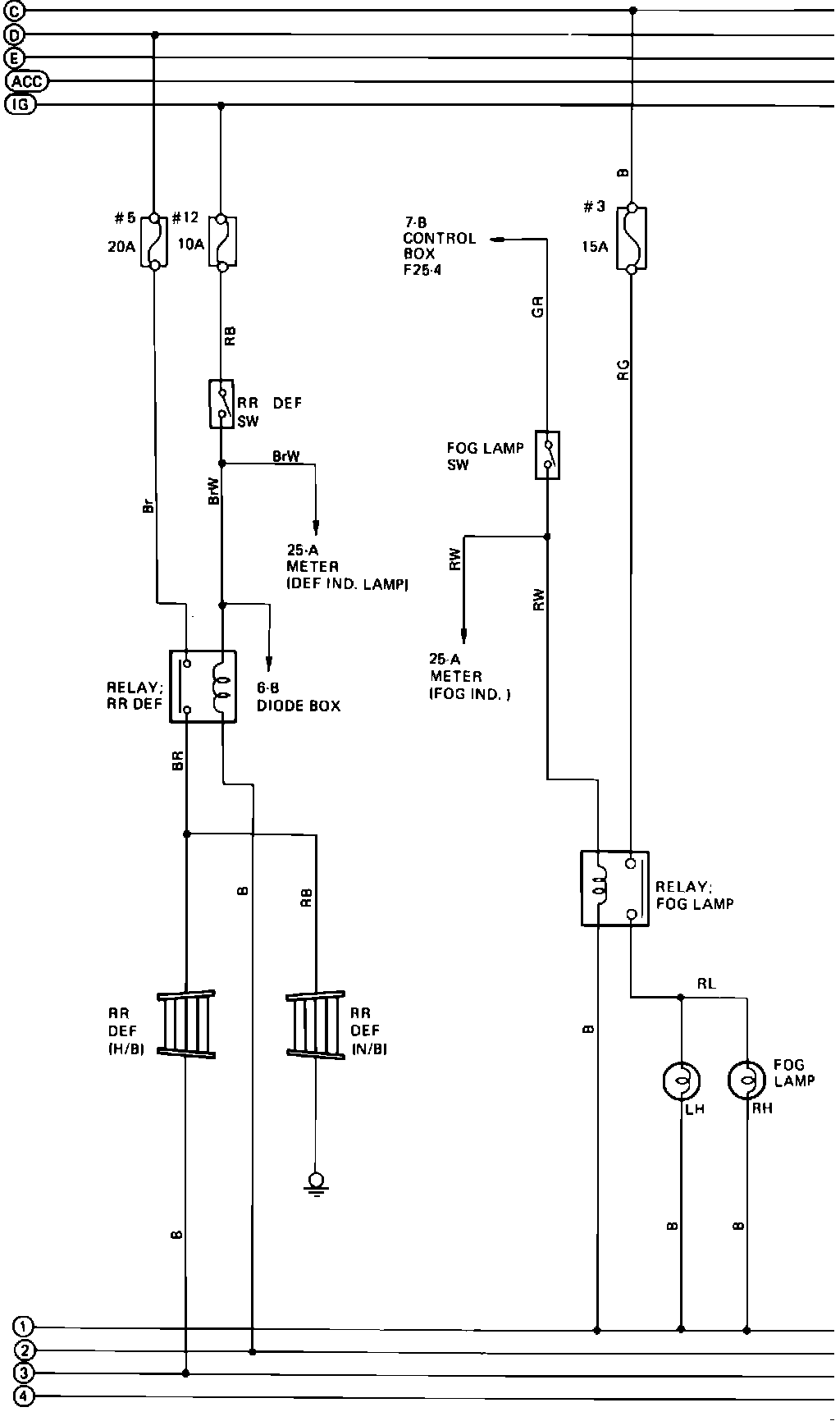

Rear Window Defogger & Fog Lamp Wiring Circuit. Less Turbo:
