Isuzu
>>
1988
>>
I-Mark L4-1471cc 1.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Computers and Control Systems
>>
Engine Control Module
>>
Less Turbo
Less Turbo

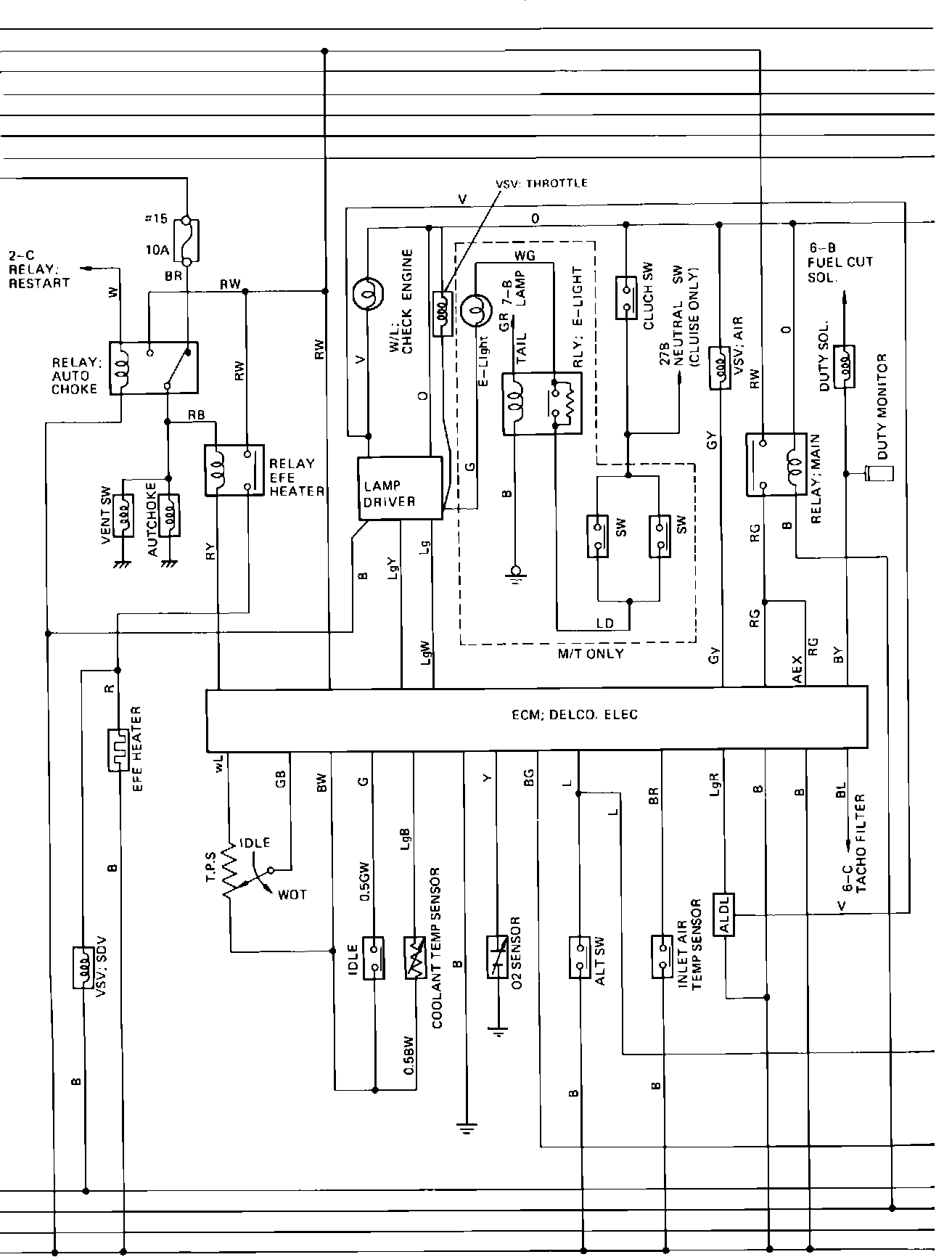

Electronic Control Module Wiring Circuit. Less Turbo:
