Home
>>
Isuzu
>>
1988
>>
I-Mark L4-1471cc 1.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Multi-Point Fuel Injection (Turbo Only)
Multi-Point Fuel Injection (Turbo Only)

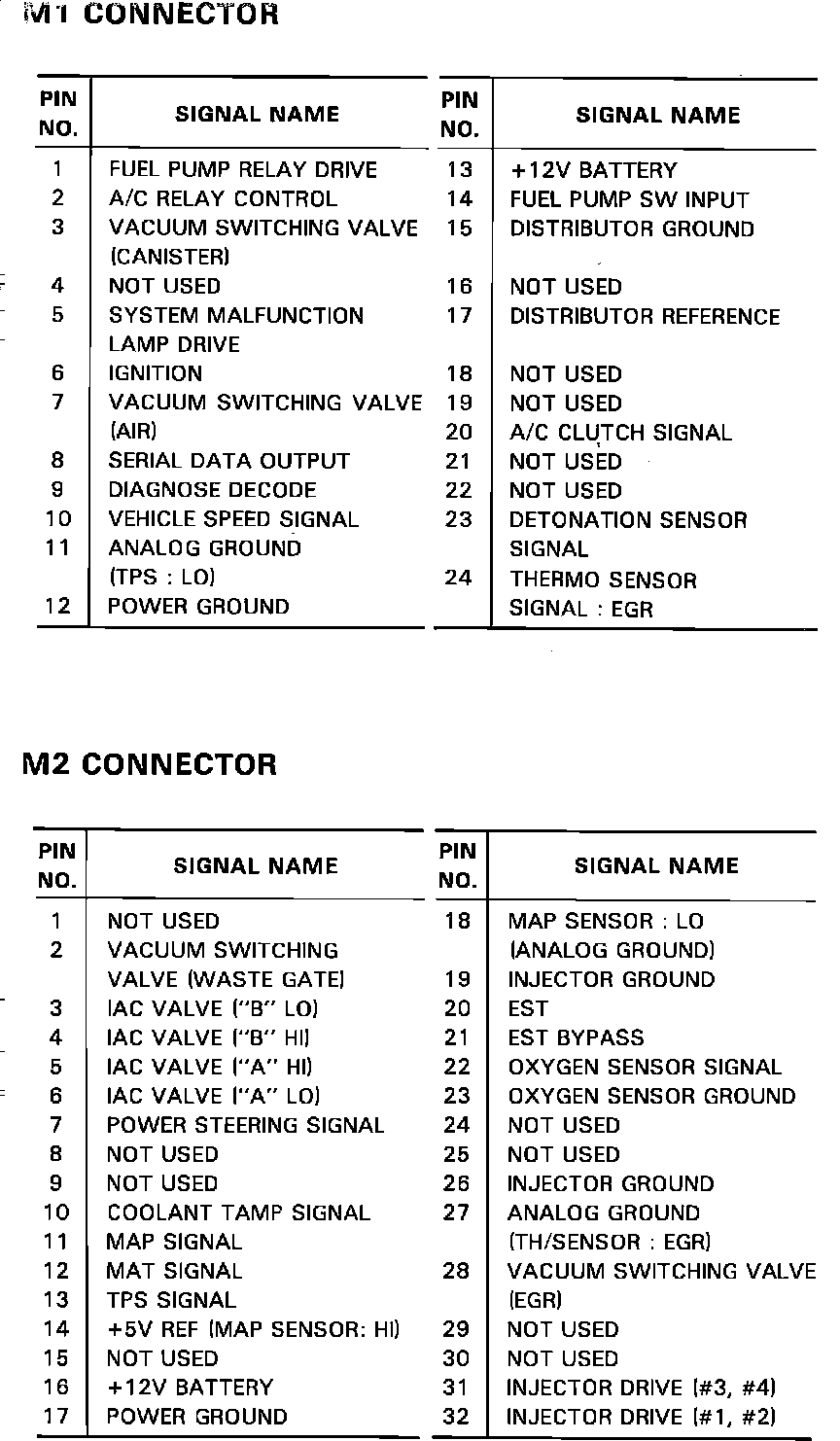

Fig. 115 ECM Connector ID:
