Home >> Isuzu >> 1988 >> I-Mark L4-1471cc 1.5L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Engine Control System >> DTC 25

DTC 25

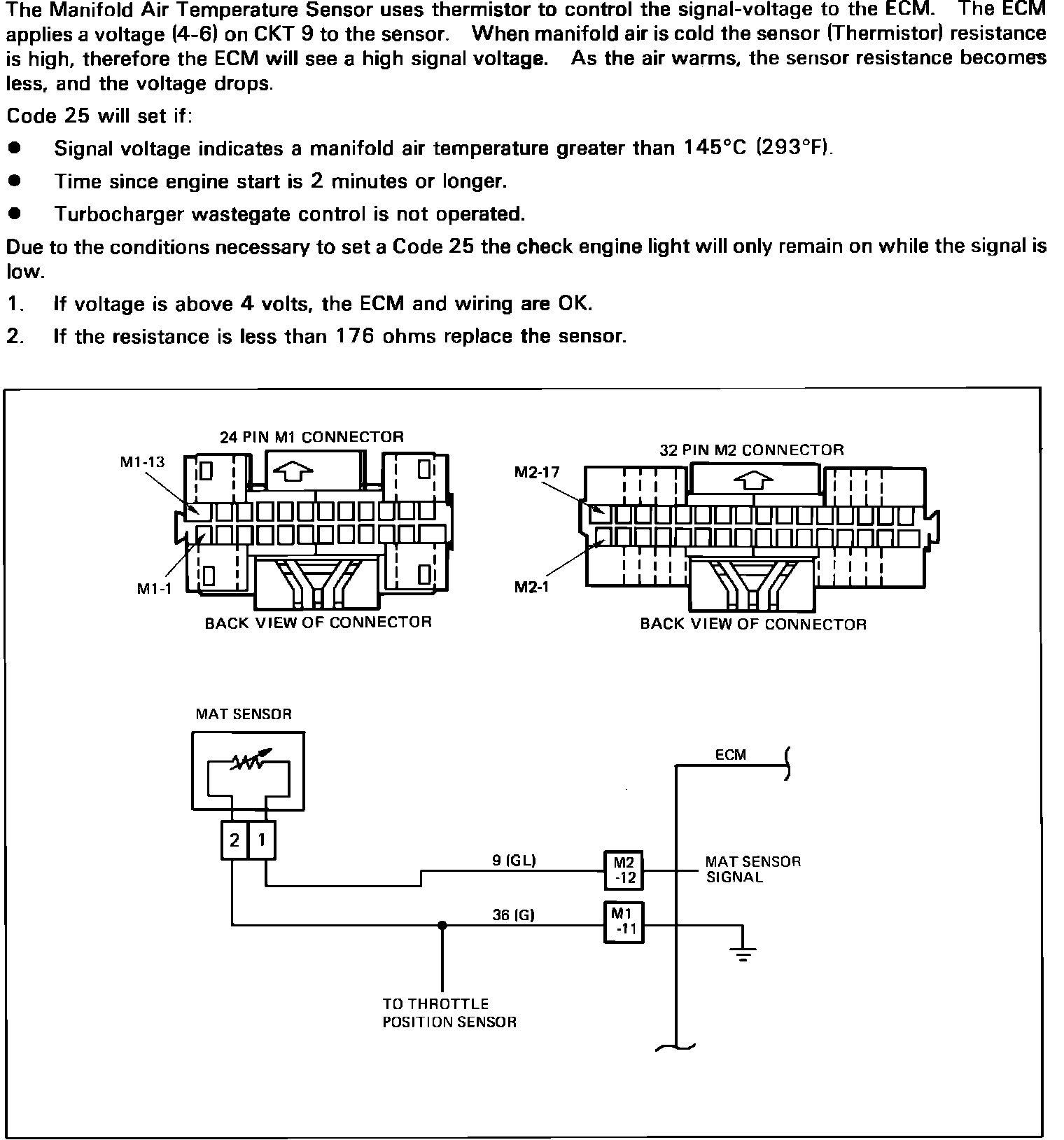

Fig. 132 Code 25 Manifold Air Temp Sensor (MAT) Voltage Low:



Fig. 133 Code 25 Manifold Air Temp Sensor (MAT) Voltage Low:
