Home >> Isuzu >> 1988 >> I-Mark L4-1471cc 1.5L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Engine Control System >> DTC 24

DTC 24

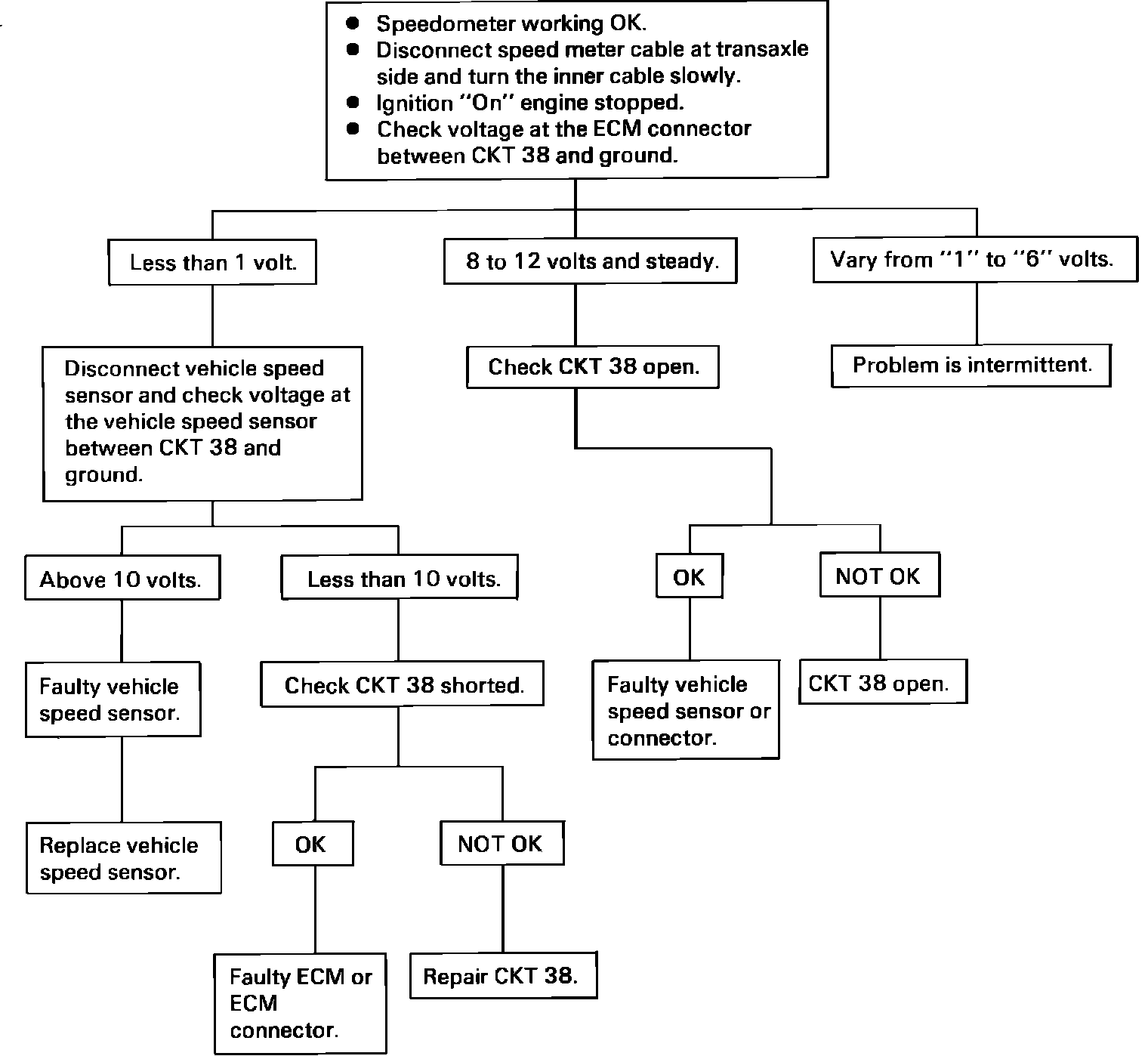

Fig. 130 Code 24 Vehicle Speed Sensor:

Fig. 131 Code 24 Vehicle Speed Sensor:
