DTC 22
DTC 22

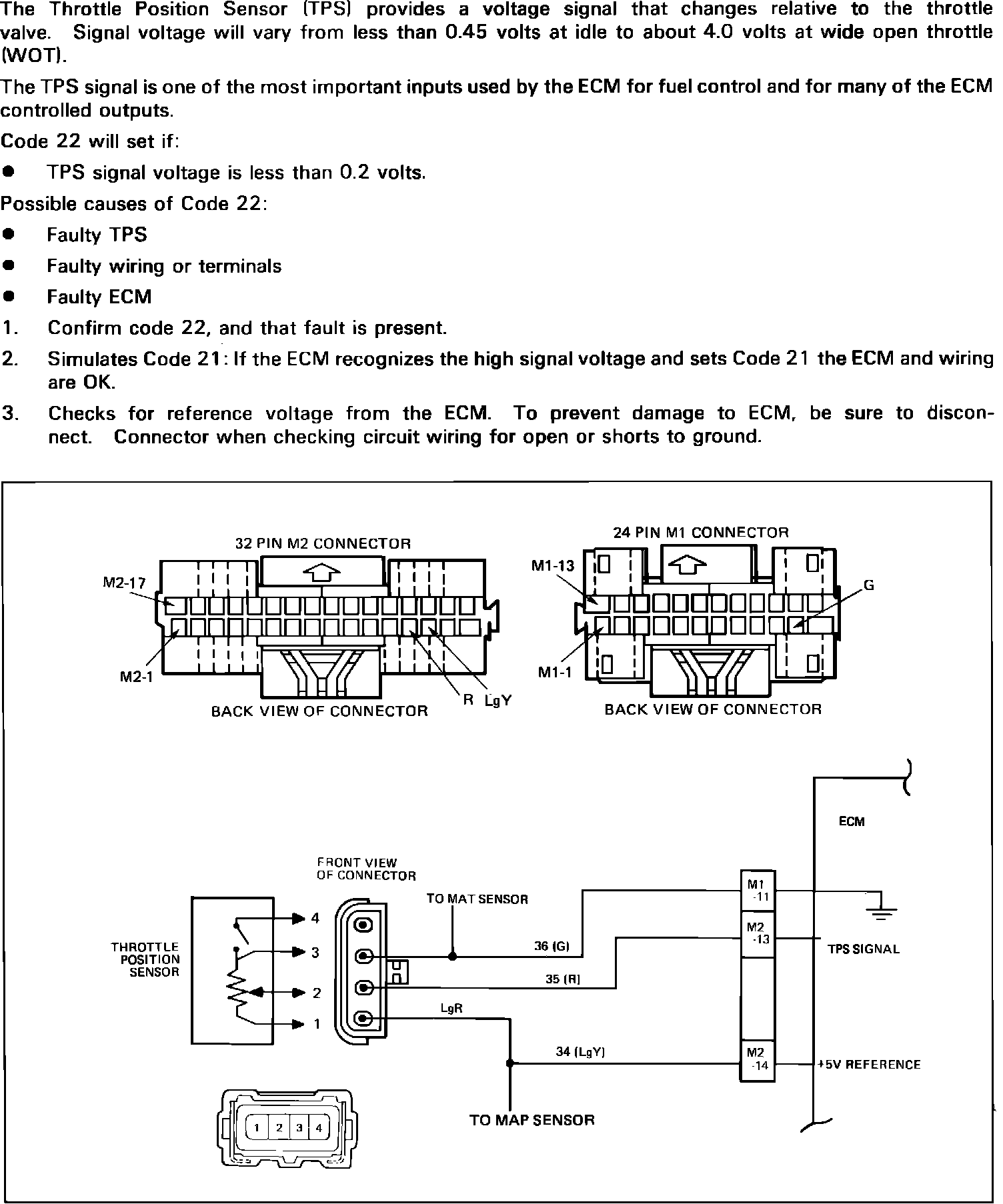

Fig. 126 Code 22 TPS Voltage Low:

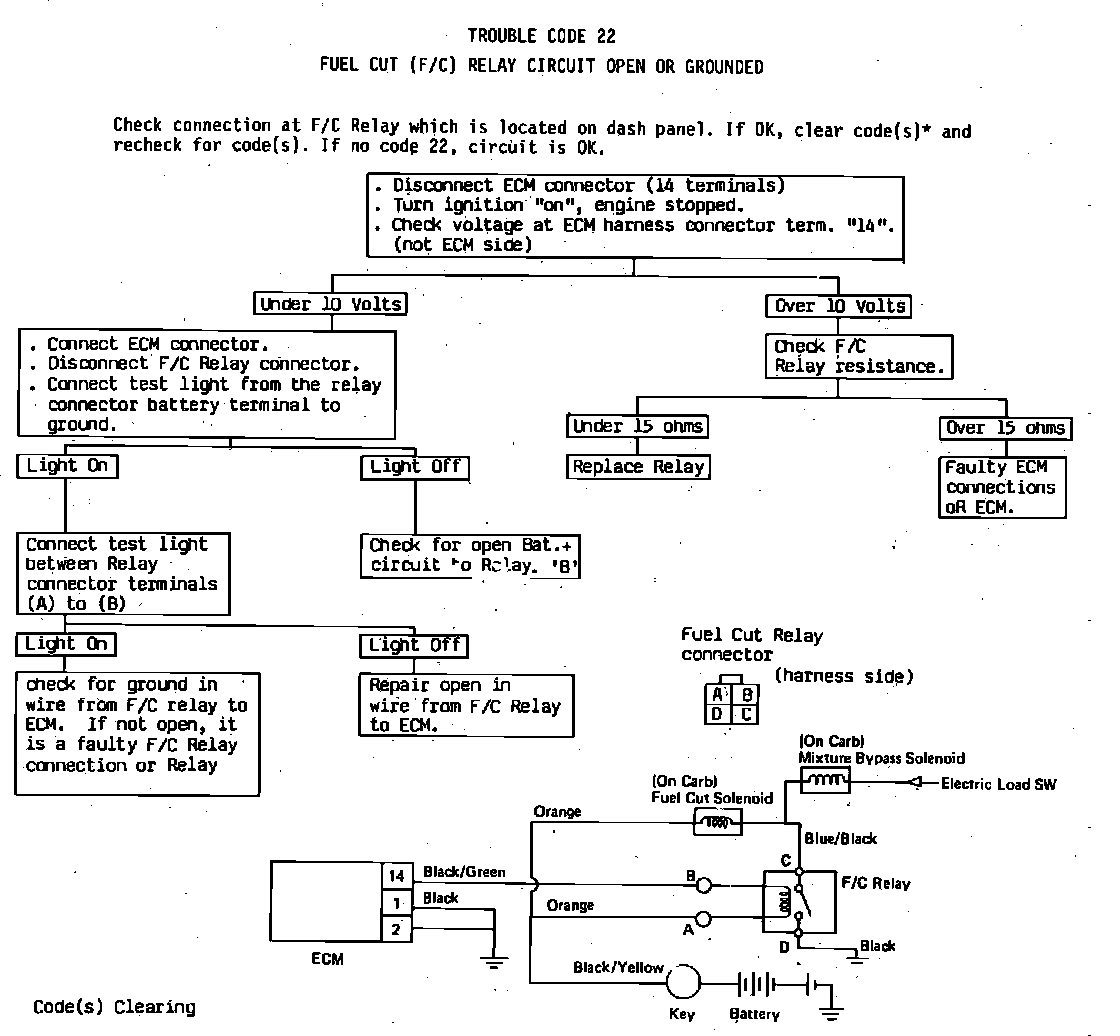

Fig. 21 Code 22, Fuel Cut Relay Circuit Open or Grounded:
Fig. 127 Code 22 TPS Voltage Low:
