DTC 14

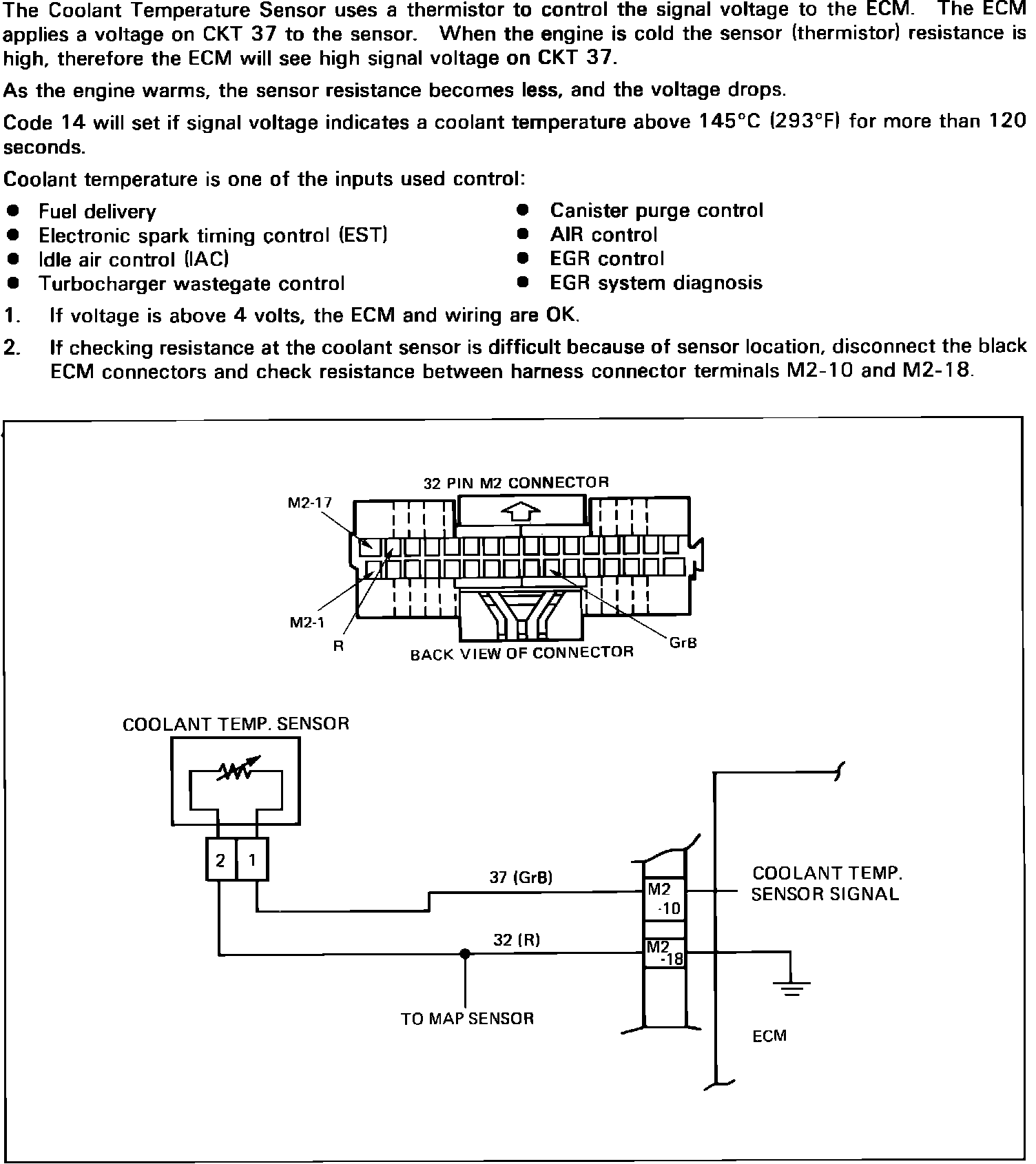

Fig. 18 Code 14, Shorted Coolant Sensor Circuit:



Fig. 120 Code 14 Coolant Sensor Circuit Shorted:



Fig. 121 Code 14 Coolant Sensor Circuit Shorted:
