DTC 12

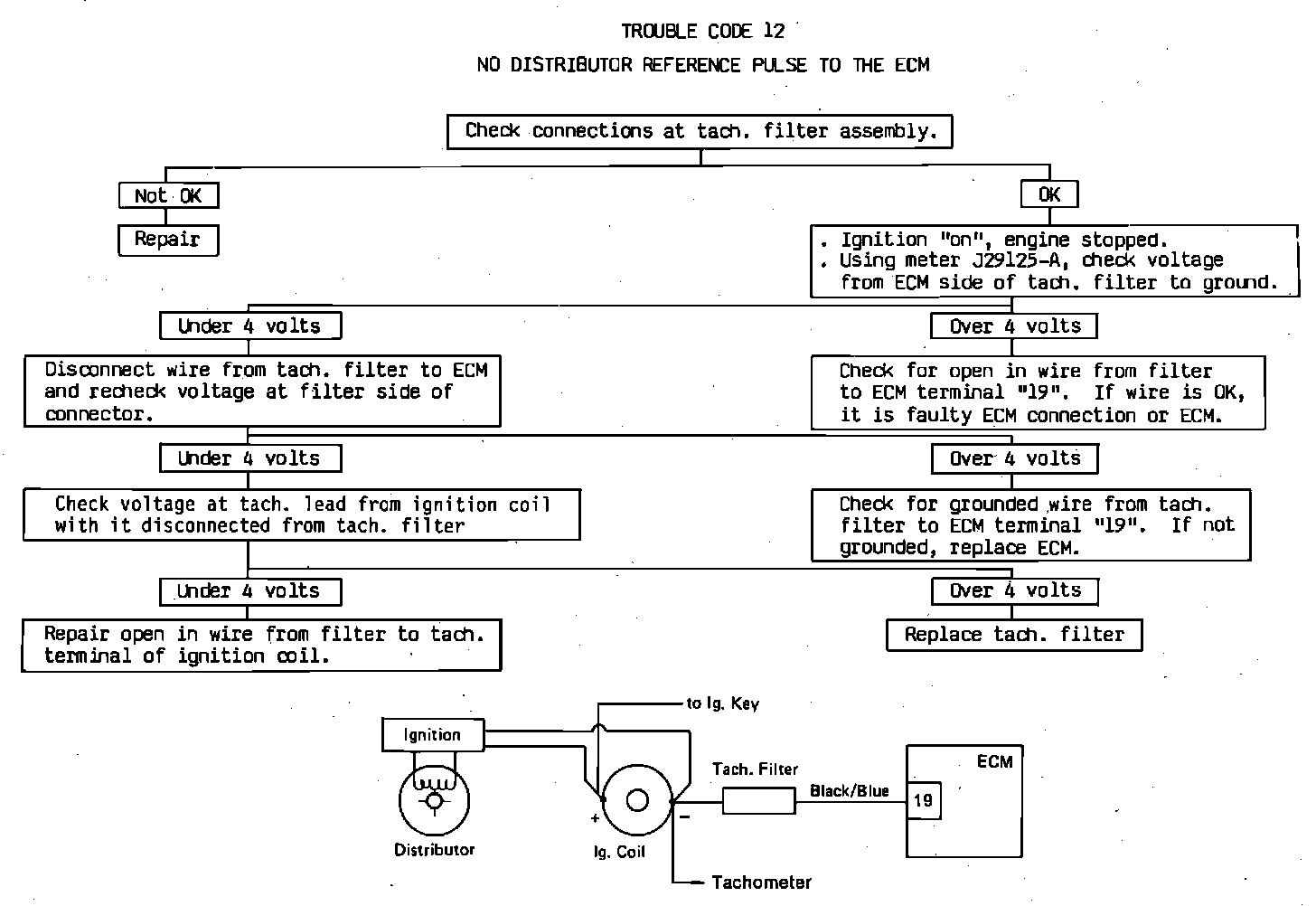

Fig. 16 Code 12, No Distributor Reference Pulse To ECM:

Fig. 23 Code 42, Constant High Voltage From Fuel Cut Relay To ECM:

Fig. 142 Code 42 Electronic Spark Timing:

Fig. 144 Code 42 Electronic Spark Timing:
