Home
>>
Isuzu
>>
1987
>>
Impulse L4-1994cc 2.0L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>

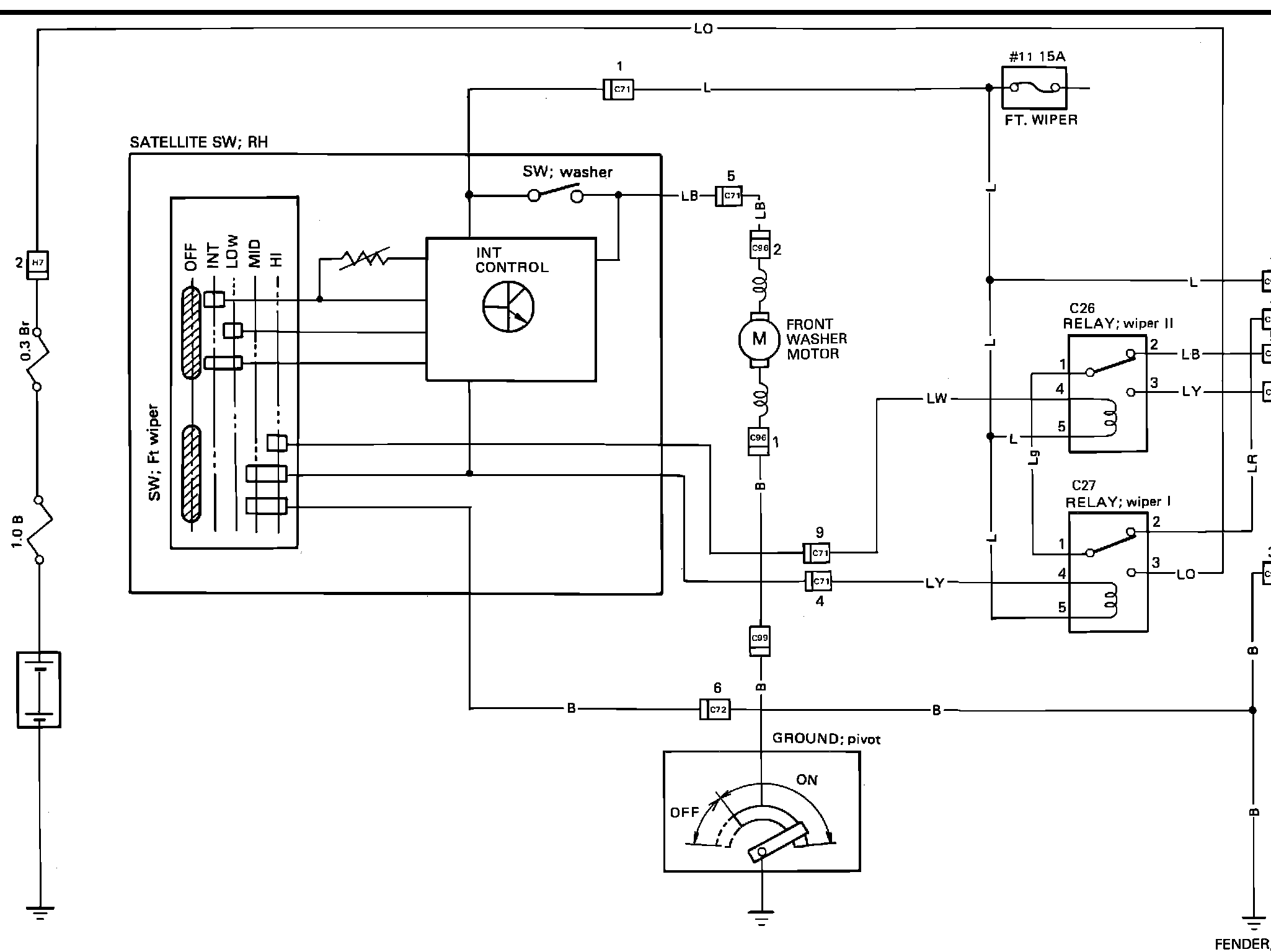

Front Wiper/Washer Wiring Circuit
Front Wiper/Washer Wiring Circuit
u��3Front Wiper/Washer Wiring Circuit:
