Front Suspension

IMPULSE

1. Raise and support front of vehicle.

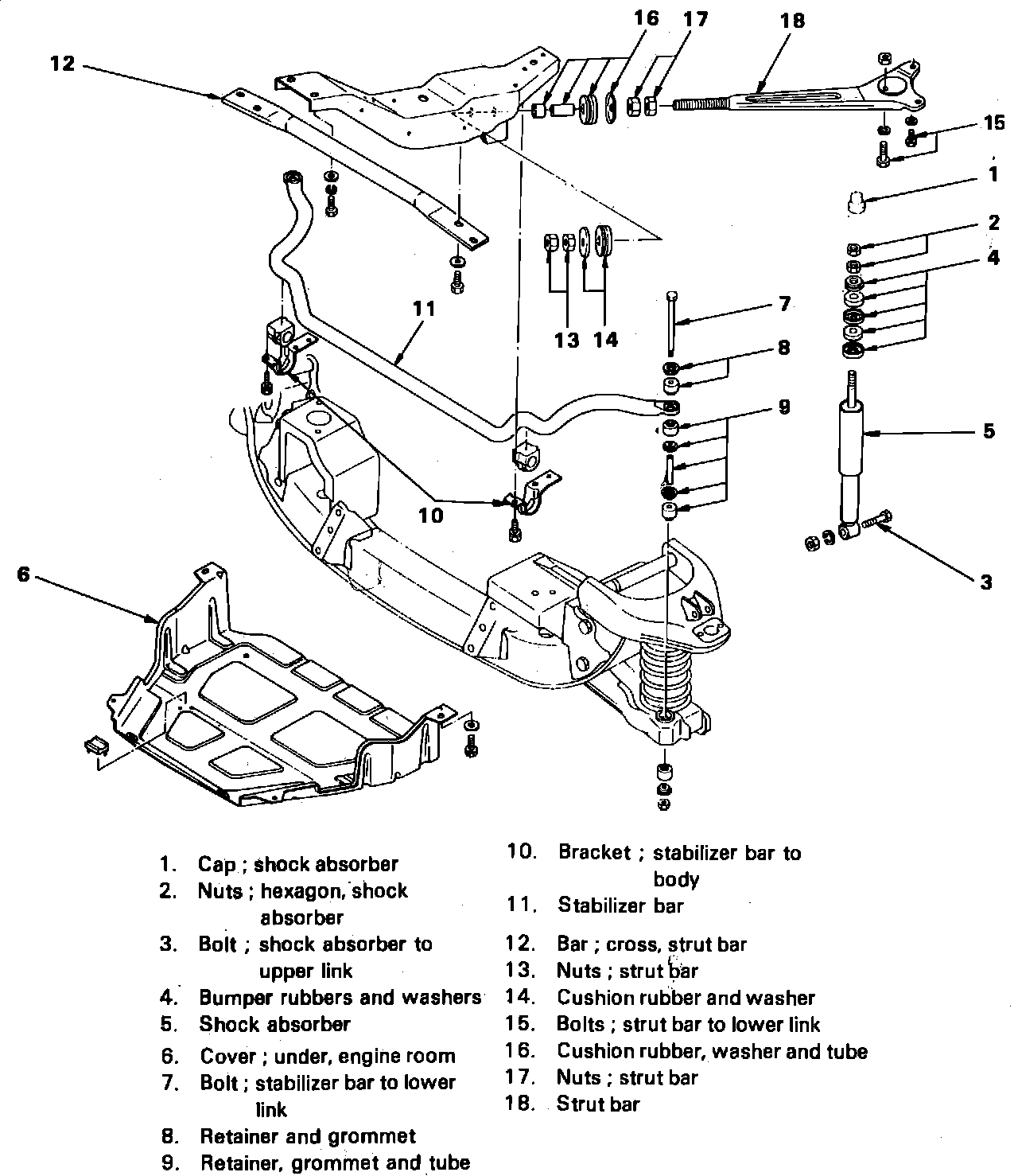

Fig. 1 Shock absorber, strut bars & stabilizer bar assembly. Impulse:

2. Remove shock absorber cap, Fig. 1.
3. Remove shock absorber nuts.
4. Remove shock absorber to upper link bolt.
5. Remove rubber bumpers and washers.
6. Remove shock absorber.
7. Reverse procedure to install. Torque shock absorber to upper link bolt to 27-30 ft. lbs.
