Isuzu
>>
1987
>>
Impulse L4-1994cc 2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Wiring Diagrams
Wiring Diagrams

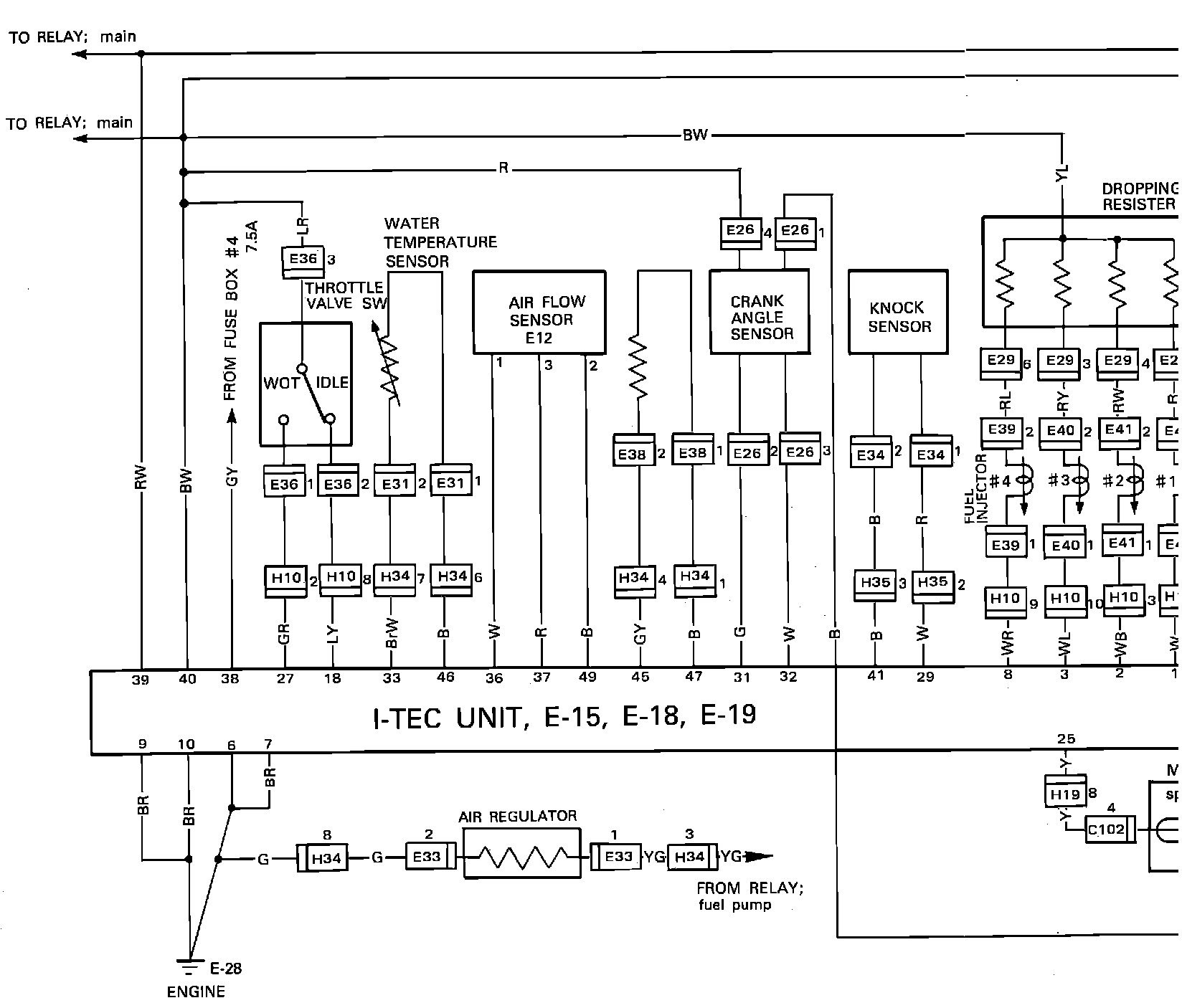

()FI-TEC System Wiring Circuit:
