Home
>>
Isuzu
>>
1987
>>
Impulse L4-1994cc 2.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Diagrams
>>
W/Digital Meter
W/Digital Meter

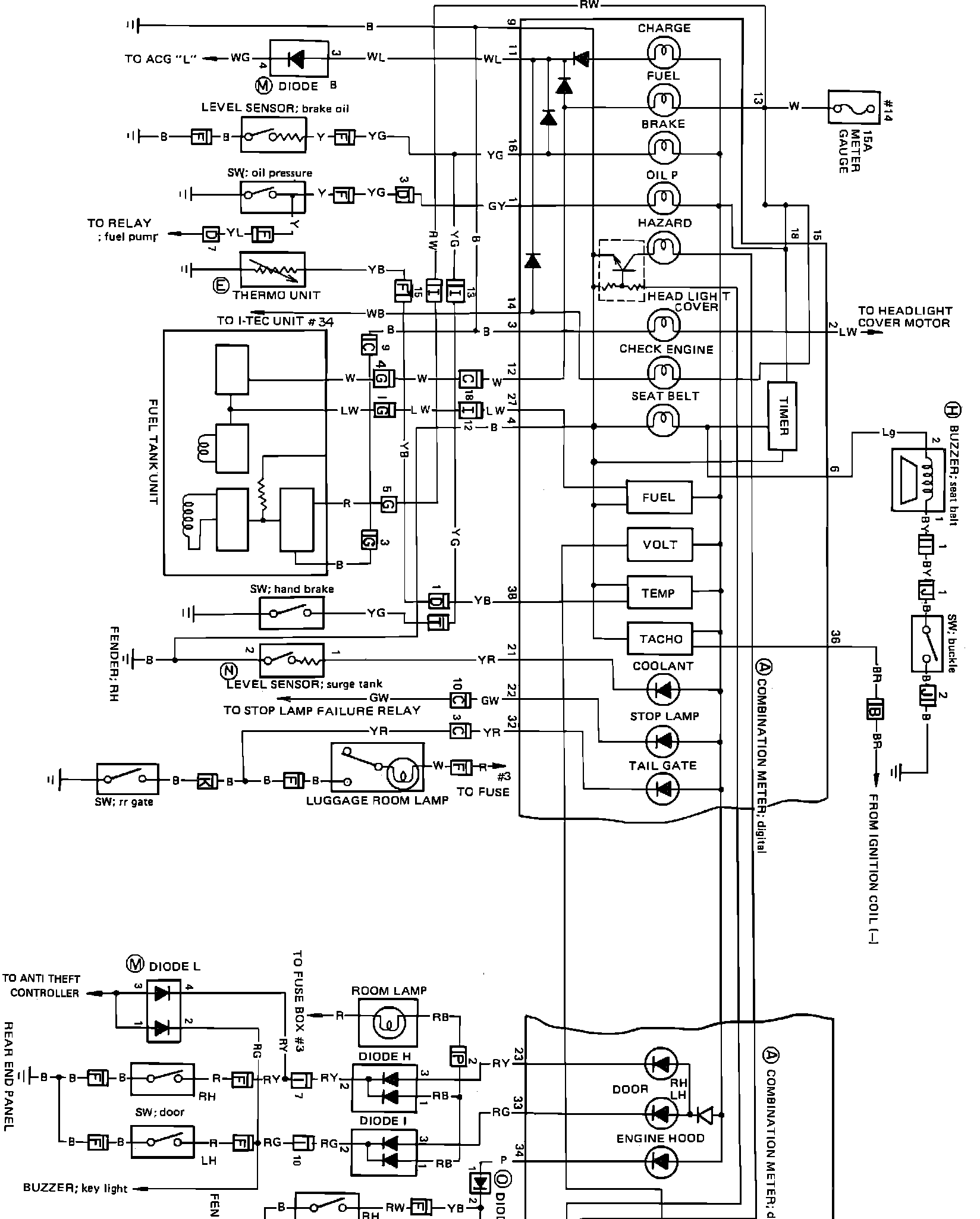

d��0Combination Meter Wiring Circuit. W/Digital Meter:
