Assembly

Double Offset Joint
1. Assemble in the reverse order of disassembly, noting the following:
a. Use care to avoid damaging boot when installing boot on shaft.

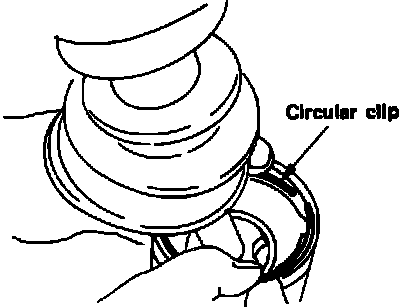

Fig. 8 Installing circular clip in outer case:

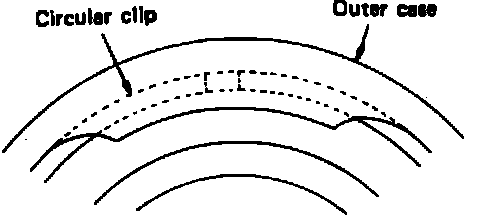

Fig. 9 Aligning circular clip ends in outer case:

b. Install and align circular clip as shown, Figs. 8 and 9.

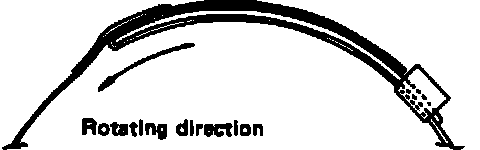

Fig. 10 Installing boot band:

c. To install boot band, first insert a screwdriver into end of boot, then install band as shown, Fig. 10. Ensure band end clip is securely tightened around the band and boot is not twisted.
