Front License Plate - Mounting Instructions

BULLETIN NUMBER ISSUE DATE GROUP
SB87-11-003 April 10, 1987 BODY

1987 I-MARK (JT) FRONT LICENSE PLATE MOUNTING
VEHICLES AFFECTED

1987 I-Mark (JT) models.

SERVICE INFORMATION

Where local regulations require the installation of a front license plate, two holes must be drilled in the front bumper as described in this Service Bulletin.

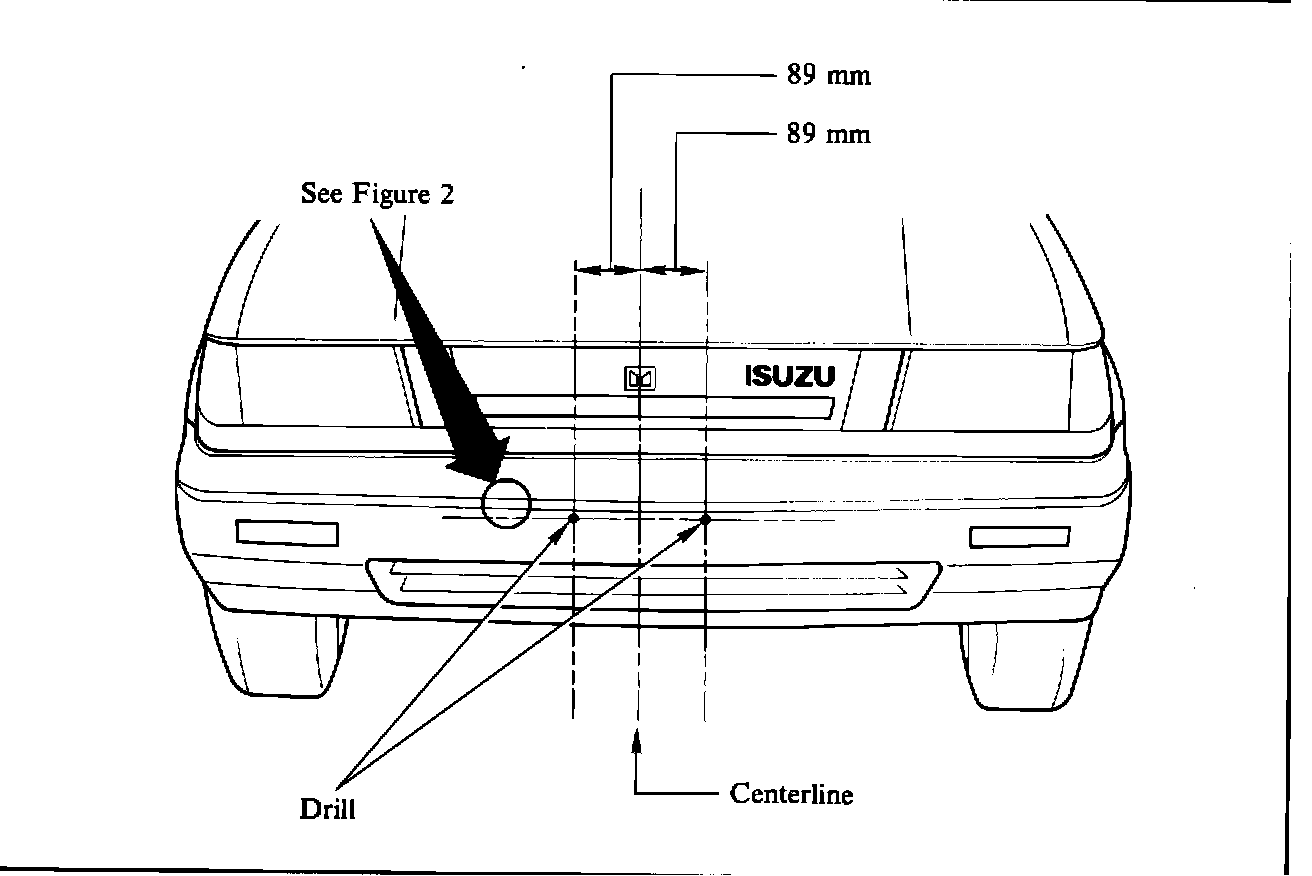

Figure 1 - Determining Centerline:

SERVICE PROCEDURE

1. Determine the centerline of the front bumper using Isuzu emblem and the lower bumper fascia center strip as reference (Figure 1).

2. Make a fine, non-permanent mark 89 mm to the left and to the right of the centerline.

Figure 1 - Determining Centerline:

Figure 2 - Front Bumper Strip:

3. At each mark made in Step 2, measure 6 mm down from the lower edge of the front bumper strip (Figure 2). Drll a 5.5 mm hole at this point (Figure 1). Drill only deep enough to penetrate the bumper fascia.

4. Attach the license plate with 2 self-tapping 6 mm screws, 16 mm in length.
