Differential - Shim Adjustment Gauge Adapter

87isuzu03

BULLETIN NUMBER ISSUE DATE GROUP
SB87-14-004 October 6, 1987 MISCELLANEOUS

I-MARK (JT) DIFFERENTIAL SHIM ADJUSTMENT GAUGE ADAPTER
VEHICLES AFFECTED

I-Mark (JT) models with automatic transaxle.

SERVICE INFORMATION

Adapter J-35284-19 for shim selector gauge J-35284 is available from Kent-Moore. This adapter is required when determining output shaft shim selection. The adapter will be sent at no charge to dealers who have already purchased gauge J-35284.

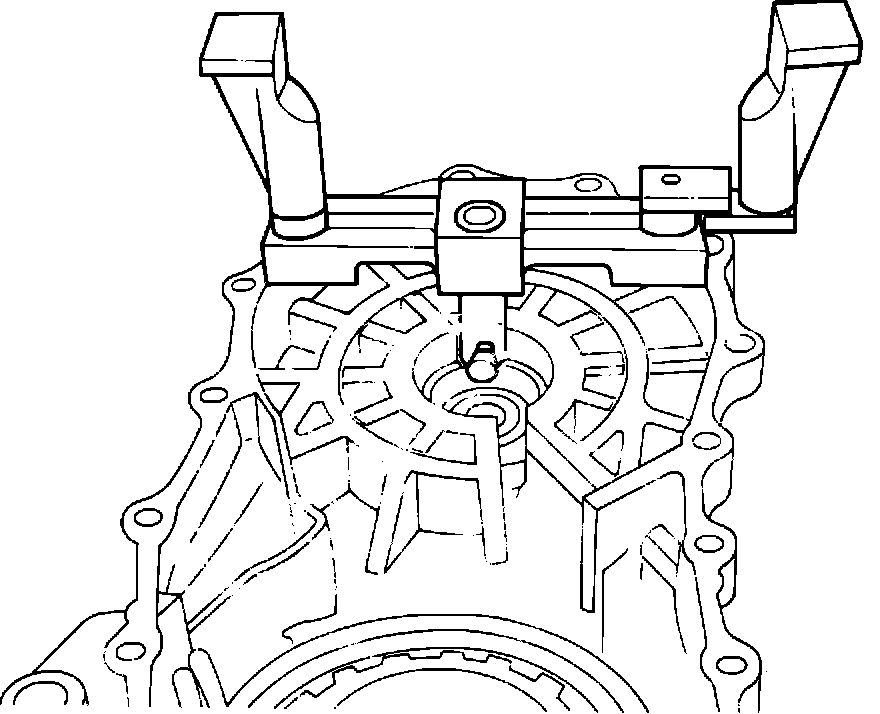

FIGURE 1:

SERVICE PROCEDURE

Follow the instructions outlined in the appropriate Workshop Manual for determining output shaft shim selection. Be sure to include the following steps:

1. Insert adapter J-35284-19 into shim selector gauge J-35284 (Figure 1) before using gauge.

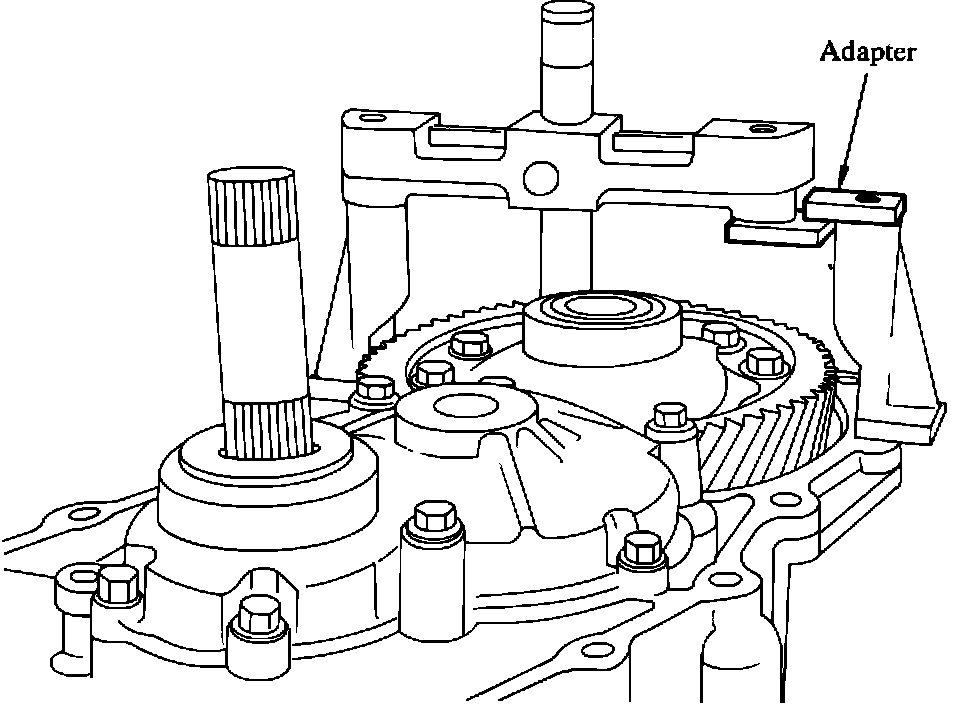

FIGURE 2:

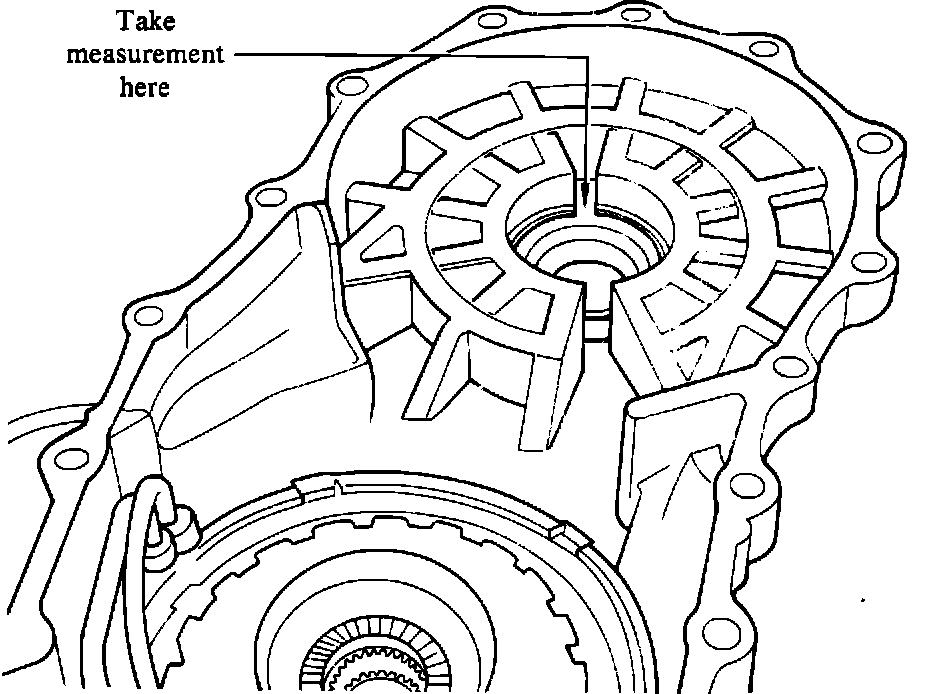

FIGURE 3:

2. When placing gauge onto bearing housing, fit gauge shaft directly into the machined groove in the transaxle case half (Figure 2 and Figure 3).
