Disassembly

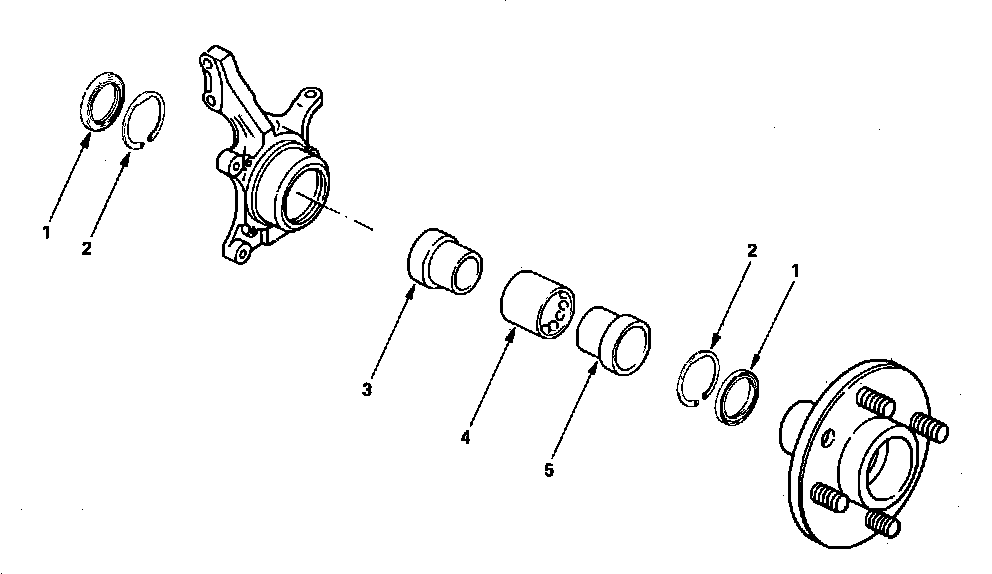

Fig. 5 Exploded view of steering knuckle:

1. Remove inner seal, snap rings and inner bearing race from steering knuckle, Fig. 5.

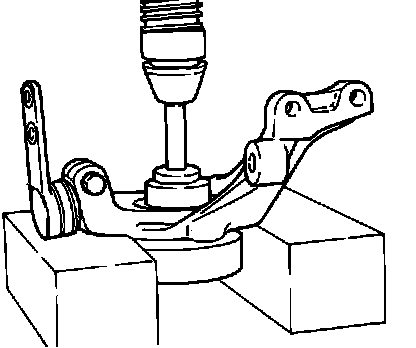

Fig. 14 Removing hub bearing from knuckle:

2. Press hub bearing from knuckle, Fig. 6.
3. Press outer bearing race from hub. The hub bearing, both inner and outer seals and races must not be reused.
