Isuzu
>>
1987
>>
I-Mark L4-1471cc 1.5L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Throttle Position Sensor
Throttle Position Sensor

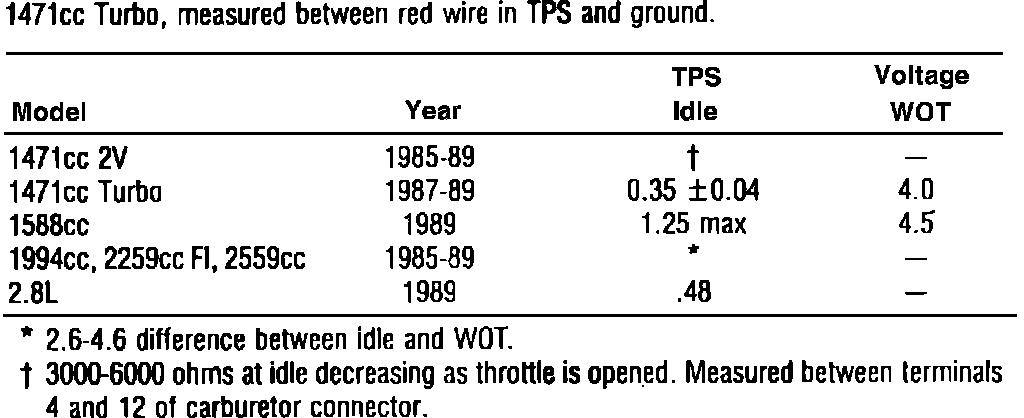

Fig. 3 Throttle Position Sensor:
