Choke Thermostat/Heater: Testing and Inspection

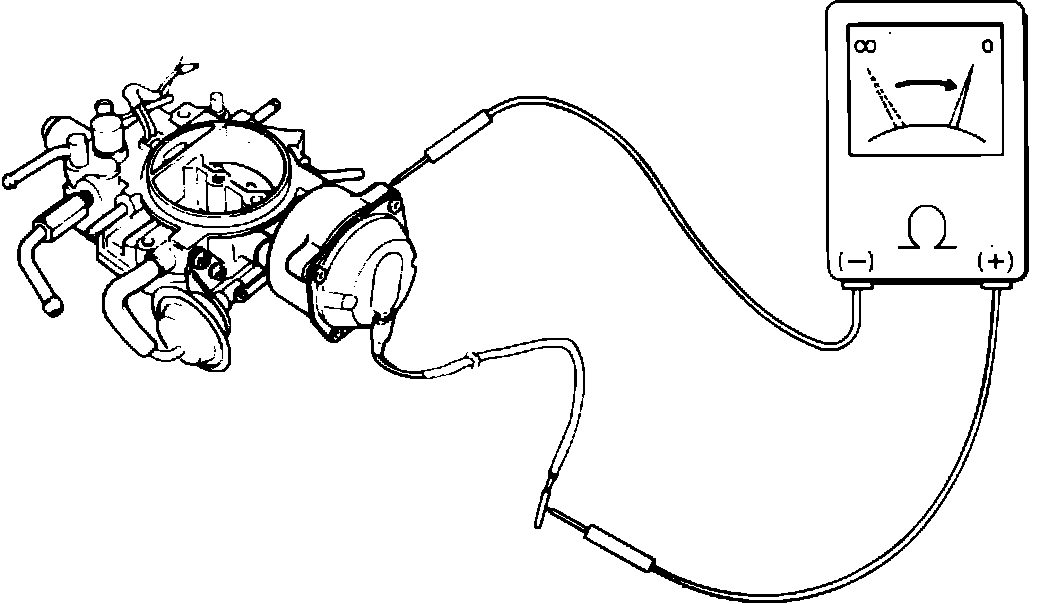

Fig. 15 Inspection of Choke Heater:

1. Measure the resistance between the choke coil wire and the housing with an ohmmeter. Standard resistance at 78 degrees F. is between one and eleven ohms.
2. If not within specifications, replace unit.
