Fuel Cut (F/C) System Operation Check
Fuel Cut (F/C) System Operation Check

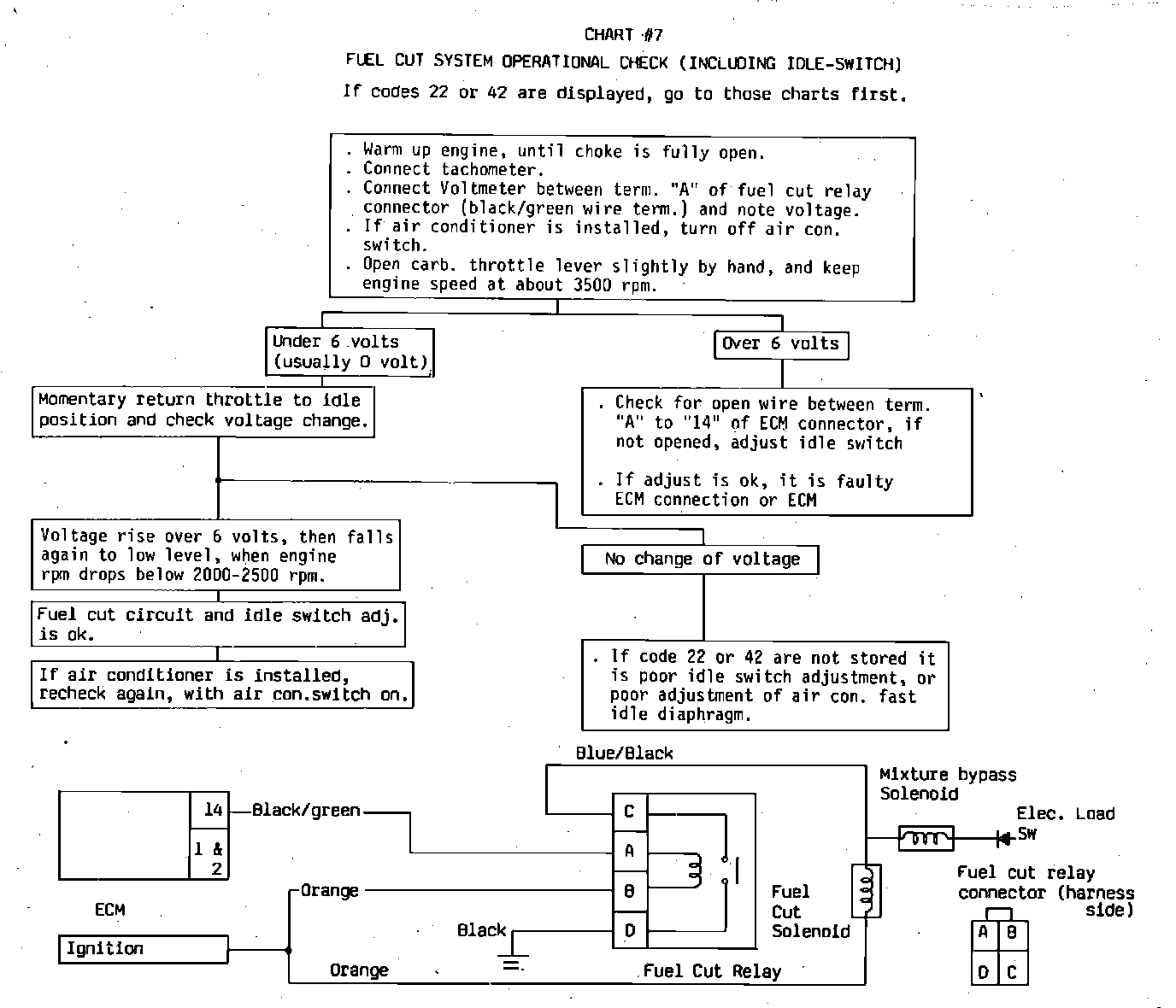

Fig. 15 Fuel cut system operational check:
