Home
>>
Isuzu
>>
1987
>>
I-Mark L4-1471cc 1.5L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

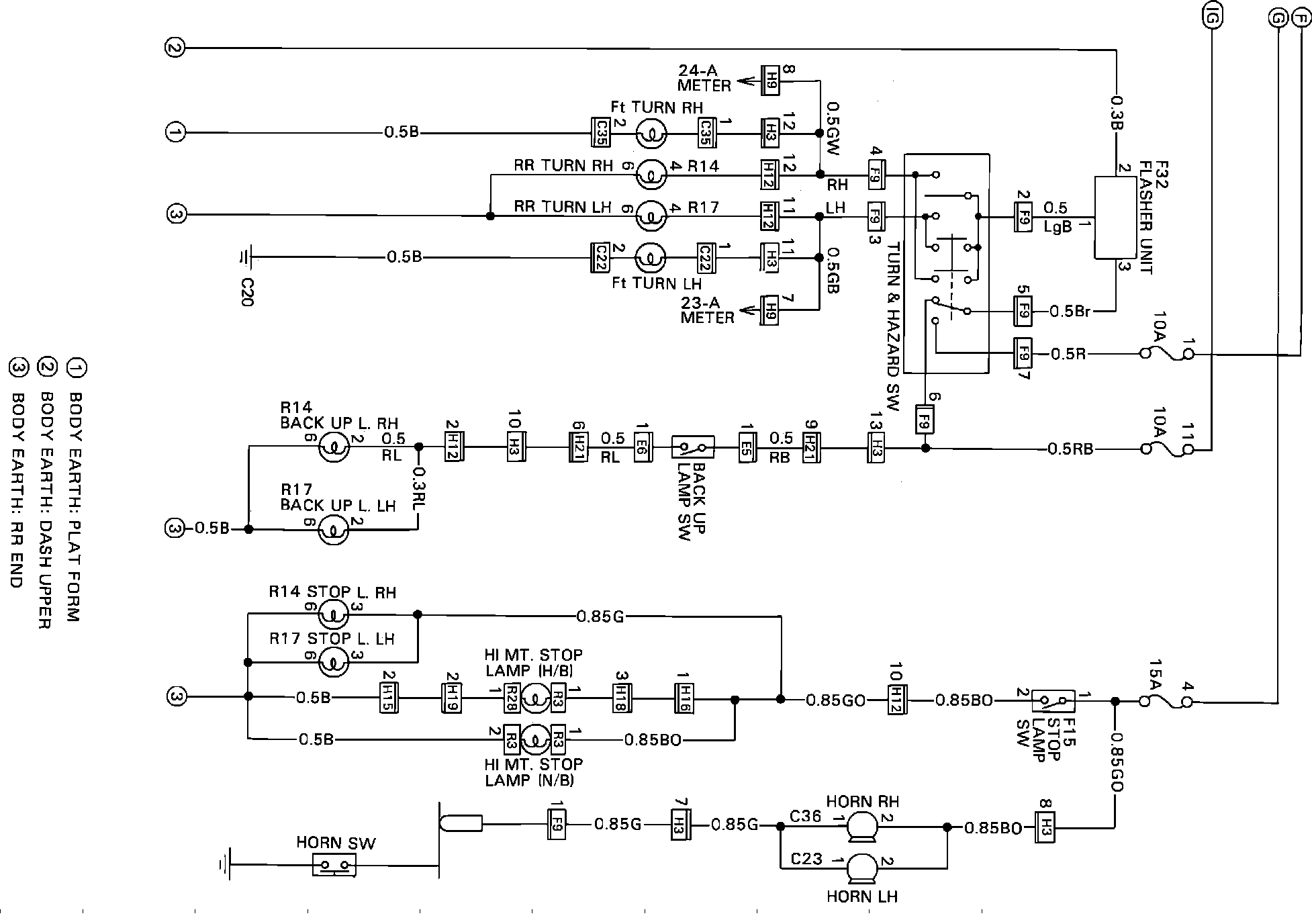

Hazard, Horn Stop Lamp & Turn Signal Wiring:
