Rear Wiper/Washer Wiring Circuit-Turbo

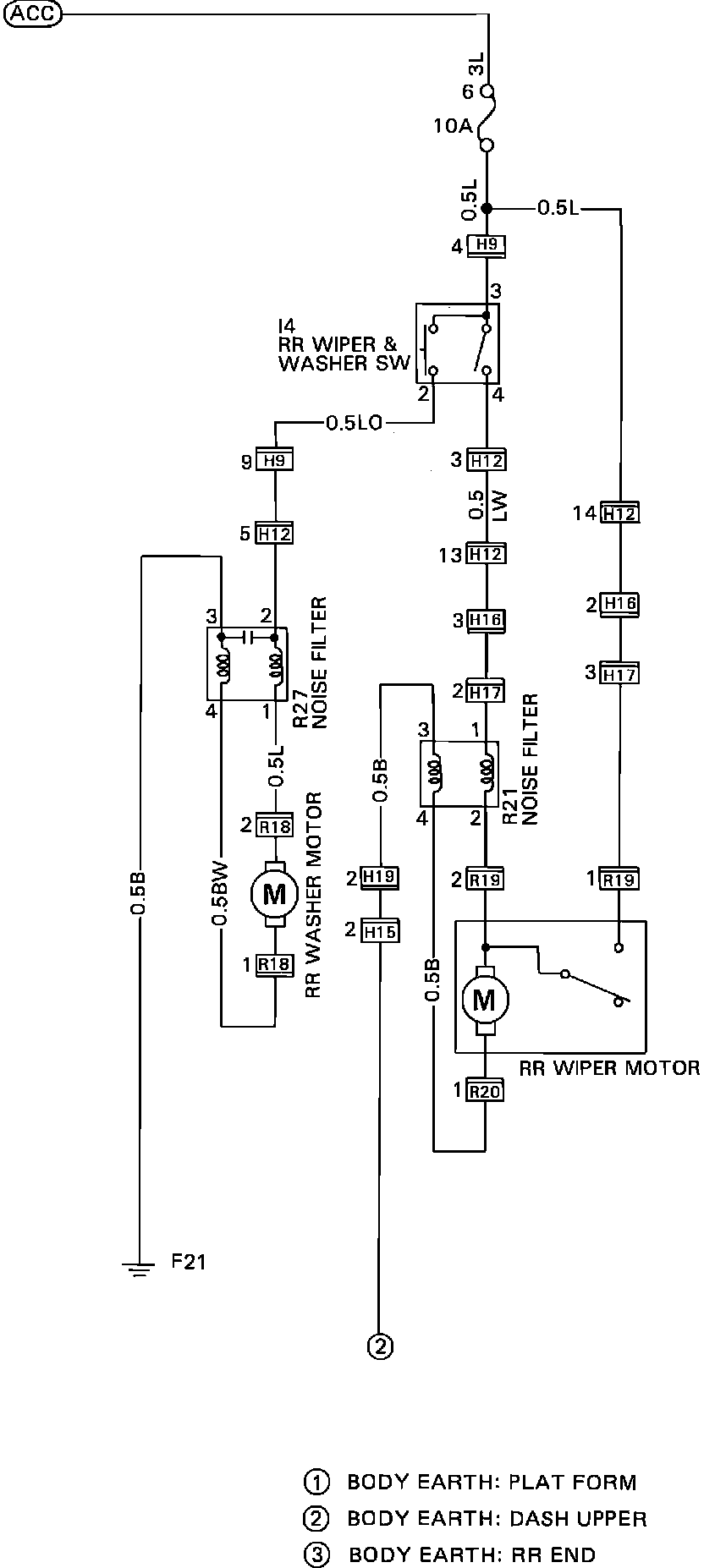

Rear Wiper/Washer Wiring Circuit-Turbo
Rear Wiper/Washer Wiring Circuit:
