Isuzu
>>
1987
>>
I-Mark L4-1471cc 1.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radiator Cooling Fan Motor
>>
With Turbo
With Turbo

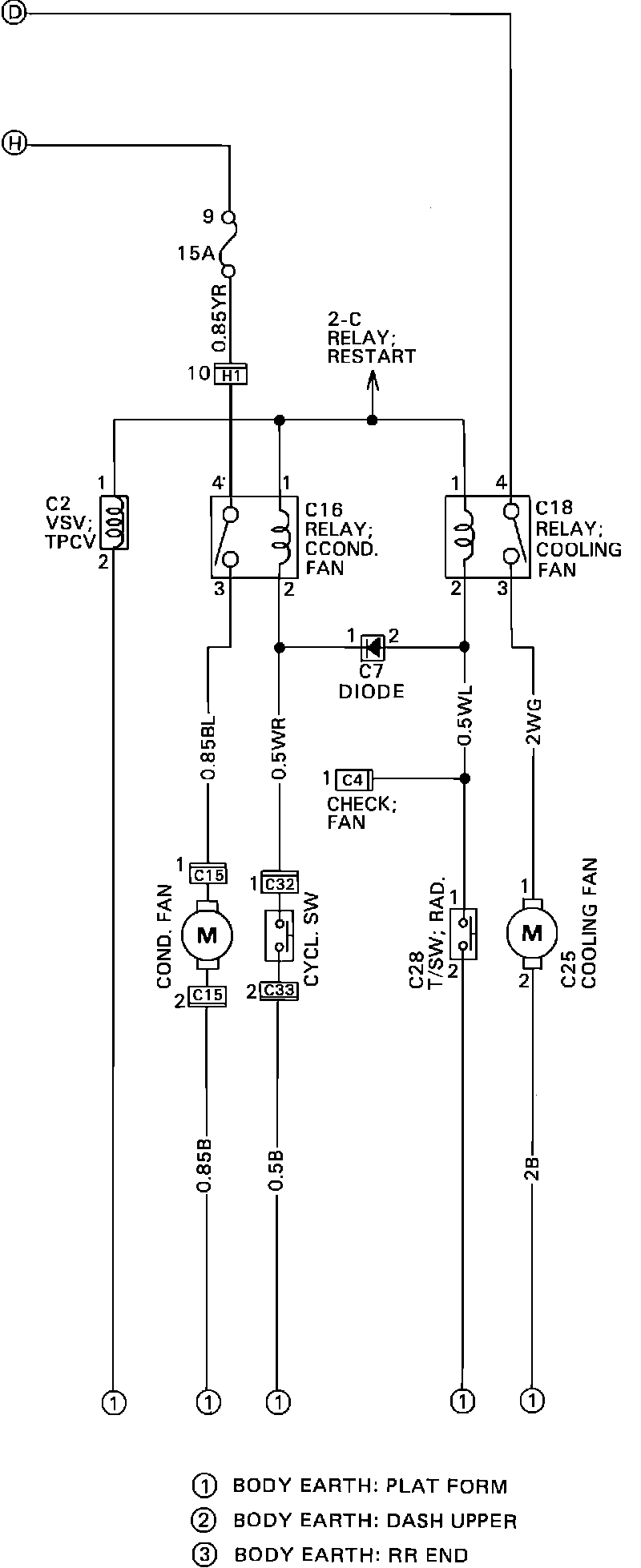

Cooling Fan Wiring Circuit:
