Isuzu
>>
1987
>>
I-Mark L4-1471cc 1.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>

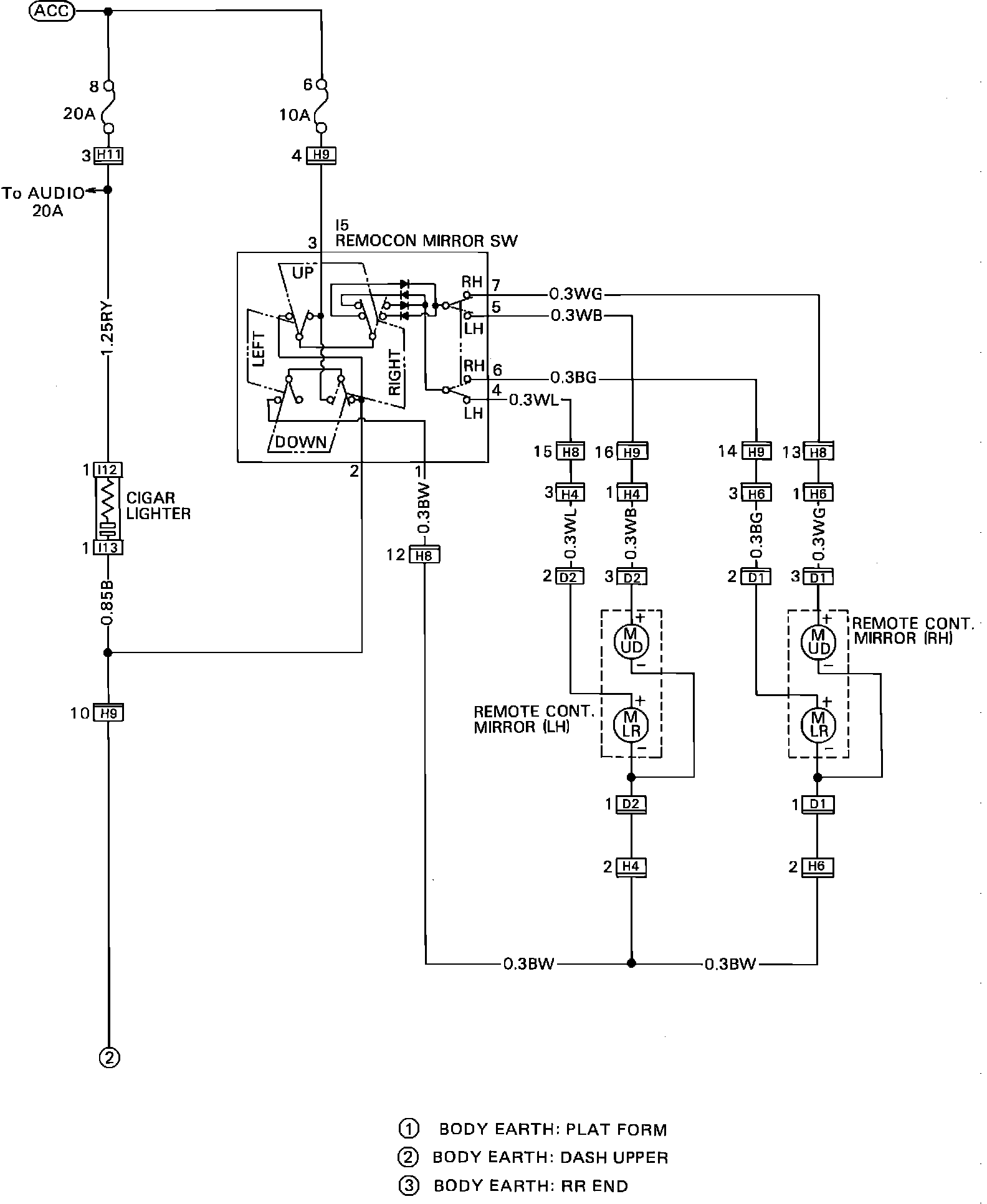

Remote Control Mirrors Wiring Circuit-Turbo
Remote Control Mirrors Wiring Circuit-Turbo
Remote Control Mirrors:
