Isuzu
>>
1986
>>
Impulse L4-1994cc 2.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Main
Main

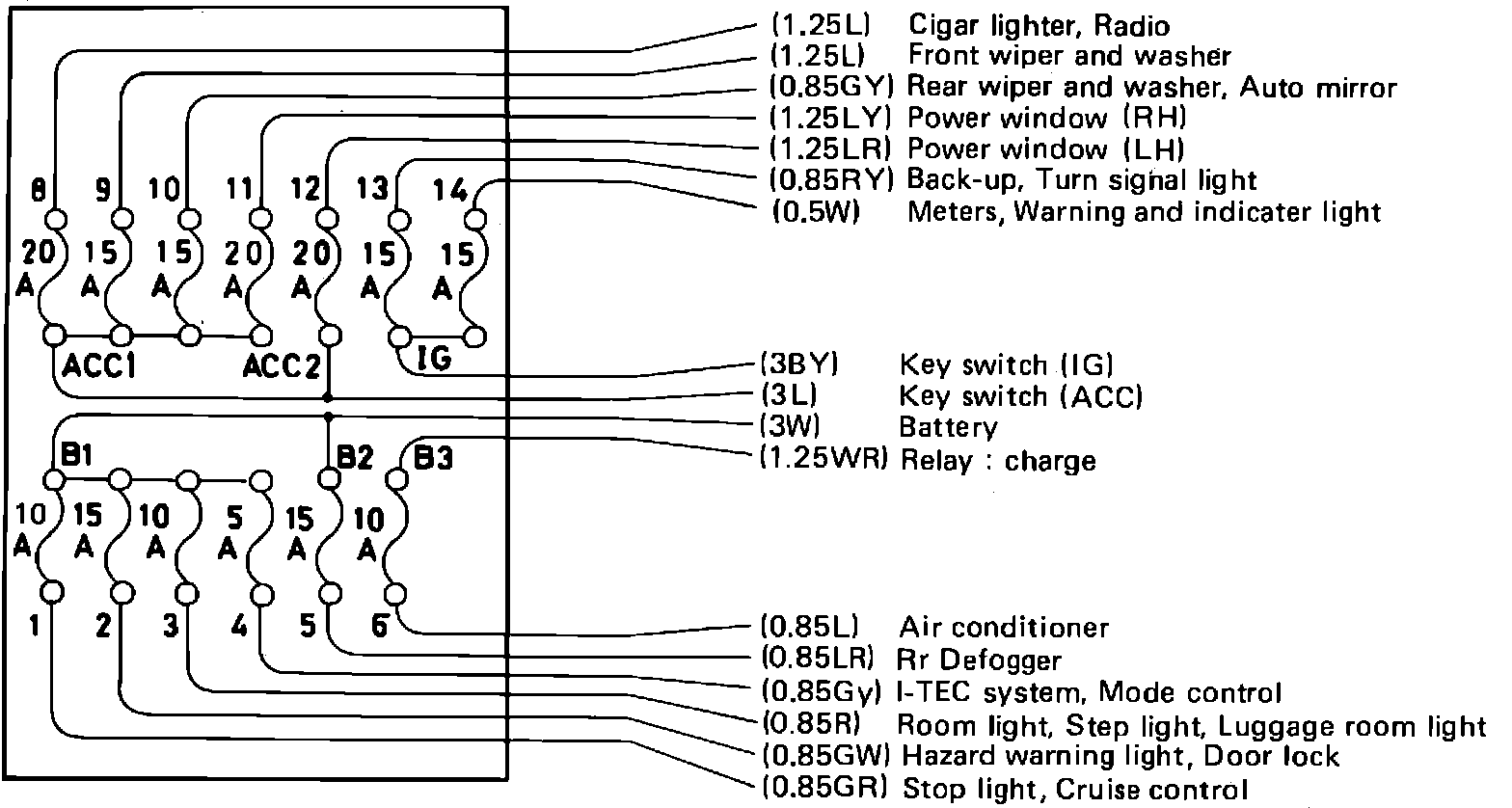

Fig. 9 Fuse Panel (Main). Less Turbocharger:
