Isuzu
>>
1985
>>
Impulse L4-1994cc 2.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Auxiliary
Auxiliary

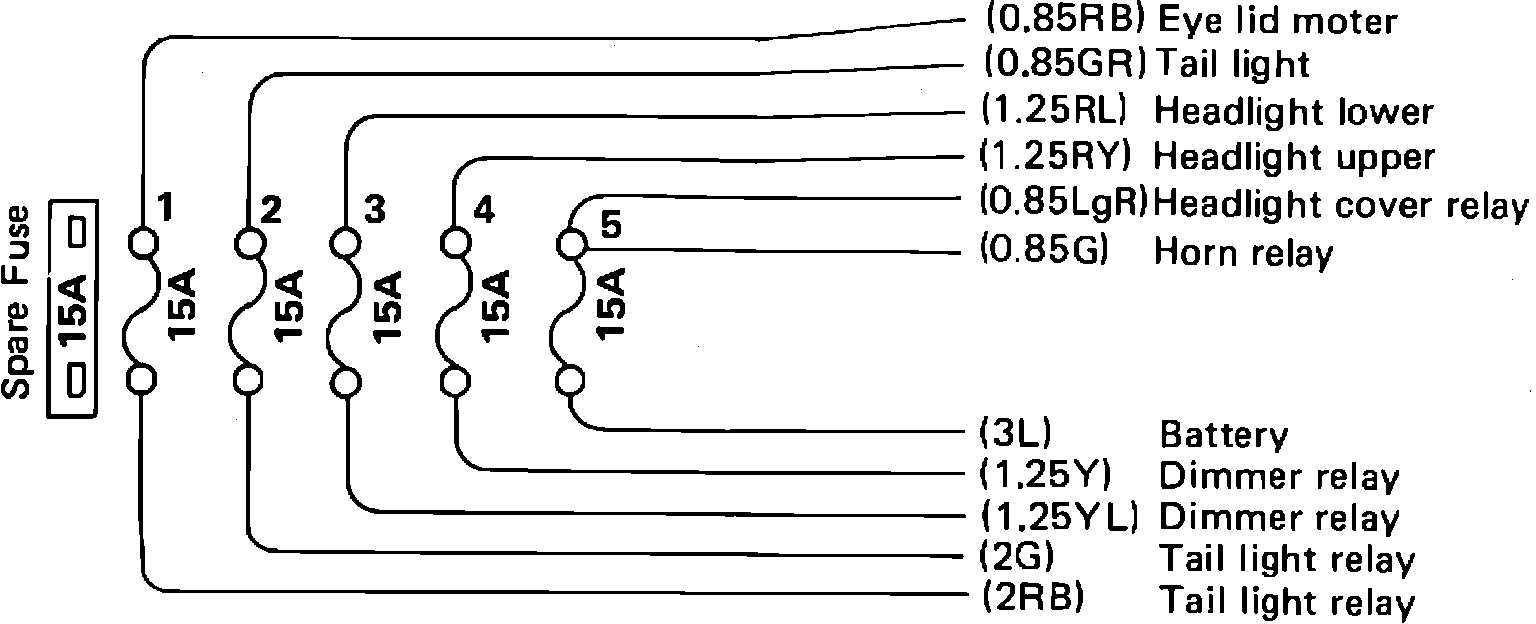

Fig. 10 Fuse Panel (Auxiliary). Less Turbocharger:
