Home
>>
Isuzu
>>
1984
>>
I-Mark L4-1817cc (G180z)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum Hose Routings--Non Calif.
Vacuum Hose Routings--Non Calif.

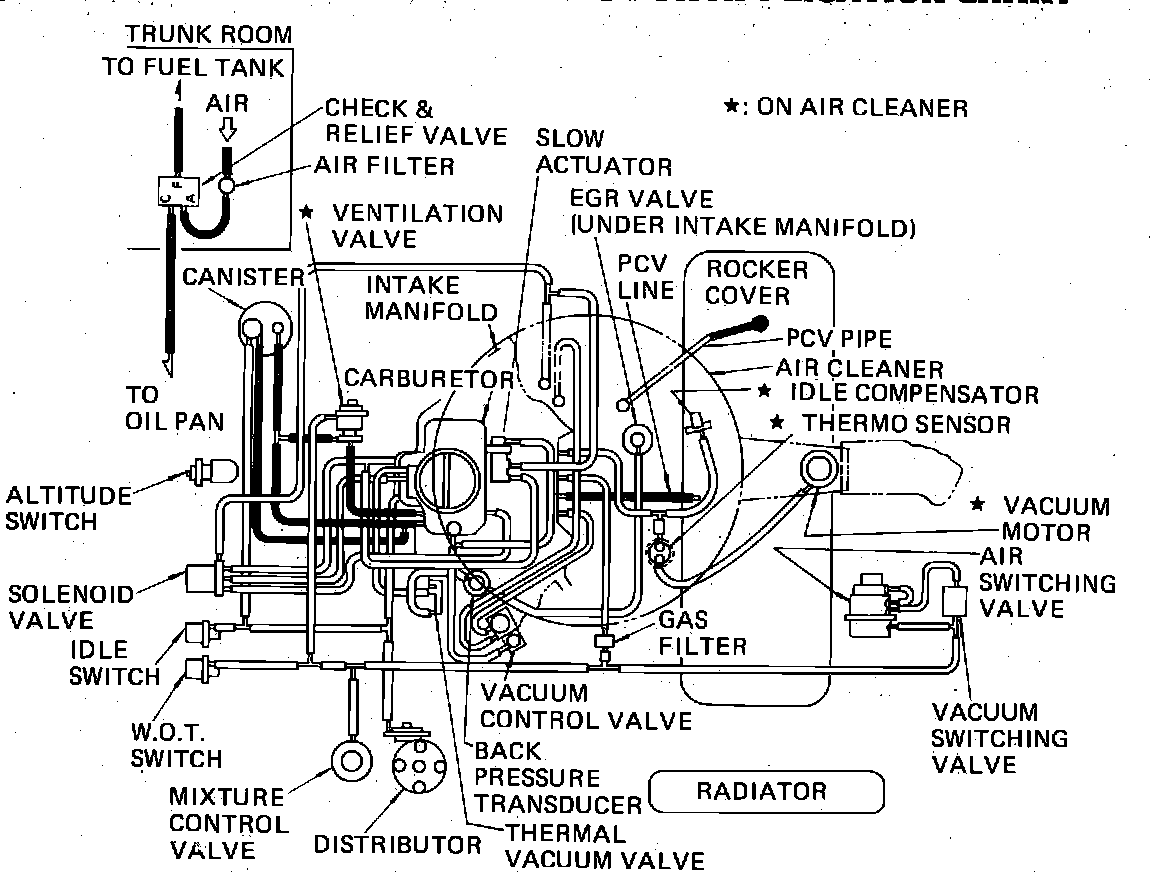

Fig. 1 Emission control vacuum hose routing:
