Vacuum Hose Routings--Calif.
Vacuum Hose Routings--Calif.

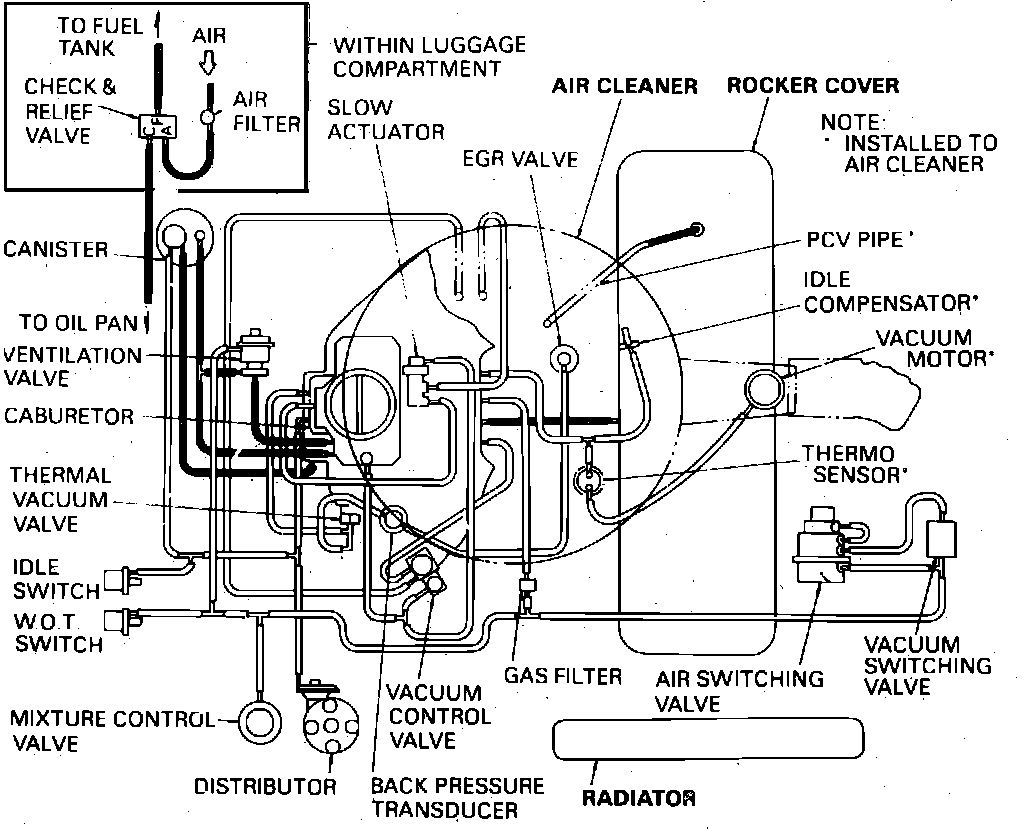

Fig. 2 Emission control vacuum hose routing:
