Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
1984
>>
I-Mark L4-1817cc (G180z)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Drum Brake System
>>
Brake Shoe
>>
Service and Repair
Brake Shoe: Service and Repair

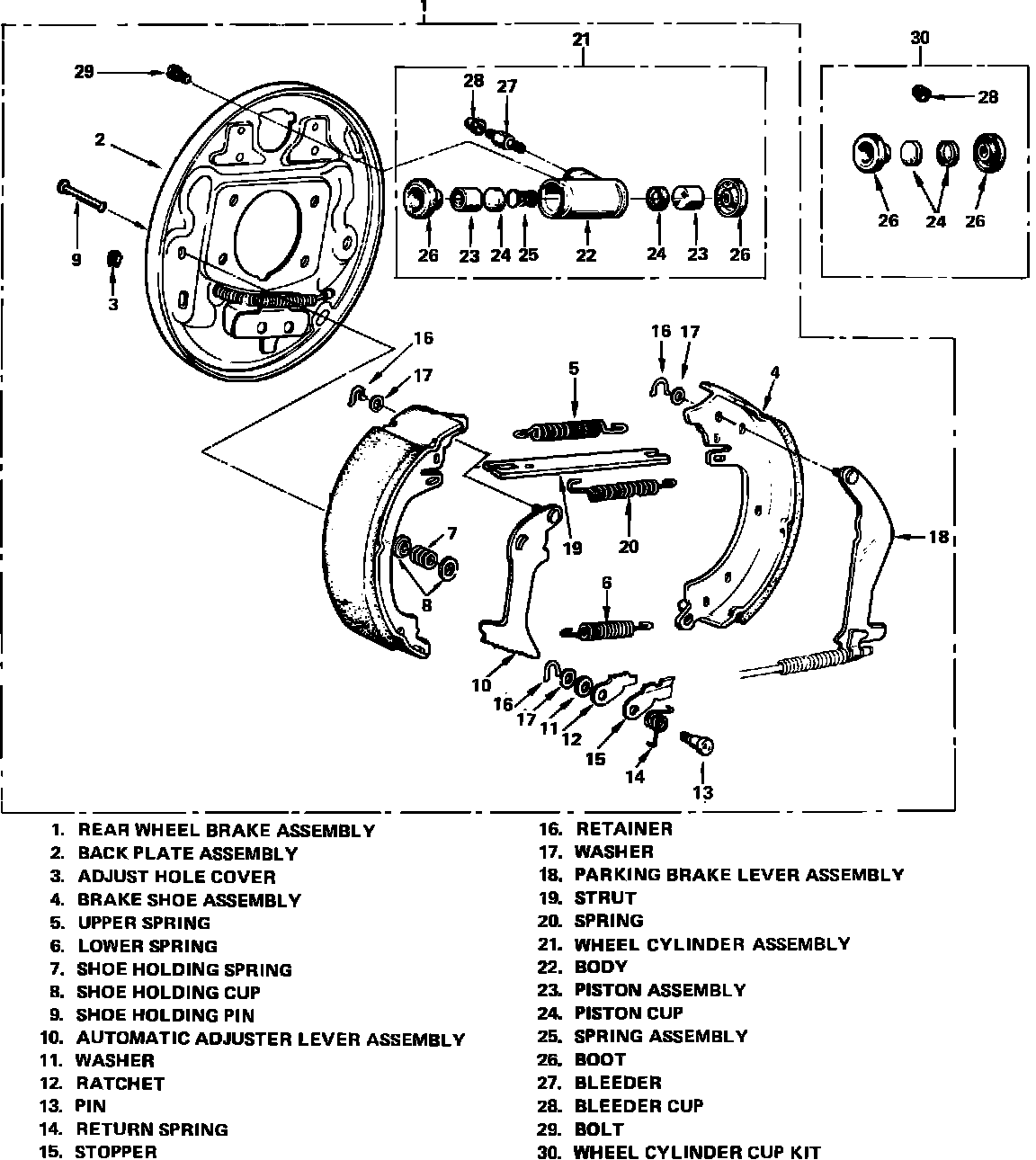

Fig. 1 Removal & installation of brake shoes.:
Refer to
Fig. 1
for
brake shoe
removal and installation.
