Excessive Evaporative Emissions
Excessive Evaporative Emissions

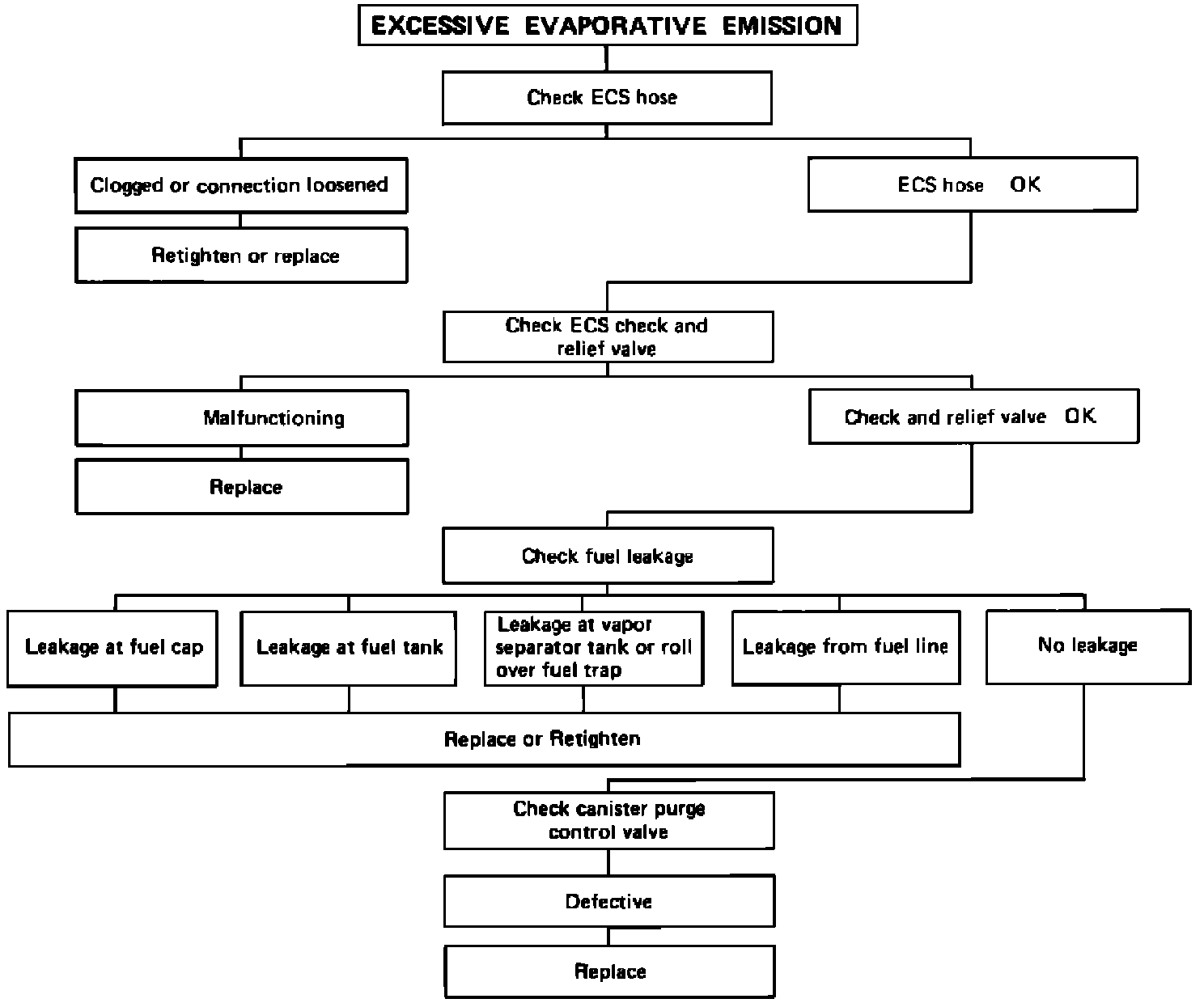

Fig.30 - Emission Control System Troubleshooting Chart:
