Isuzu Truck
>>
2013
>>
NPR L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
J-20
J-20

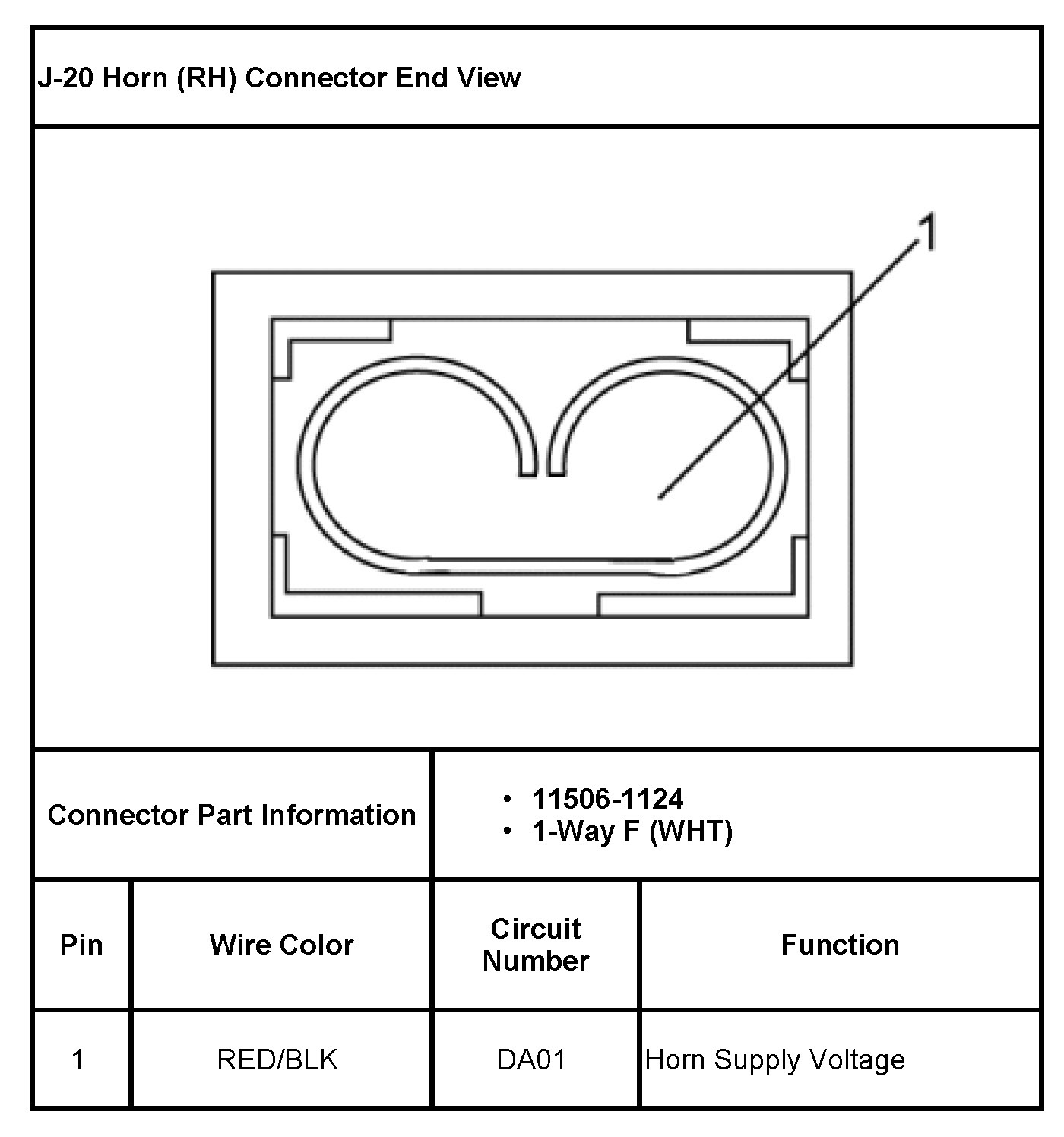

J-20 Horn (RH)
Front of the Vehicle, Behind the Front Bumper

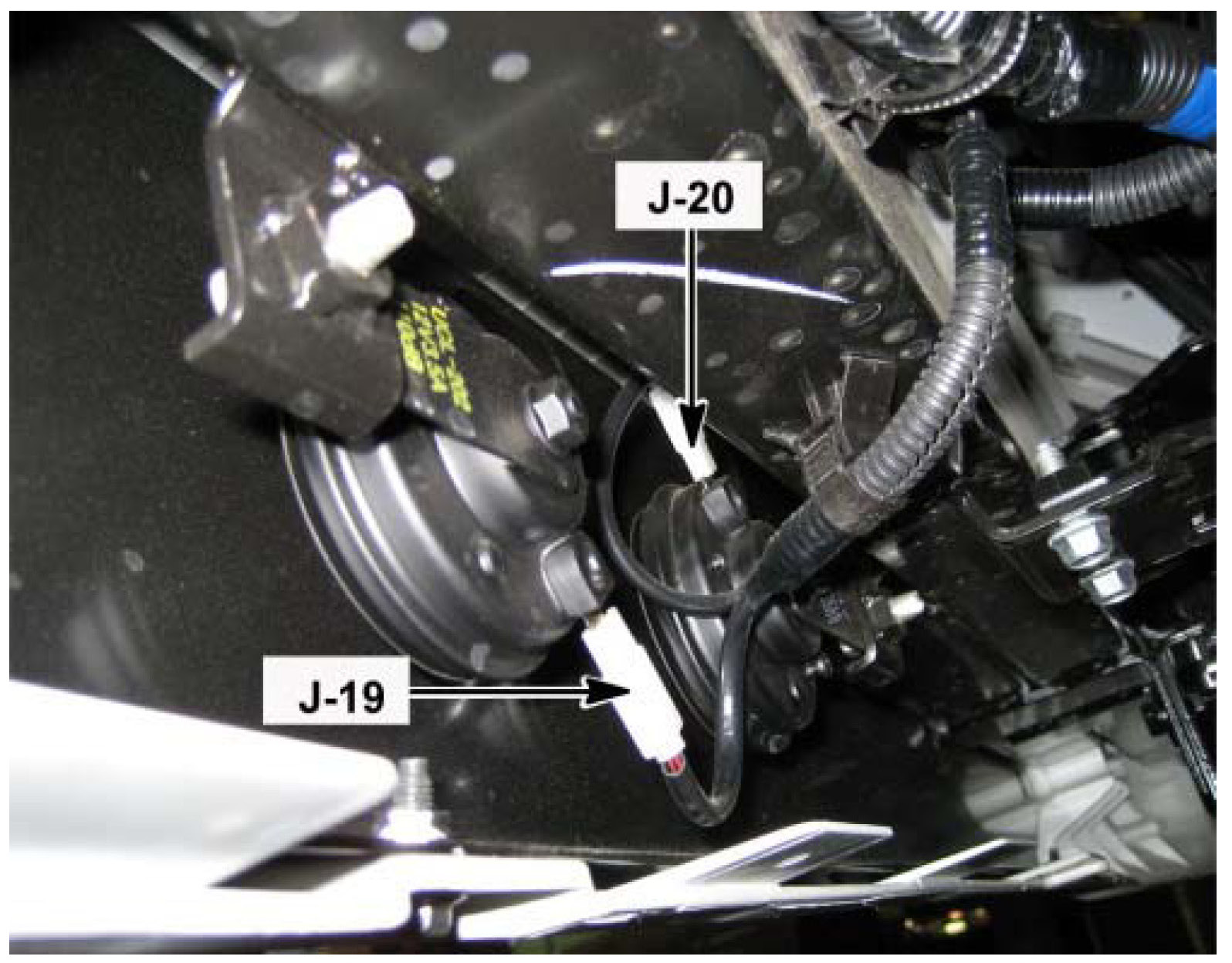

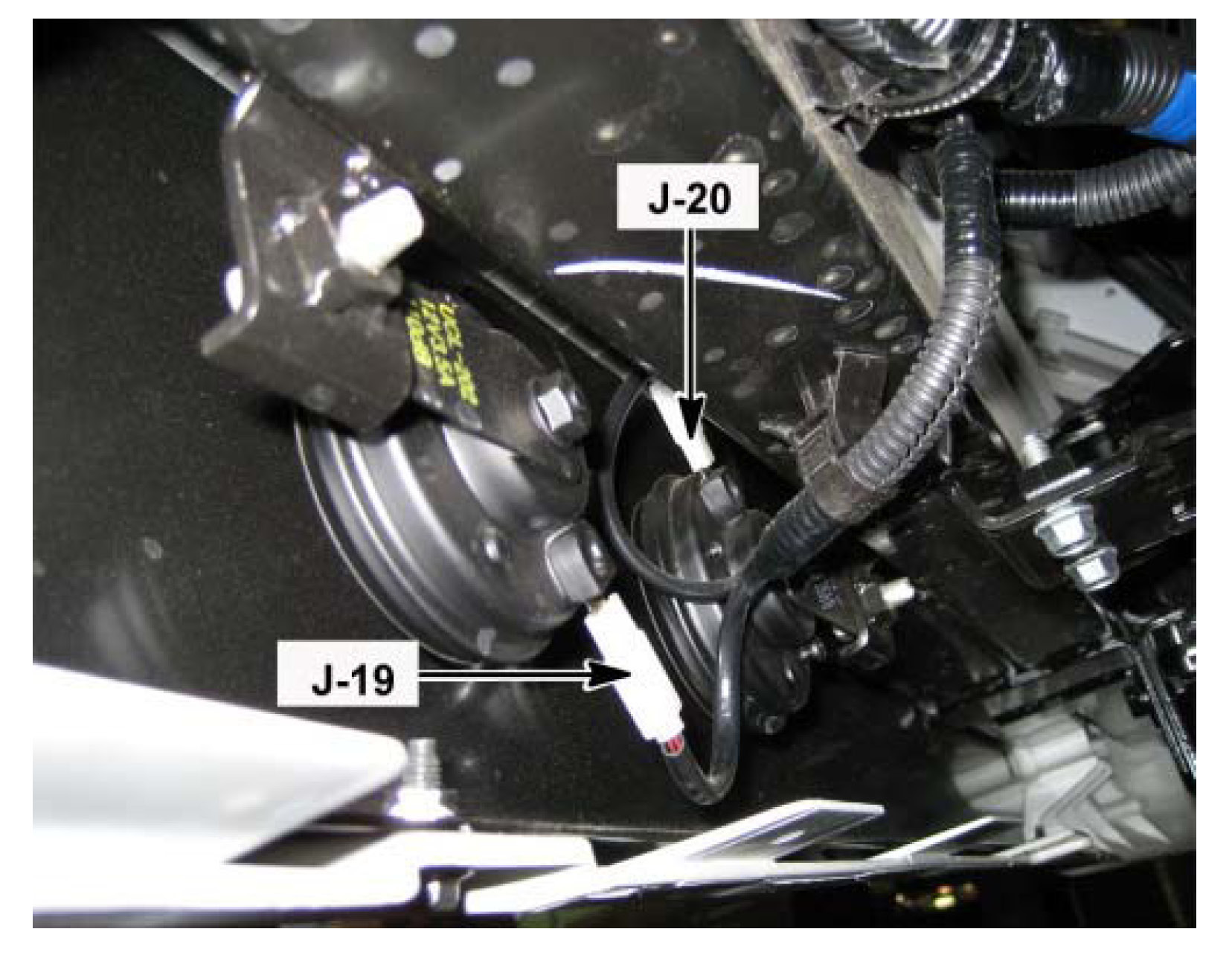

Horn (RH) (J-20)
Front of the Vehicle, Behind the Front Bumper
