Locations
>>
Connector Locations
>>
J-19
J-19

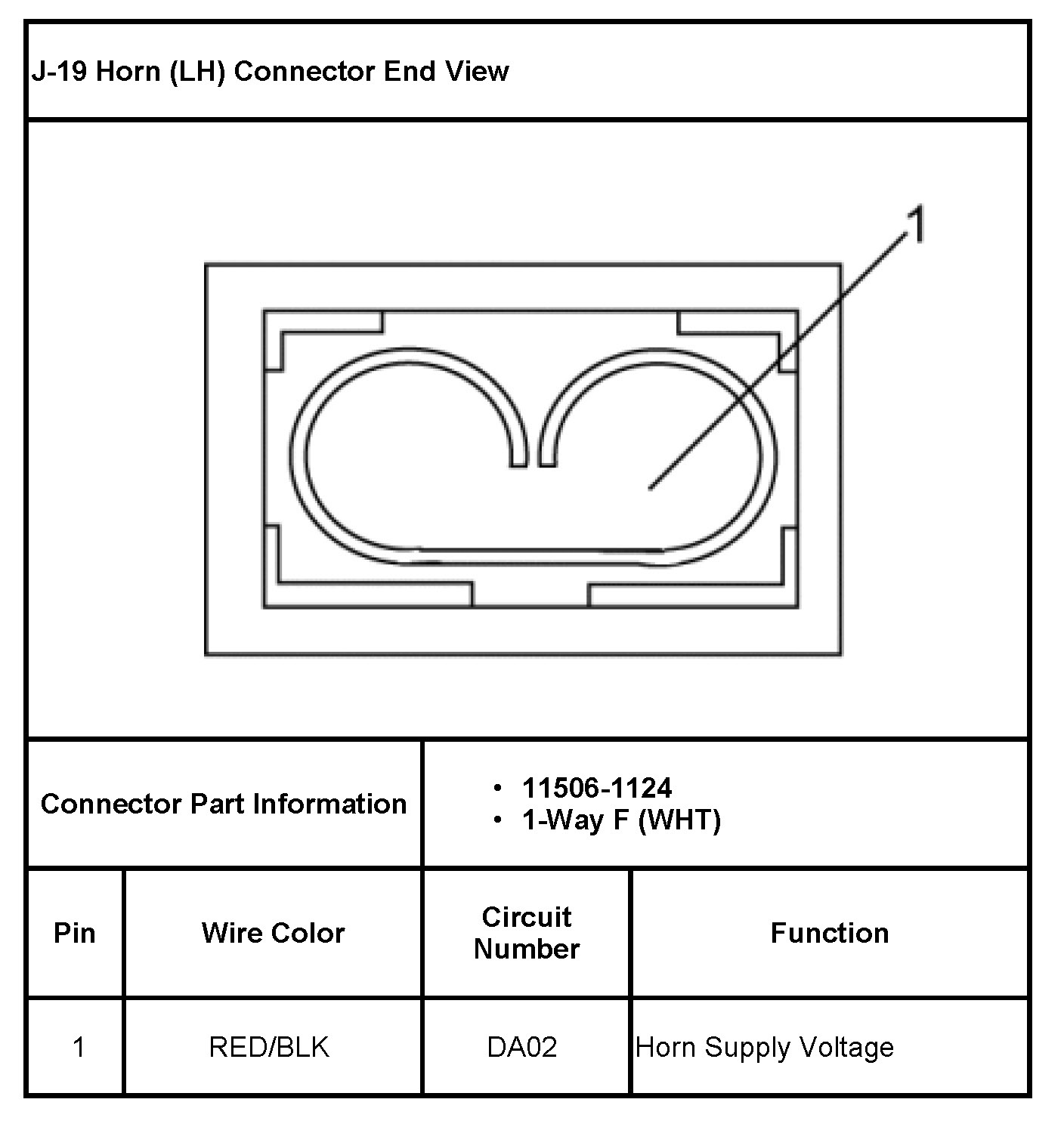

J-19 Horn (LH)

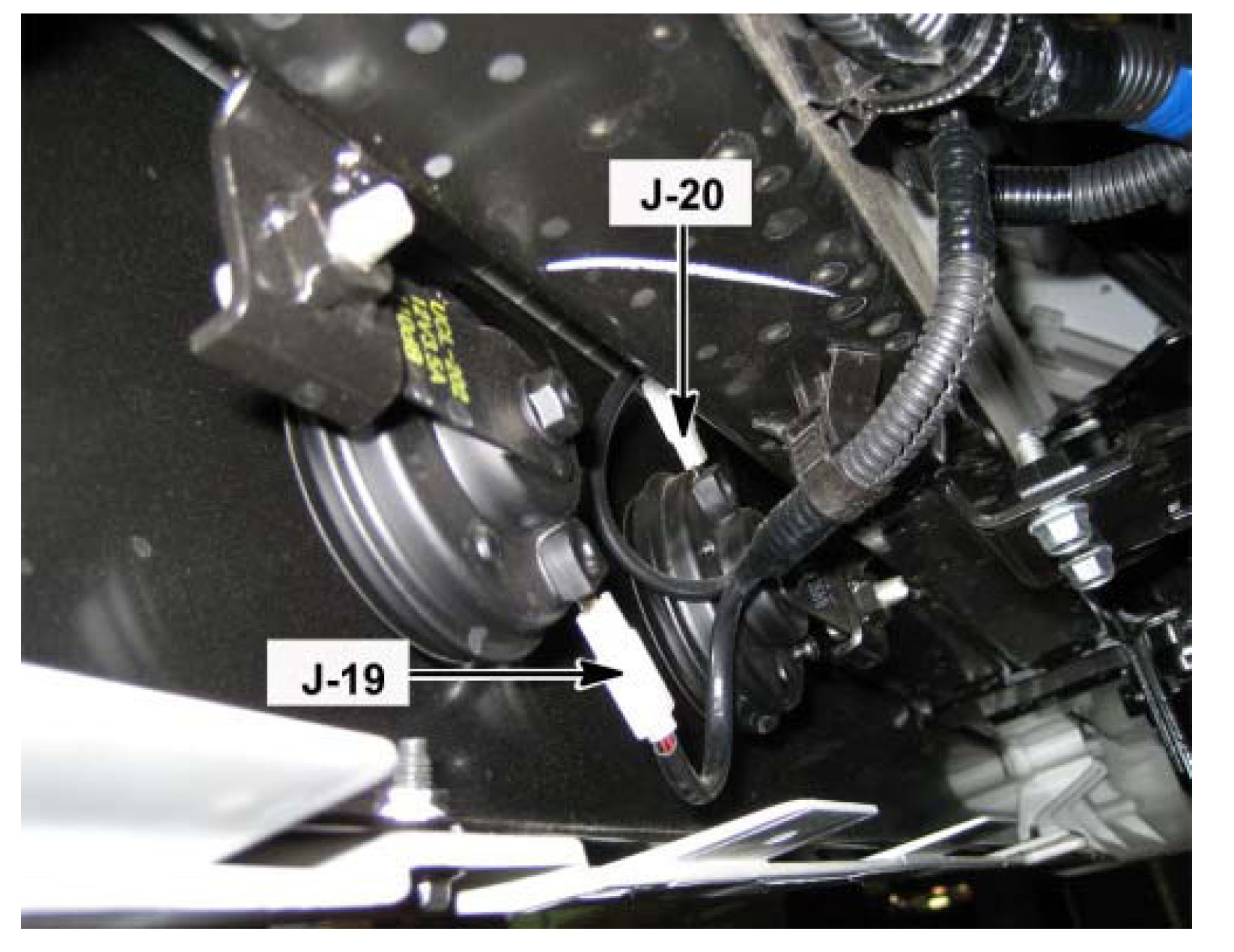

Front of the Vehicle, Behind the Front Bumper
Horn (LH) (J-19)

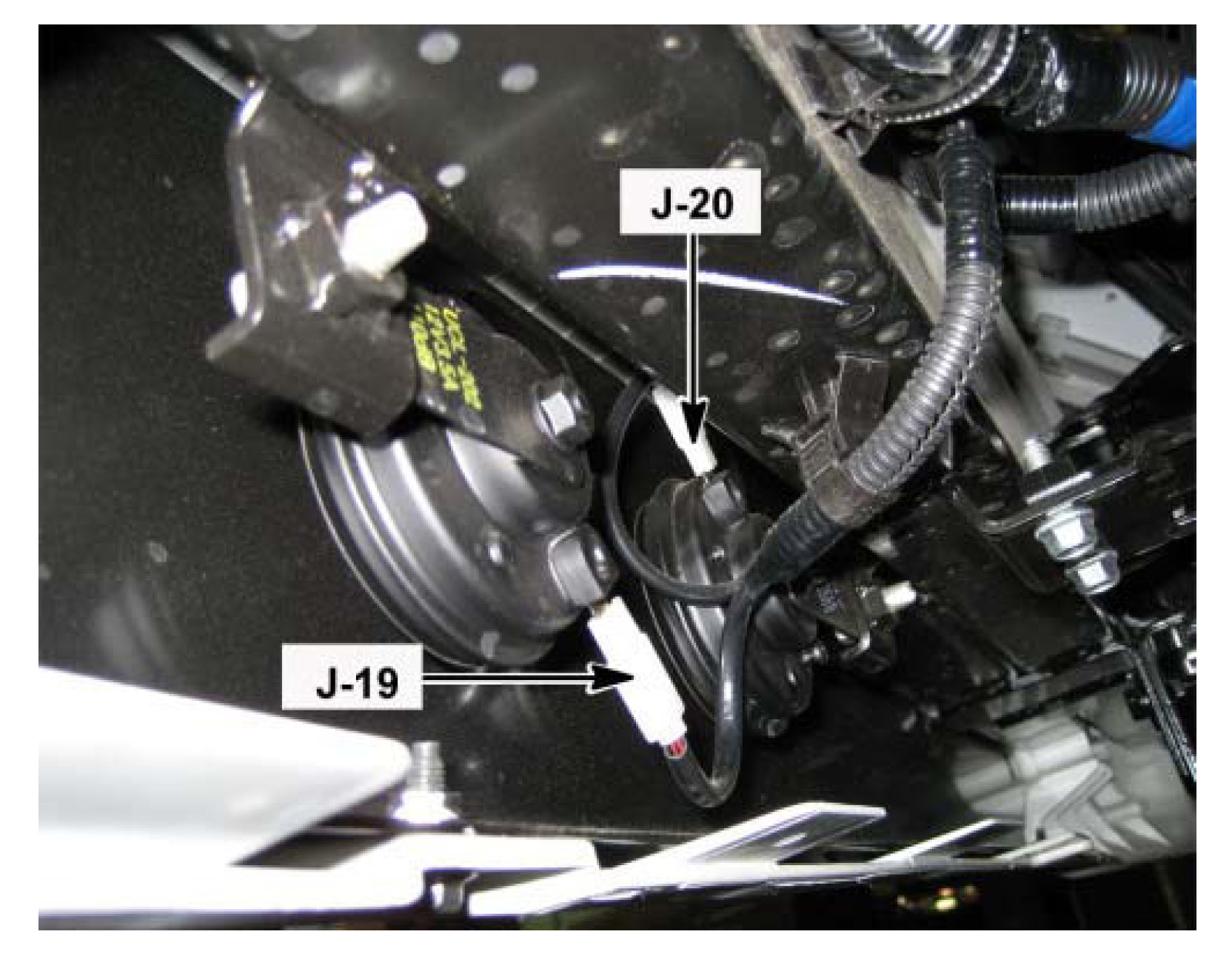

Front of the Vehicle, Behind the Front Bumper
