Isuzu Truck
>>
2013
>>
NPR L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
E-29
E-29

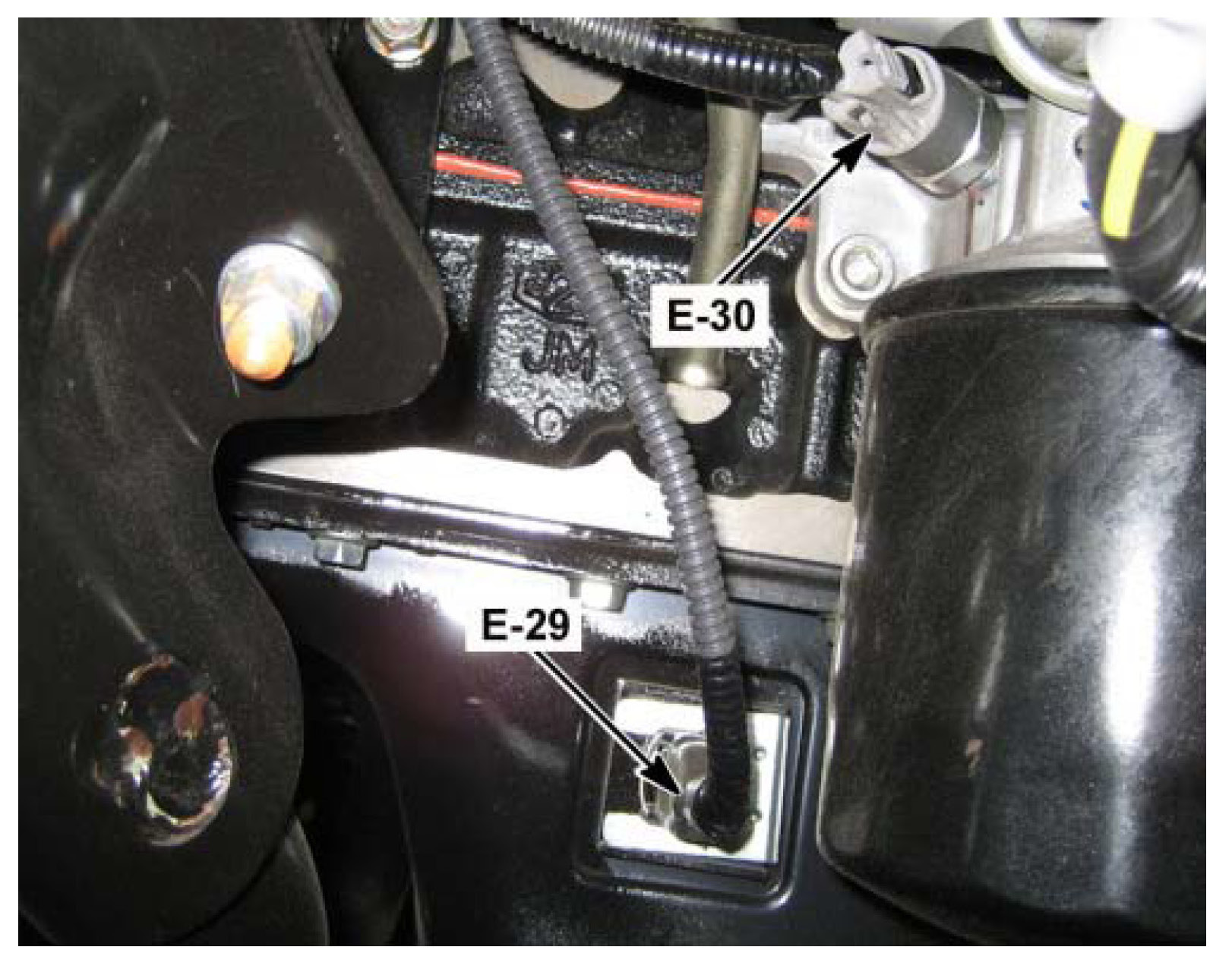

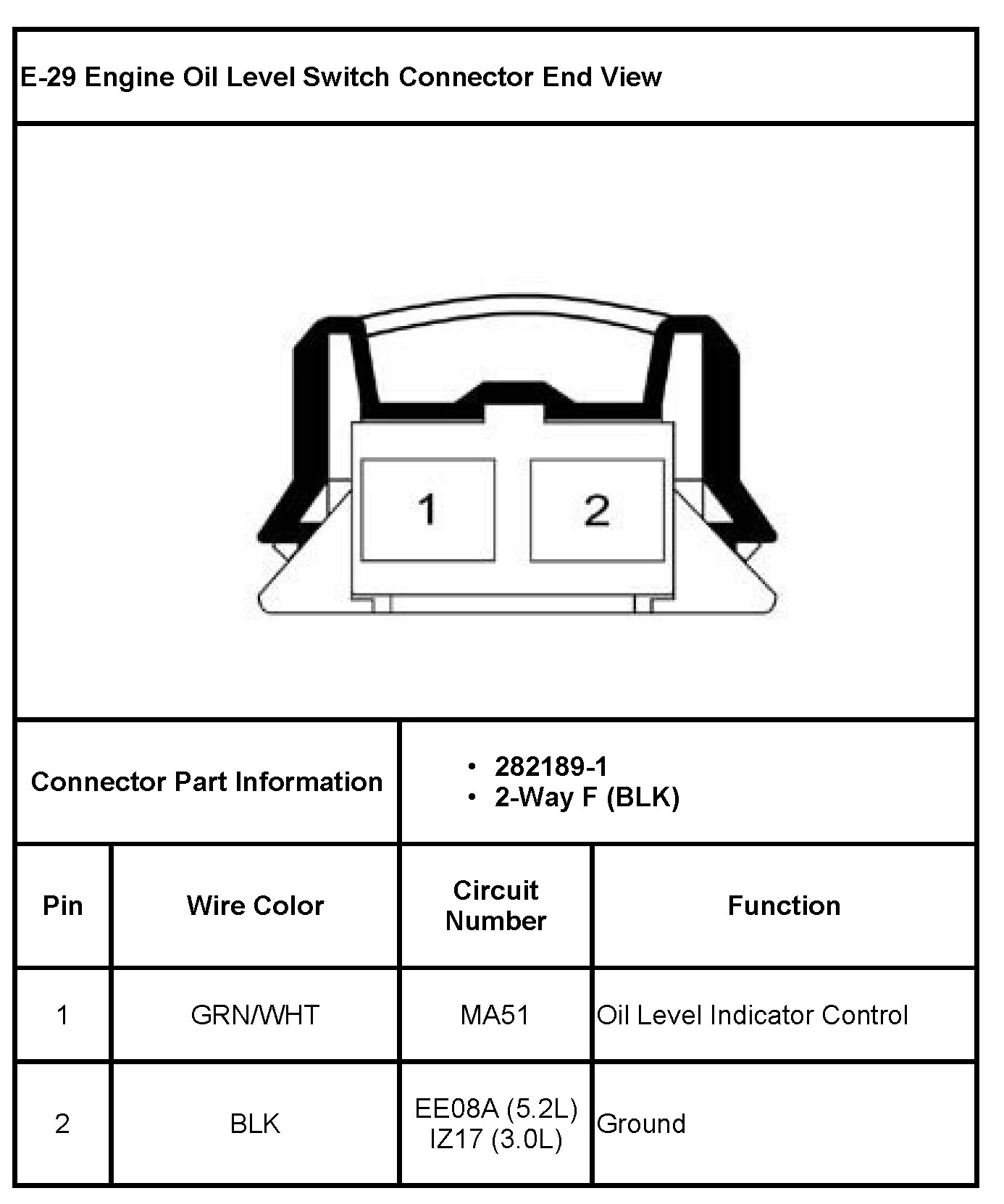

E-29 Engine Oil Level Switch
On the Lower Left Side of the Engine, Near the Center, In the Oil Pan (5.2L)
On the Lower Left Side of the Engine, Near the Center, In the Oil Pan (3.0L)
