Isuzu Truck
>>
2013
>>
NPR L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Engine Data Sensors
>>

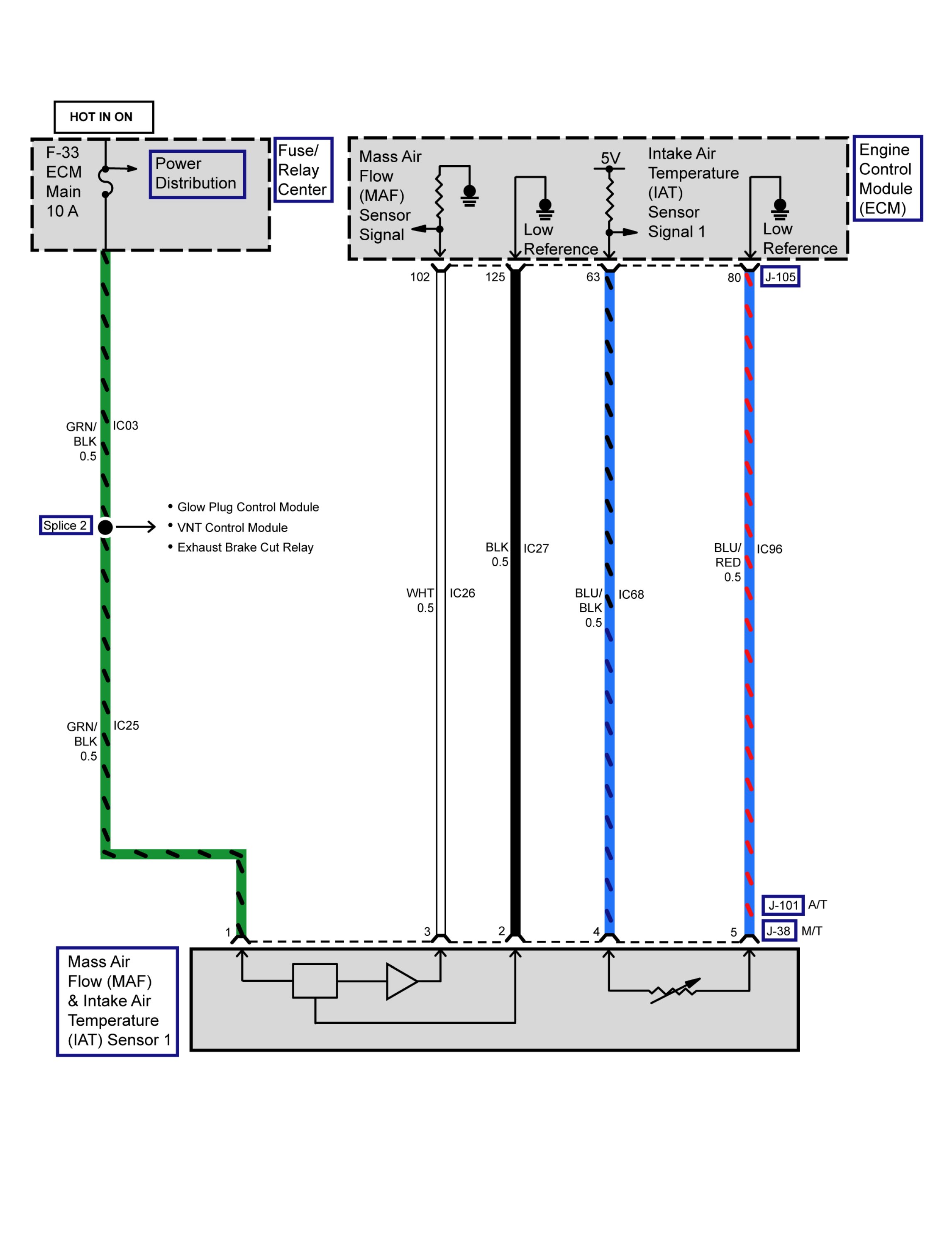

Mass Air Flow and Intake Air Temperature Sensor 1

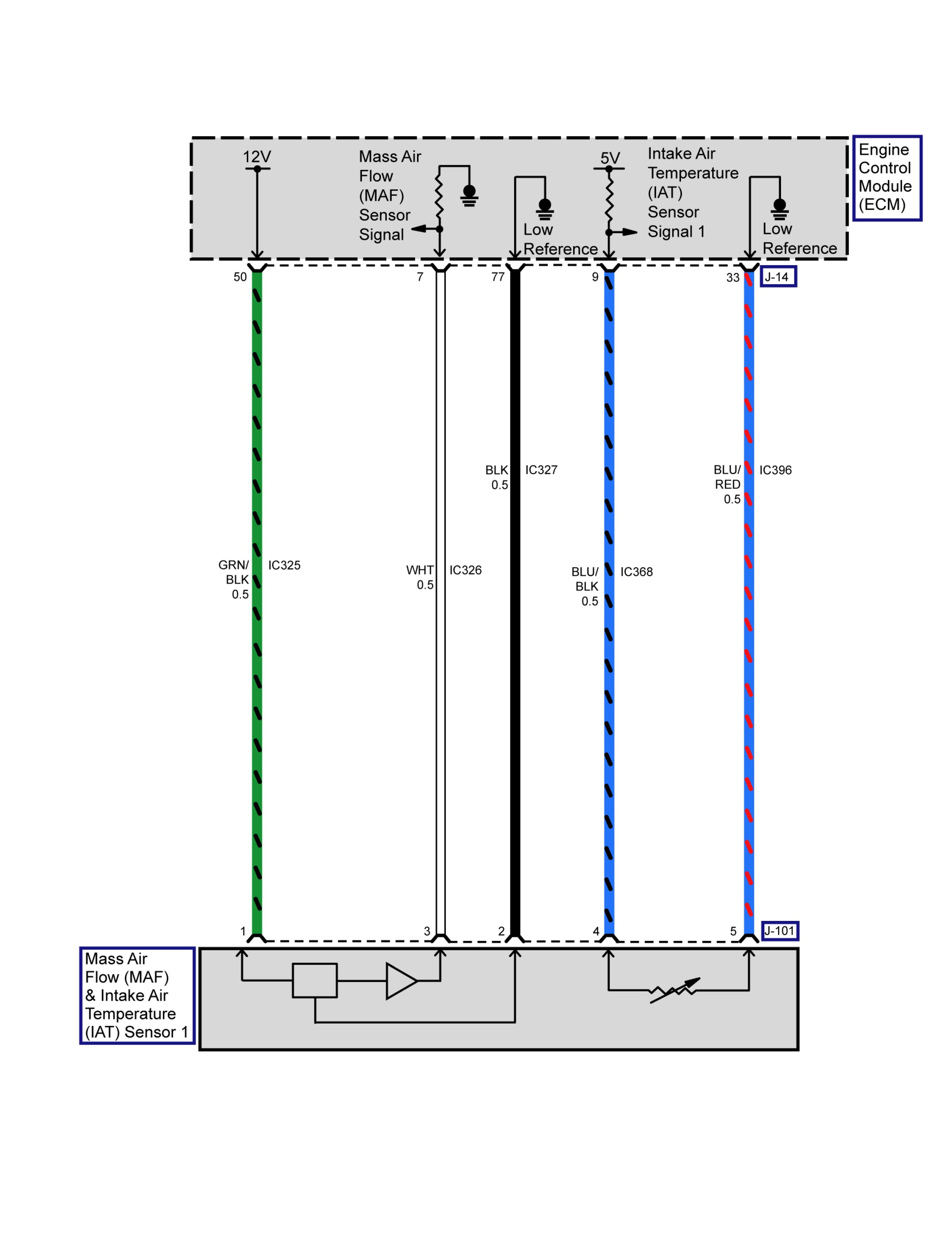

Mass Air Flow and Intake Air Temperature Sensor 1
Mass Air Flow and Intake Air Temperature Sensor 1
