Isuzu Truck
>>
2013
>>
NPR L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Engine Data Sensors
>>

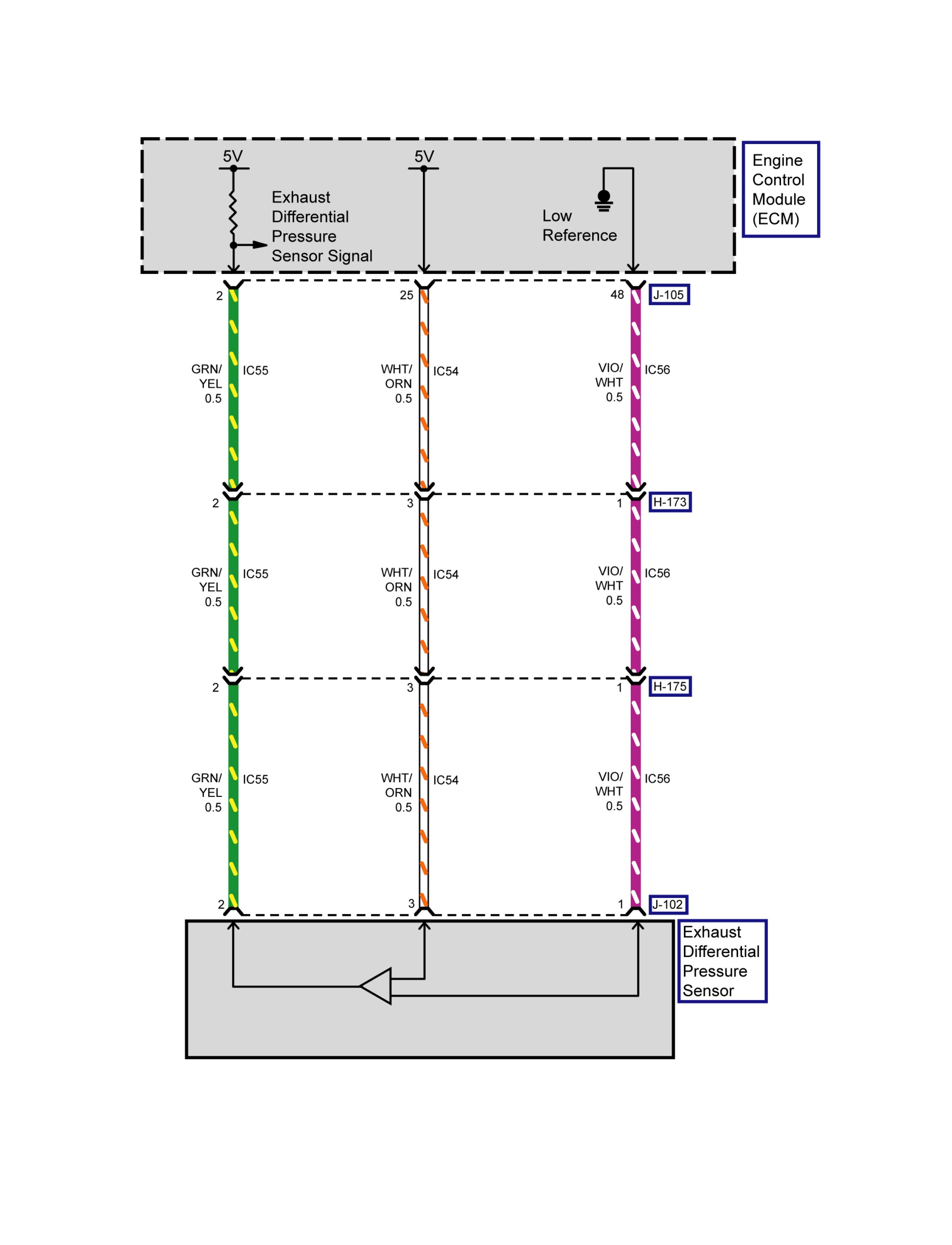

Exhaust Differential Pressure Sensor

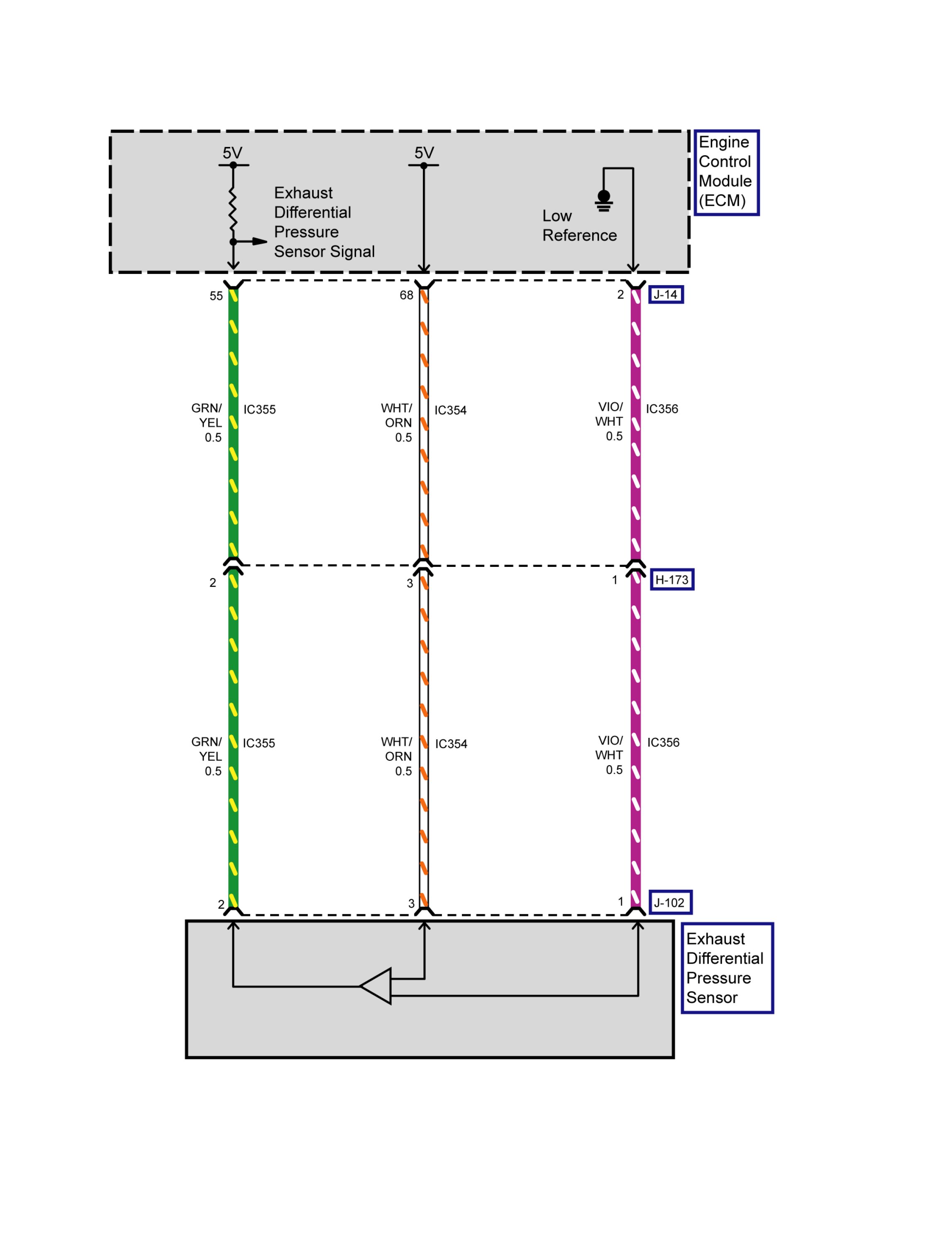

Exhaust Differential Pressure Sensor
Exhaust Differential Pressure Sensor
