Home
>>
Isuzu Truck
>>
2013
>>
NPR L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Data Link Connector
>>

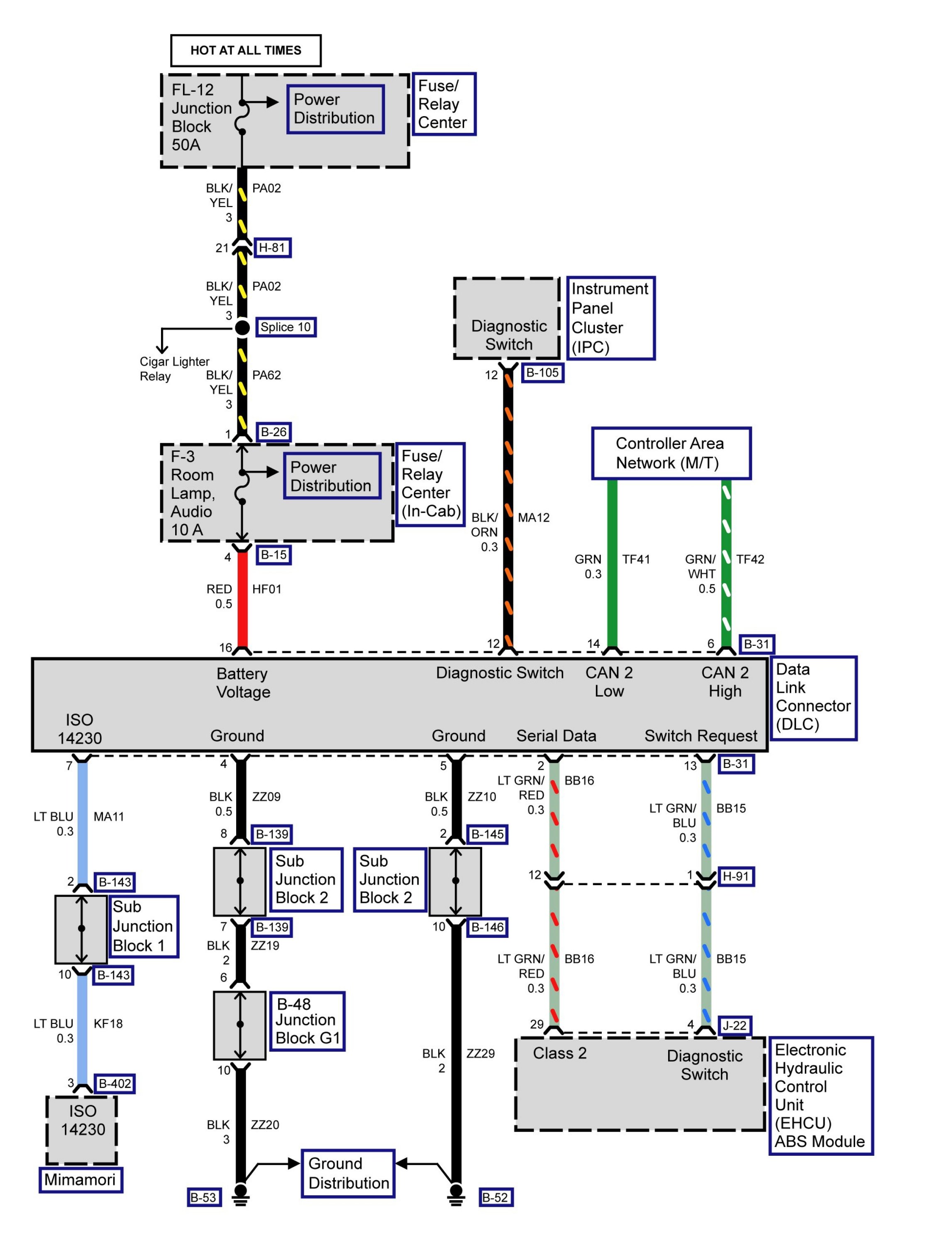

Data Link Connector Power, Ground (M/T)
Data Link Connector Power, Ground (M/T)
Data Link Connector Power, Ground (M/T)
