Isuzu Truck
>>
2013
>>
NPR L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Power Distribution
>>
FL-9
FL-9

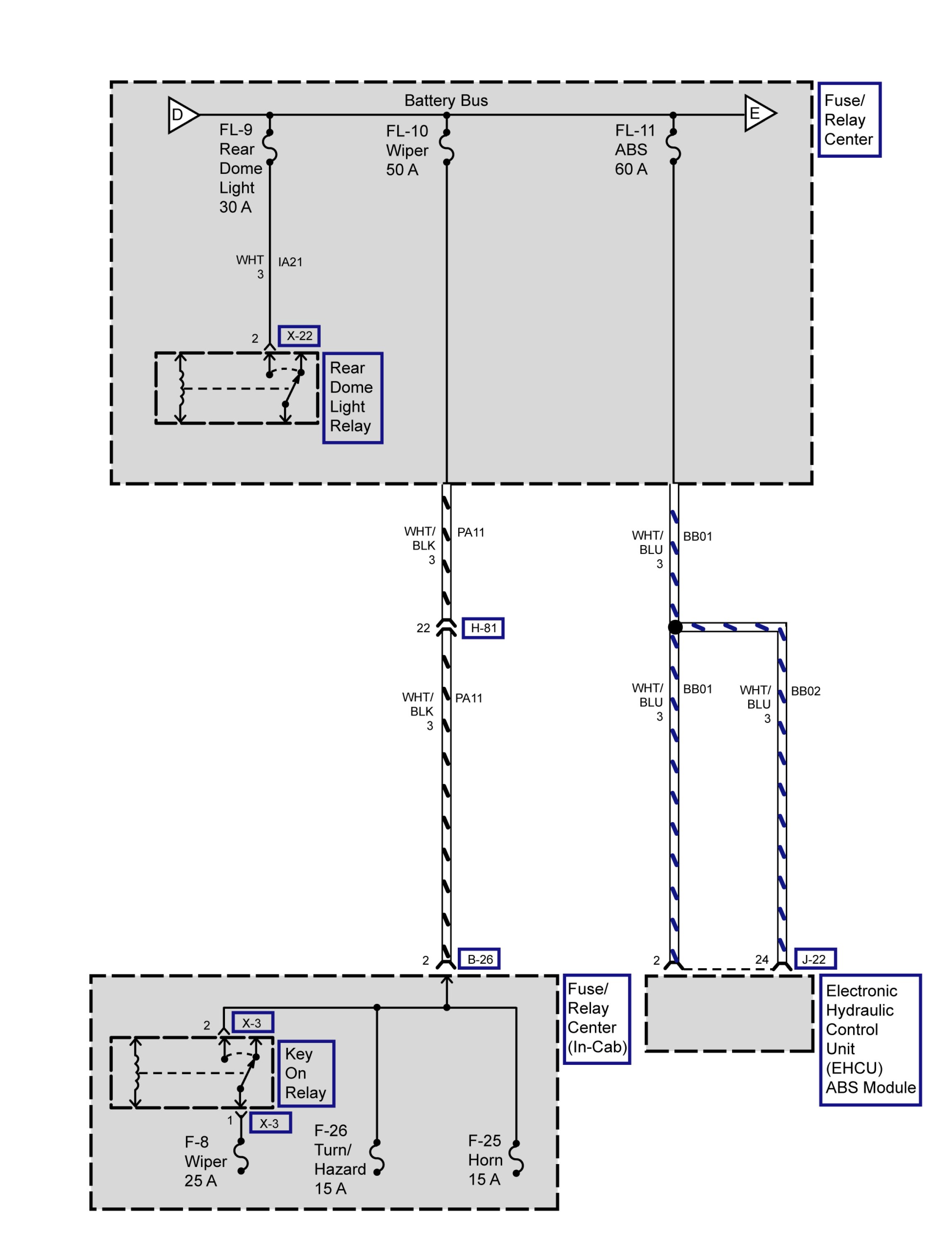

FL-9, FL-10 and FL-11 Fuses
