Home >> Isuzu Truck >> 2013 >> NPR L4-3.0L DSL Turbo (4JJ1) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Power Distribution >> FL-4

FL-4

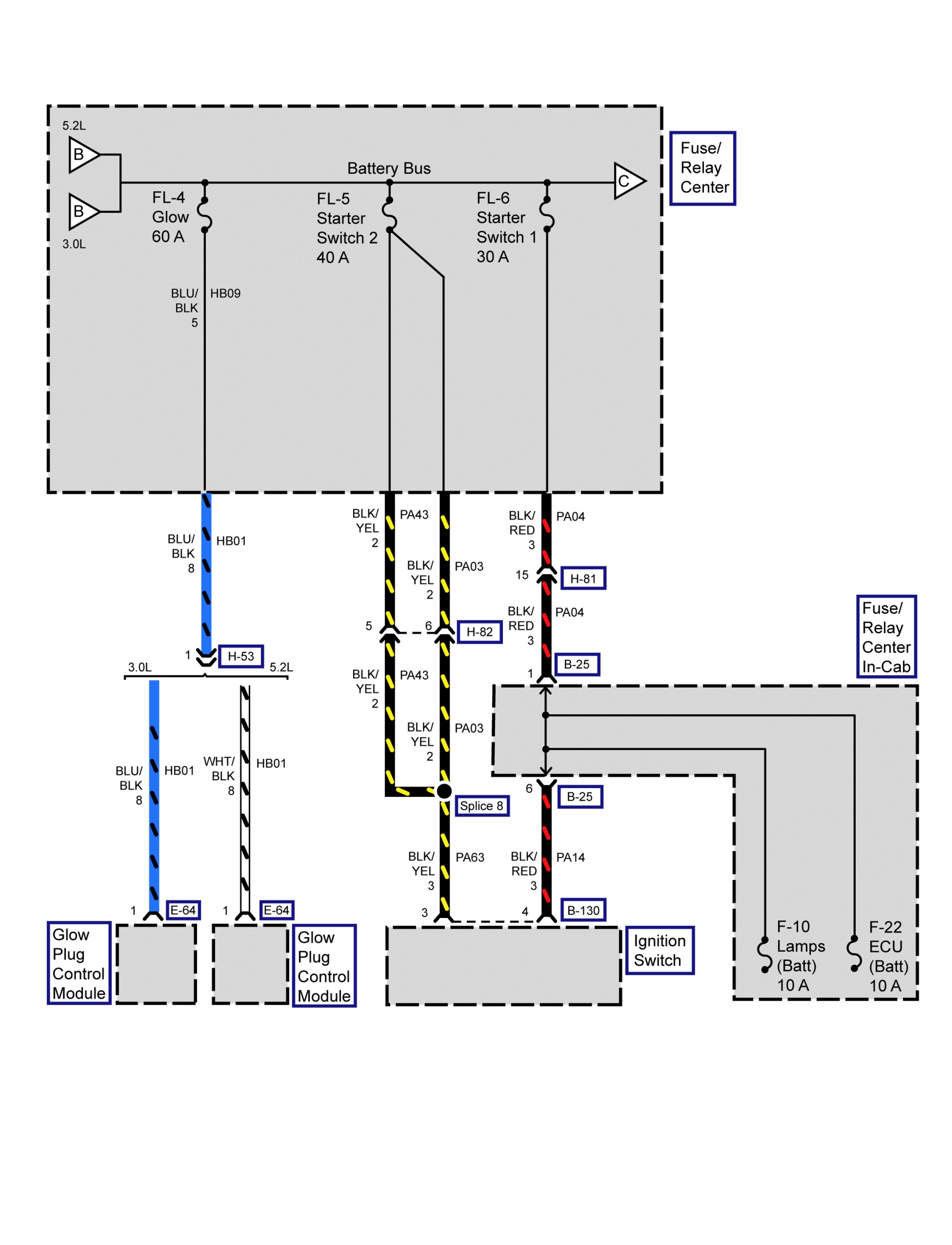

FL-4, FL-5 and FL-6 Fuses
