Isuzu Truck
>>
2009
>>
NPR L4-5.2L DSL Turbo (4HK1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Engine Controls
>>
Idle Speed Selector Sensor

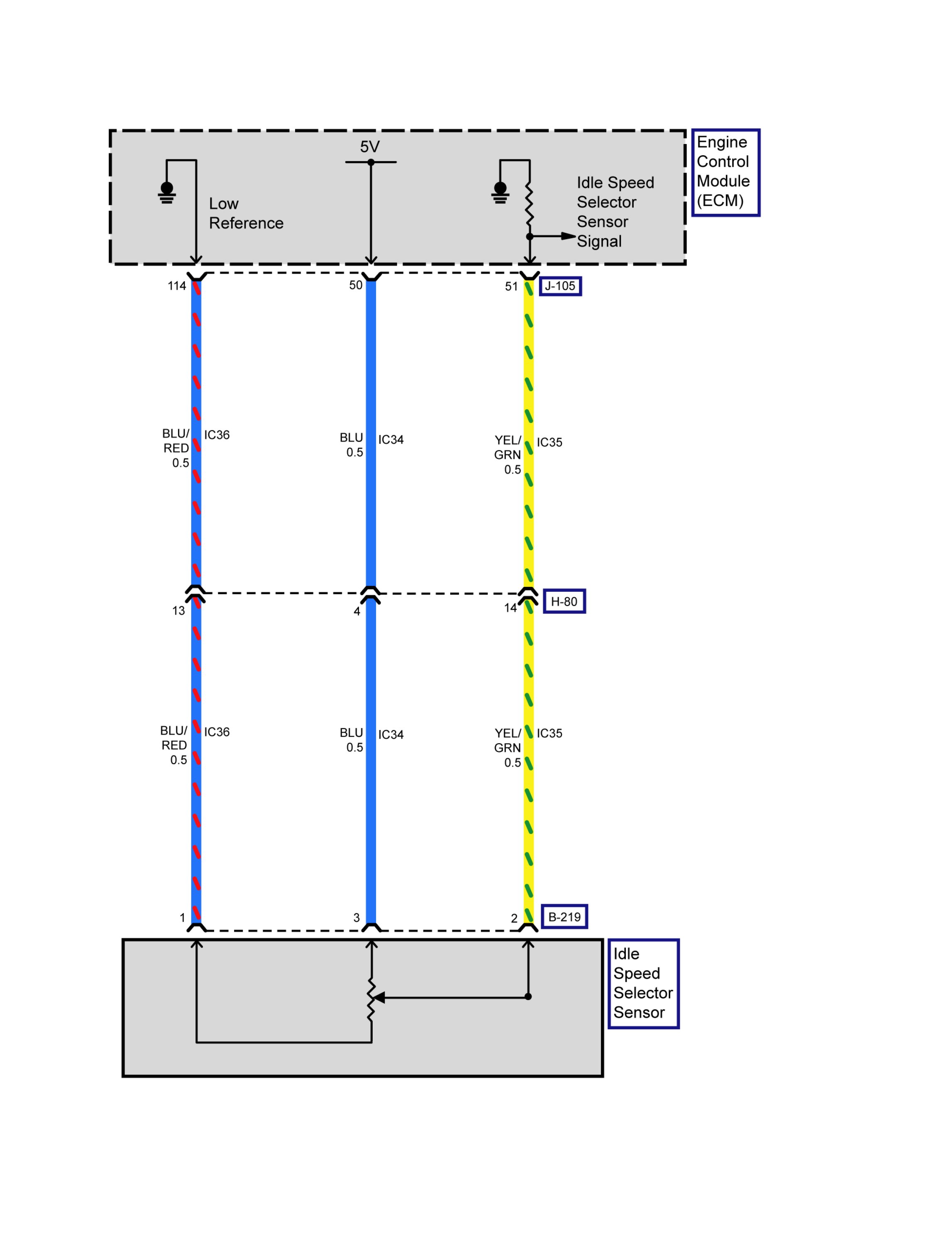

Idle Speed Selector Sensor
Idle Speed
Selector Sensor
