Isuzu Truck
>>
2008
>>
i-370 4WD L5-3.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>
Connector Views
Connector Views

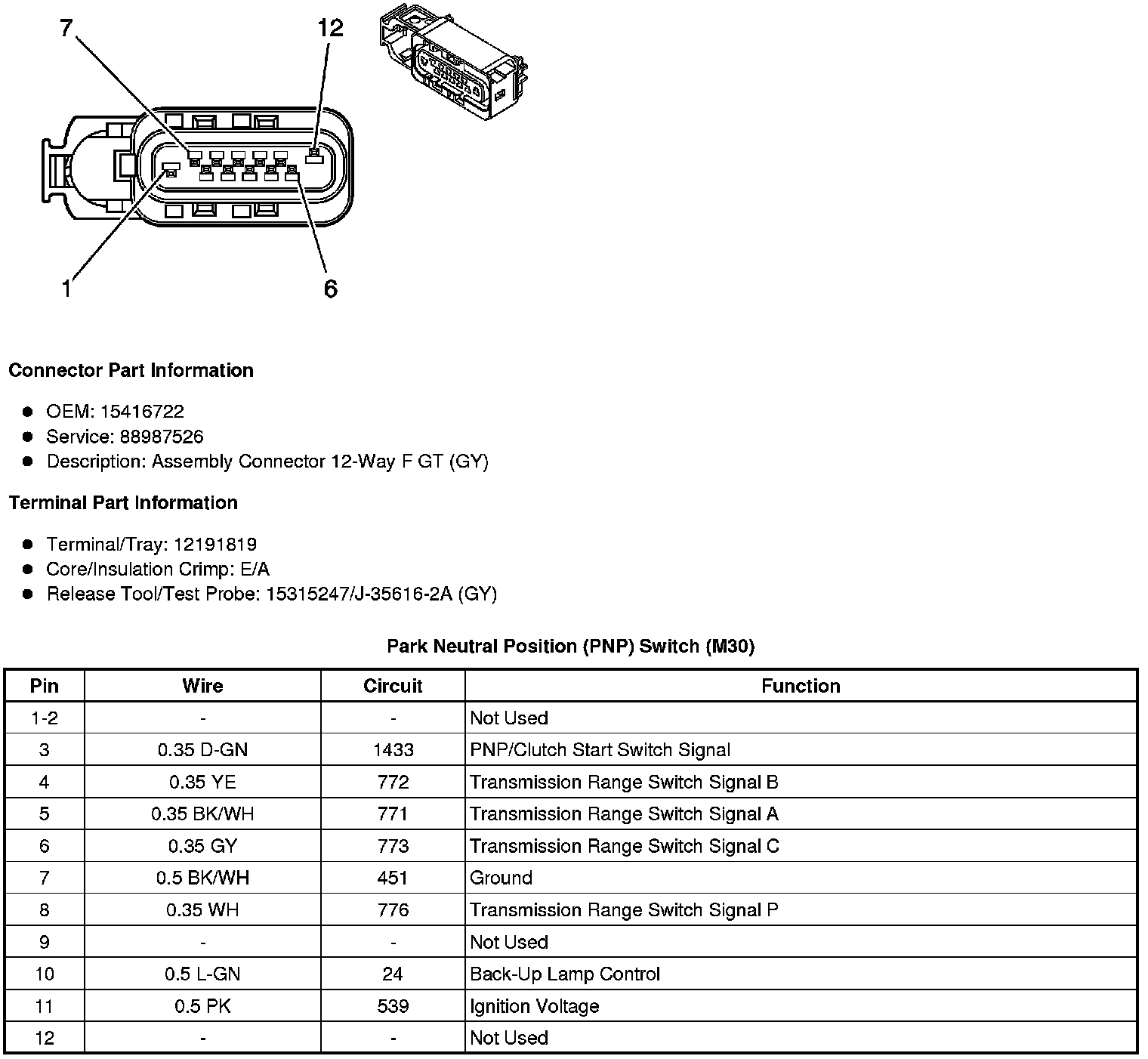

Component Connector End Views
Park Neutral Position (PNP) Switch (M30)
