Isuzu Truck
>>
2008
>>
i-370 2WD L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting and Charging
>>
Multiple Junction Connector
>>
X100 - X199
>>
X109
X109

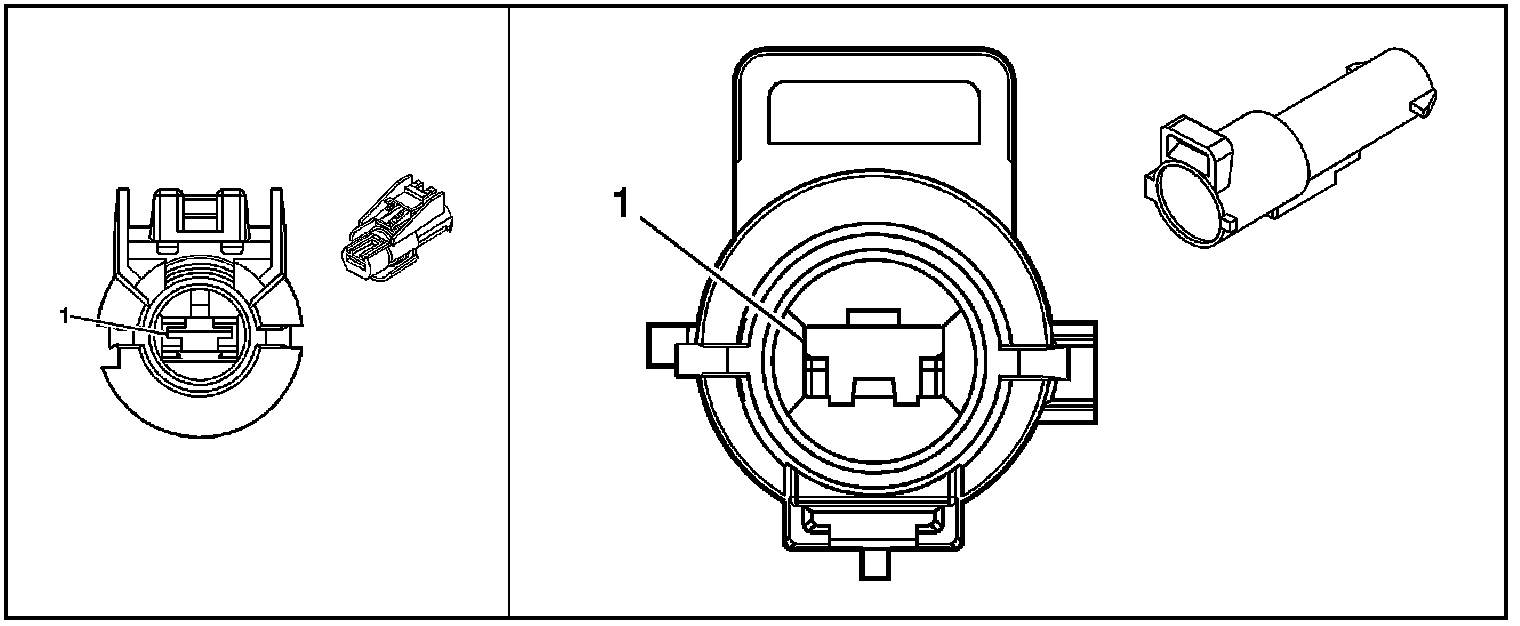

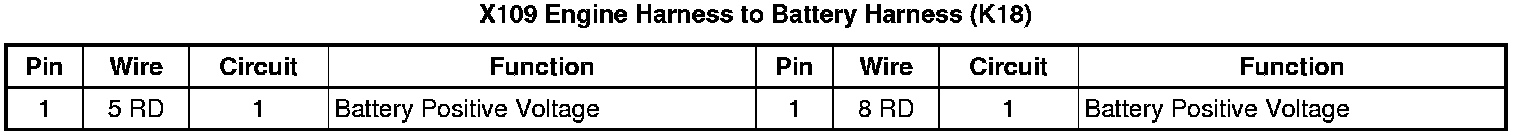

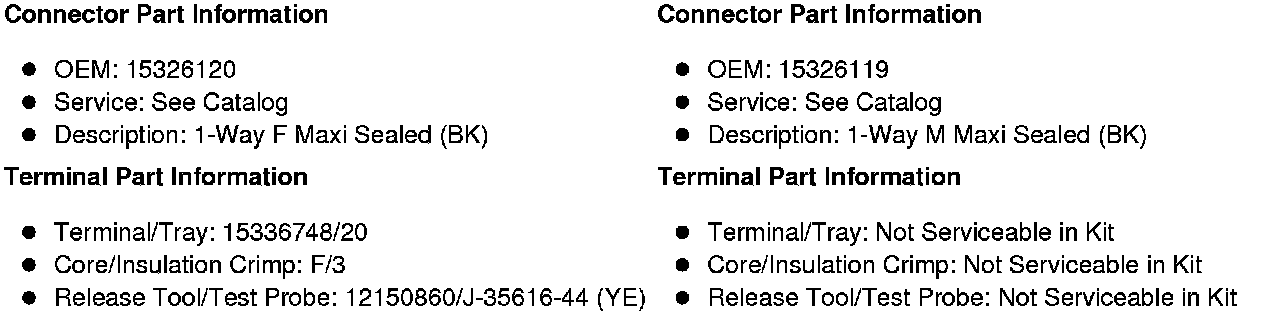

X109 Engine Harness to Battery Harness (K18)
