Isuzu Truck
>>
2008
>>
i-290 2WD L4-2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

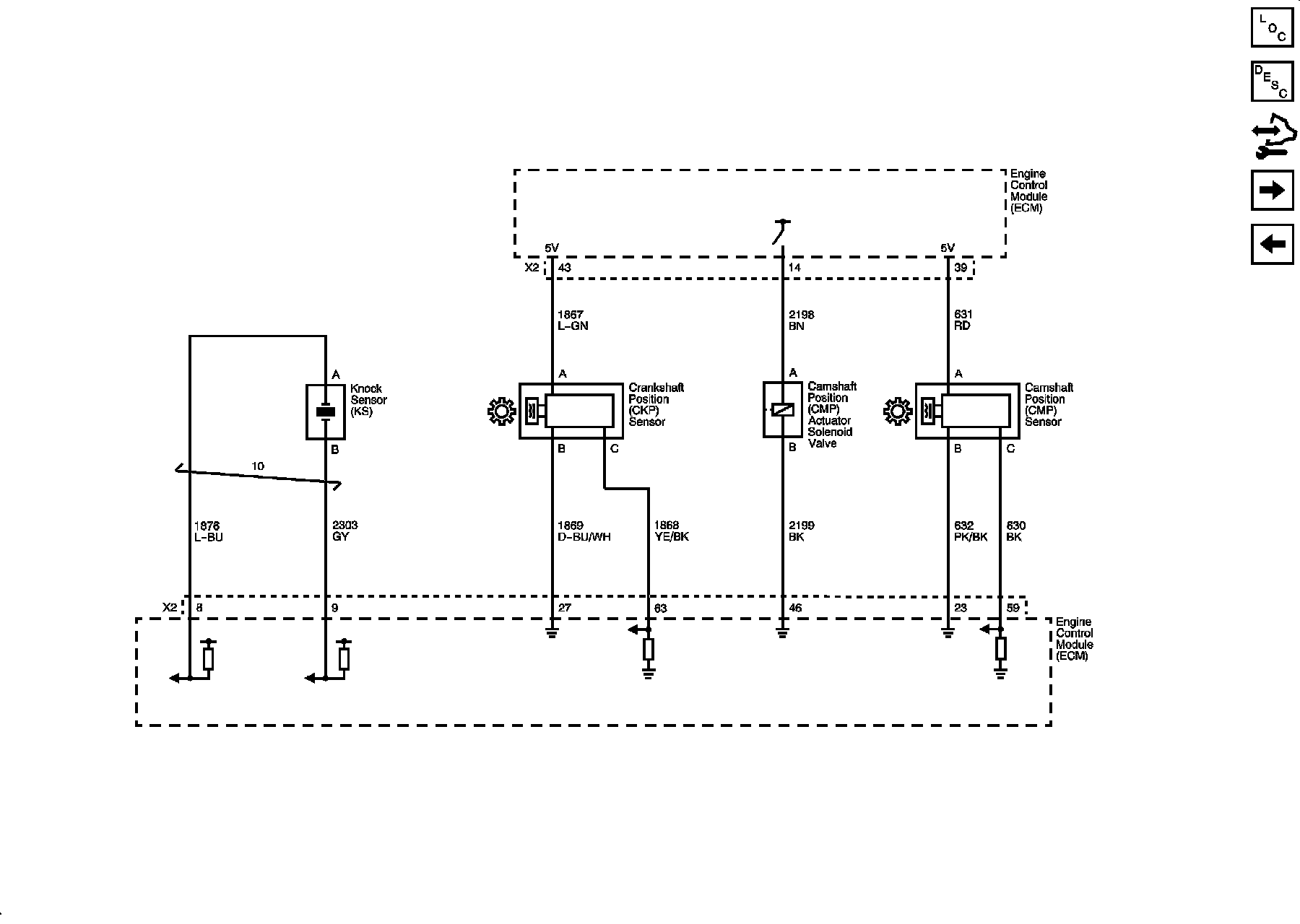

Engine Controls Diagram 5
Engine Controls Diagram 5
Engine Controls Schematics
Ignition Controls -
Ignition System
Coils
Diagram 5:
