Isuzu Truck
>>
2008
>>
i-290 2WD L4-2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting and Charging
>>
Multiple Junction Connector
>>
X100 - X199
>>
X100
X100

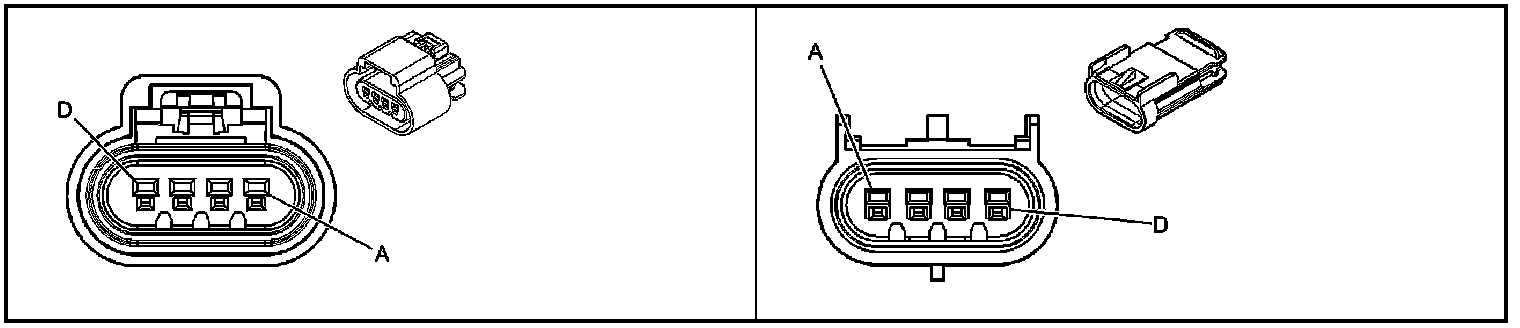

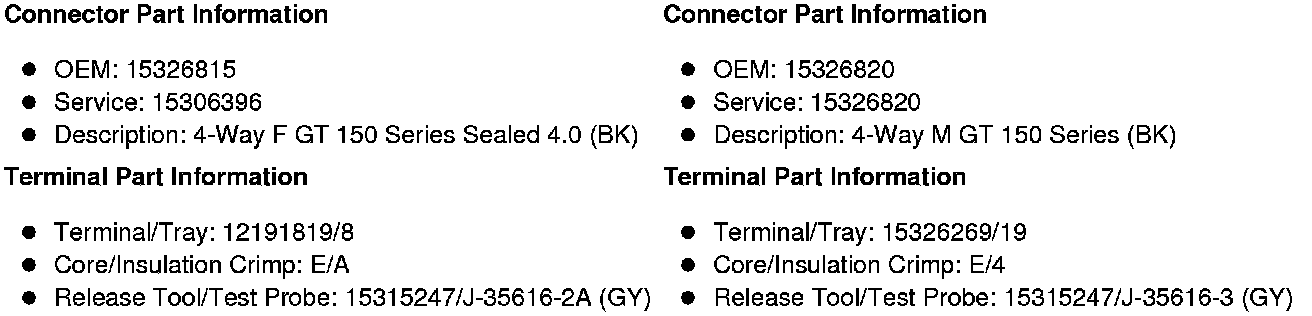

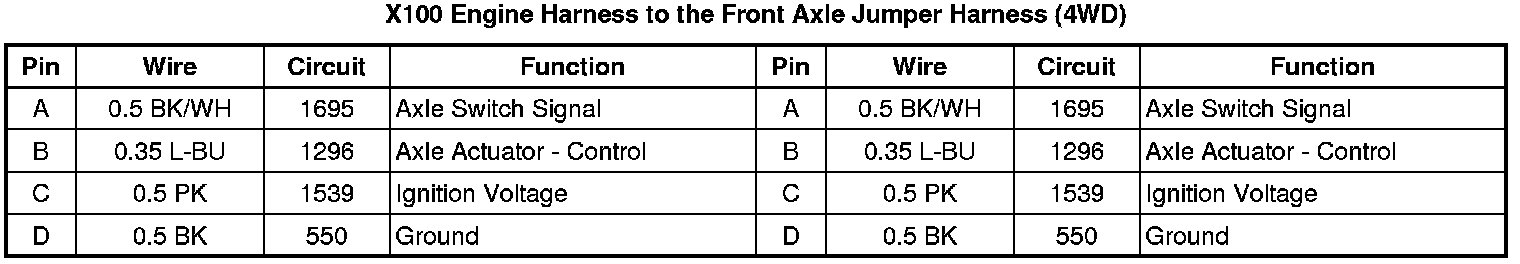

X100 Engine Harness to the Front Axle Jumper Harness (4WD)
