Evaporative Emission Control Canister: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER REPLACEMENT

REMOVAL PROCEDURE

CAUTION:
- Refer to Fuel and EVAP Pipe Caution in Service Precautions.
- Refer to Gasoline/Gasoline Vapors Caution in Service Precautions.

NOTE: Refer to Fuel and Evaporative Emission (EVAP) Hose/Pipe Connection Cleaning Notice in Service Precautions.

1. Raise and support the vehicle. Refer to Vehicle Lifting.




2. Disconnect the electrical connector from the evaporative emission (EVAP) canister vent solenoid valve (4).
3. Disengage the bracket retaining tab and remove the EVAP canister vent solenoid valve (4).
4. Refer to Quick Connect Fitting(s) Service (Plastic Collar) in order to disconnect the following from the EVAP canister (5):
- The EVAP vent hose (1)
- The EVAP chassis hose/pipe (2)
- The EVAP canister vent solenoid valve (4)

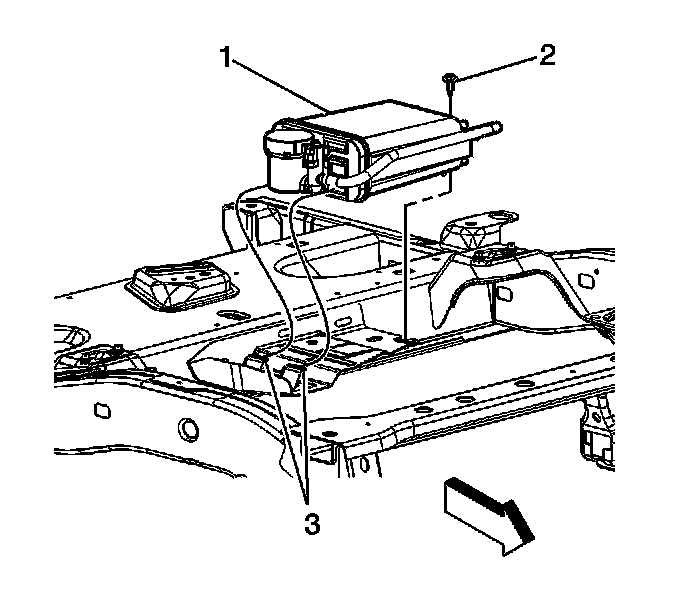

5. Remove the bolt (2) securing the EVAP canister (1) to the crossmember.
6. Disengage the EVAP canister (1) from the crossmember bracket tabs (3).
7. Remove the EVAP canister (1) from the vehicle.

INSTALLATION PROCEDURE




1. Position the EVAP canister (1) to the crossmember bracket tabs (3).
2. Install the bolt (2) securing the EVAP canister (1) to the crossmember.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the EVAP canister bolt to 25 N.m (18 lb ft).




3. Slide the EVAP canister vent solenoid valve (4) over the bracket. Ensure the valve (4) is properly retained to the bracket.
4. Refer to Quick Connect Fitting(s) Service (Plastic Collar) in order to connect the following to the EVAP canister (5):
- The EVAP vent hose (1)
- The EVAP chassis hose/pipe (2)
- The EVAP canister vent solenoid valve (4)
5. Connect the electrical connector to the EVAP canister vent solenoid valve (4).
6. Lower the vehicle.
