Isuzu Truck
>>
2006
>>
i-350 L5-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
LR Door (Extended/Crew Cab)
LR Door (Extended/Crew Cab)

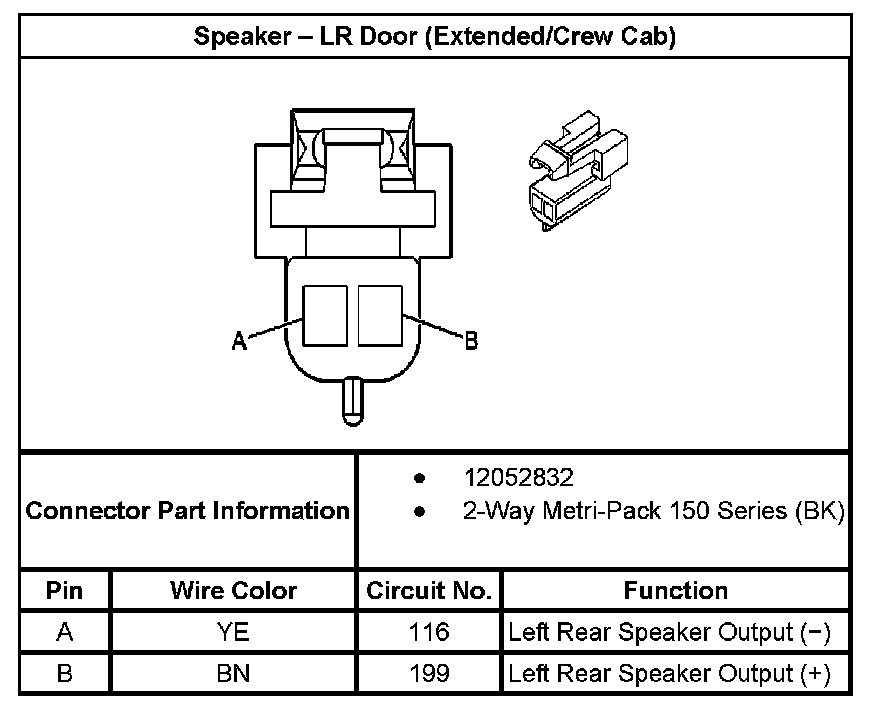

Speaker - LR Door (Extended/Crew Cab):
