Home
>>
Isuzu Truck
>>
2006
>>
i-350 L5-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C200 - C299
>>
C275
C275

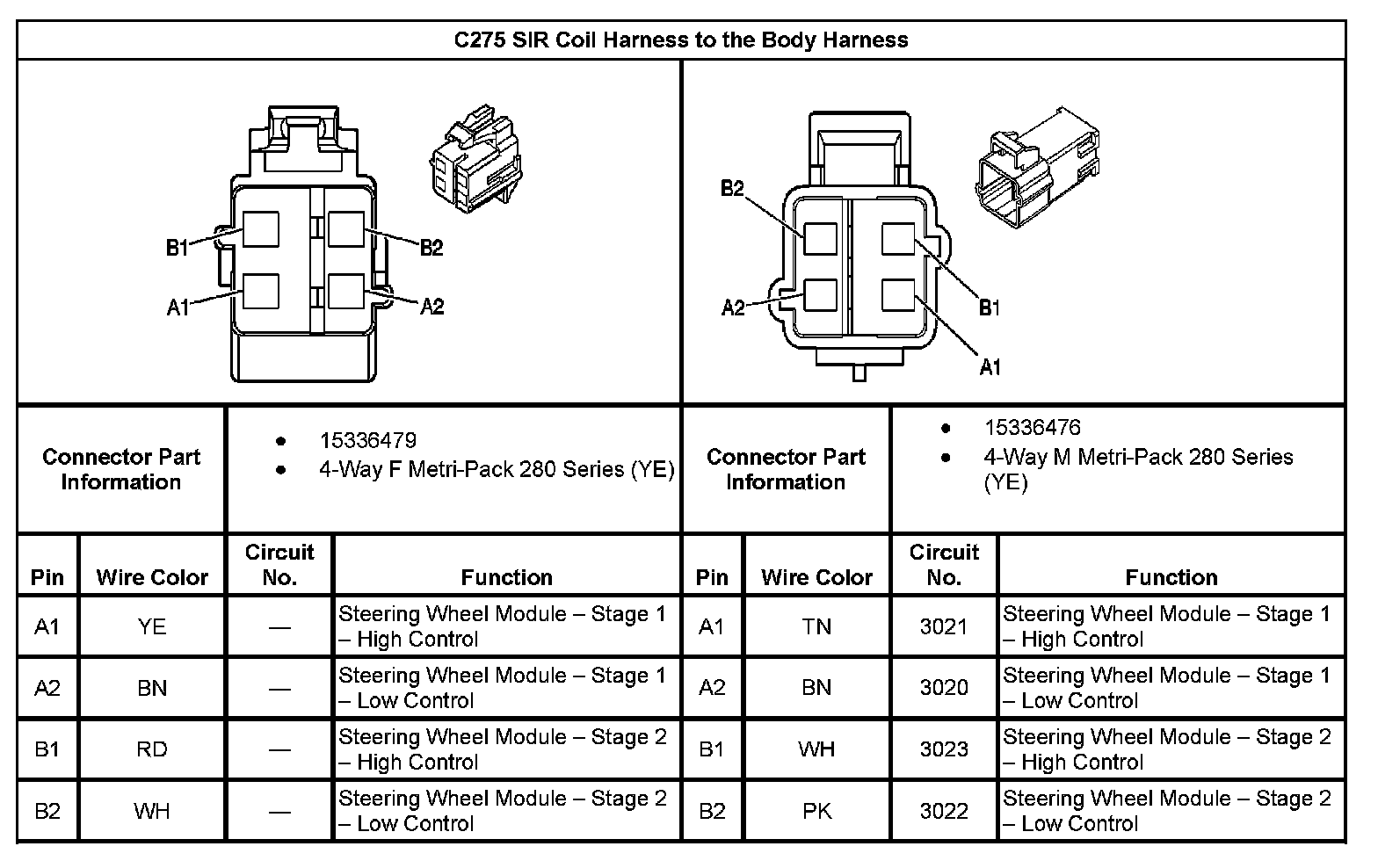

C275 SIR Coil Harness to the Body Harness:

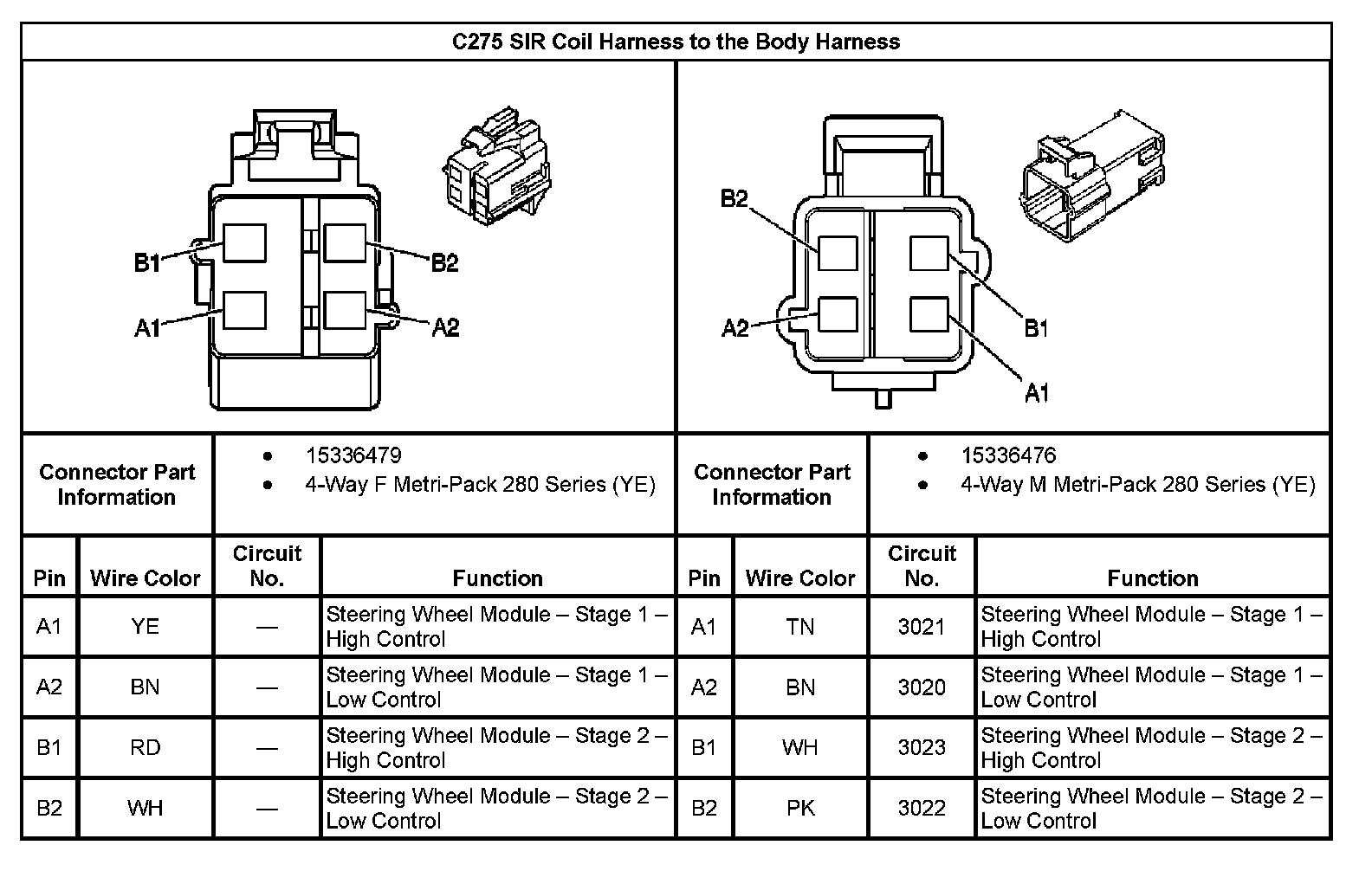

C275 SIR Coil Harness To The Body Harness:
